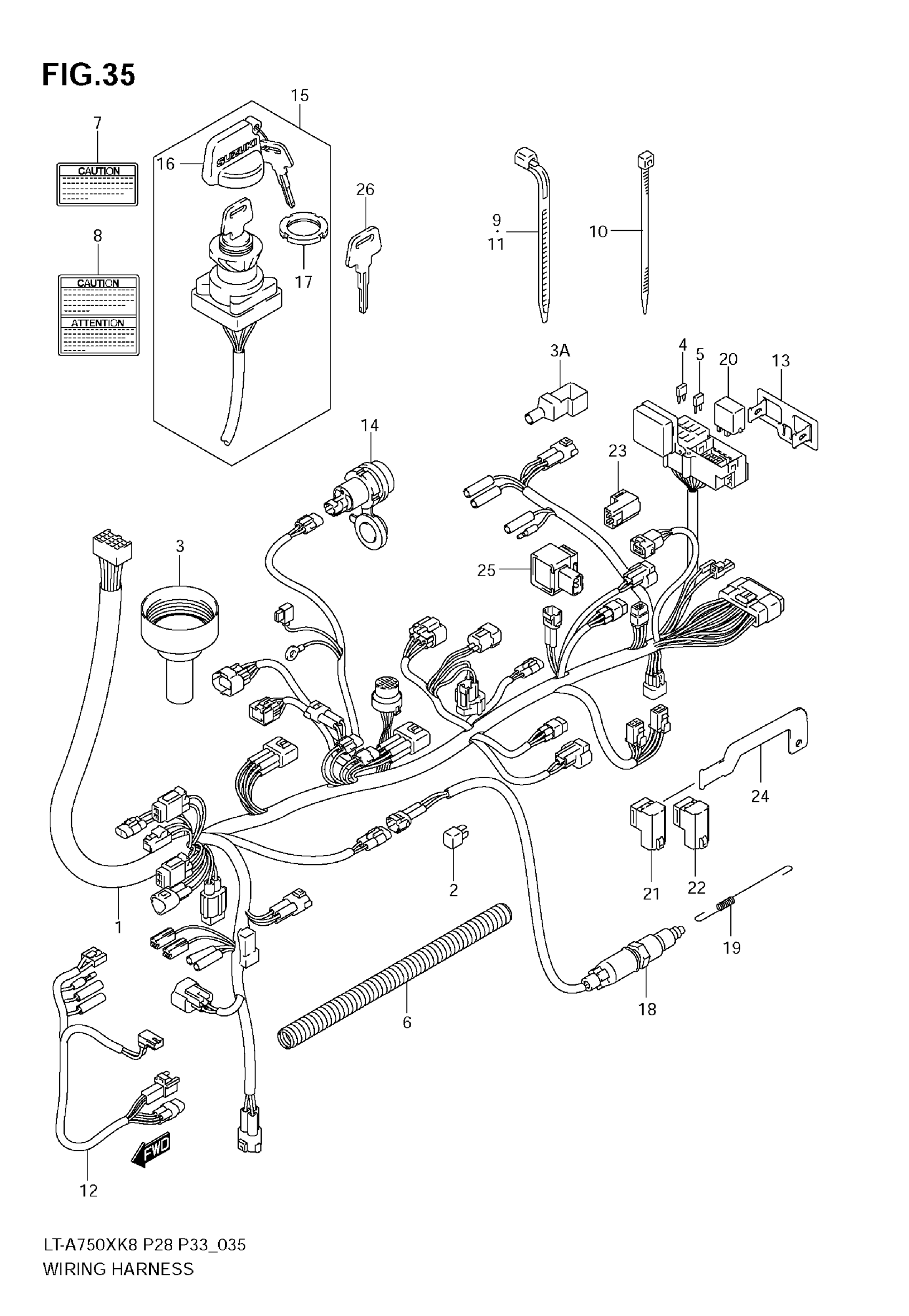

Suzuki LT-A750X (2009) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2 - 5

36610-31G61

$448.47

2

RECTIFIER ASSY

32800-16A00

$23.07

3

COVER

36618-31G00

Unavailable

3A

BOOT

36618-31G10

$9.30

4

FUSE (10A)

09481-10501

$2.06

5

FUSE (15A)

09481-15501

$2.02

6

GUIDE, WIRING HARNESS

36619-31G00

$18.08

7

LABEL, CAUTION MAX AMP | E33

38852-09F30

Unavailable

8

LABEL, CAUTION MAX AMP | E28

38852-03G10

Unavailable

9

CLAMP (L:95)

09407-11401

$2.63

9

CLAMP (L:125)

09407-14403

$2.26

9

CLAMP (L:235)

09407-25401

$4.66

10

CLAMP (L:145)

09407-14407

$3.57

11

CLAMP (L:190)

09407-19401

$3.05

12

WIRE, FRONT BRAKE SW LEAD

36857-31G00

$56.05

13

BRACKET, FUSE

36744-31G00

Unavailable

14

TERMINAL,POWER SOURCE (12V,12

38850-03G10

$17.81

15

SWITCH ASSY,IGN | Includes Item(s) 16 - 17 This part replaces 37110-31G00.

37110-31G20

$91.75

16

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

17

.NUT,IGNITION SWITCH

37112-24500

$11.48

18

SWITCH ASSY,STOP LAMP

37740-38F01

$115.27

19

SPRING, STOP LAMP

09443-06080

$4.73

20

RELAY,NEUTRAL START

38730-09F00

$46.55

21

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$38.13

22

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$38.13

23

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$38.13

24

BRACKET, RELAY

38741-31G20

Unavailable

25

RELAY ASSY, DRIVE

38750-31G00

$119.65

26

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

26

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

26

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$8.07

26

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$8.07
