2009 Suzuki LT-A750X Throttle Body Diagram

← All diagrams

Find the part on the Throttle Body diagram for your 2009 Suzuki LT-A750X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

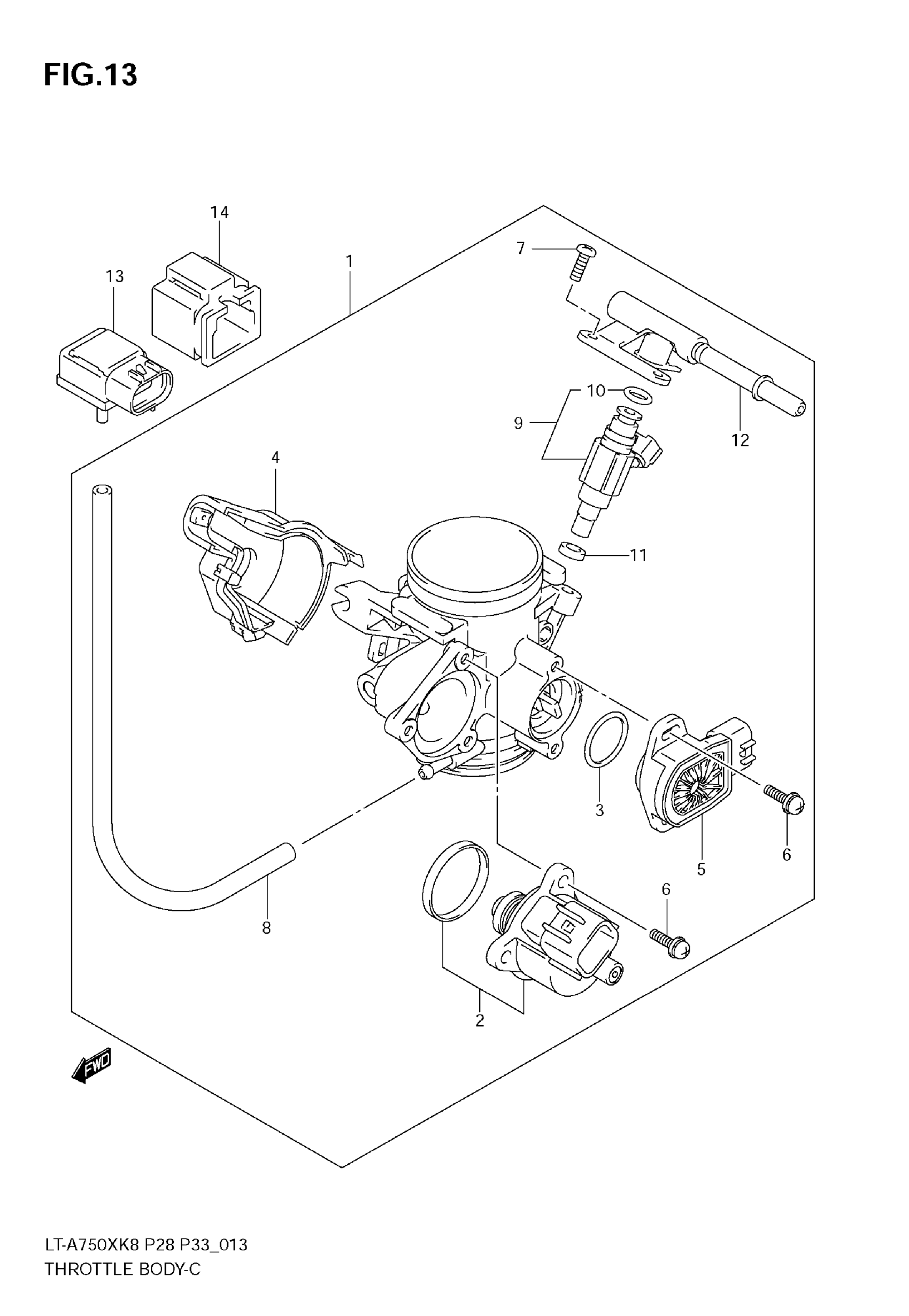

2009 Suzuki LT-A750X Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY,THROT | Includes Item(s) 2 - 12 This part replaces 13400-31G00.

13400-31G02

1
Out of stock

2

MOTOR, ISC STEPPING

13520-31G00

1
Out of stock

3

.O-RING

13575-31G00

1
Out of stock

4

COVER

13578-31G00

1
Out of stock

5

SENSOR ASSY

13580-31G00

1
Out of stock

6

SCREW

13601-20G00

5
Out of stock

7

SCREW

13602-06128

2
Out of stock

8

HOSE This part replaces 13683-10F70.

13683-10F71

1
Out of stock

9

INJECTOR ASSY This part replaces 15710-31G00.

15710-31G01

1
Out of stock

10

O RING

15717-16G00

1
Out of stock

11

SEAL

15722-29G00

1
Out of stock

12

DELIVERY PIPE

15731-31G00

1
Out of stock

13

SENSOR, AIR PRESSURE

15620-10G00

1
Out of stock

14

HOLDER, AIR PRESSURE

15625-10G00

1
Out of stock
