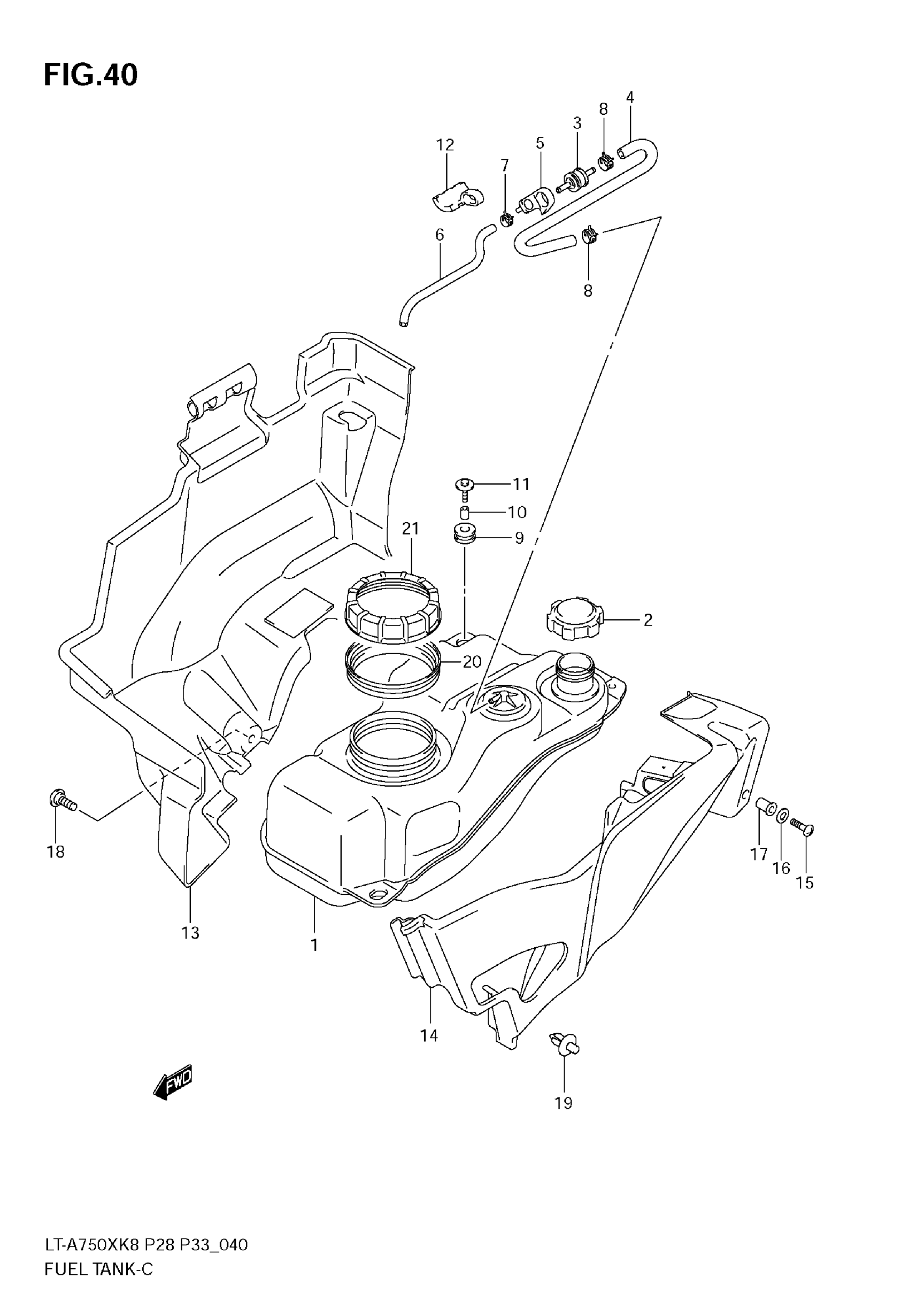

Suzuki LT-A750X (2009) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL This part replaces 44100-31G10.

44100-31G21

$268.05

2

CAP ASSY, FUEL TANK

44200-31G00

$50.07

3

VALVE,2 WAY CHECK

85451-75100

$46.03

4

HOSE,CHECK VALV This part replaces 44425-31G00.

44425-31G01

$13.62

5

CUSHION, CHECK VALVE This part replaces 44881-31G00.

44881-31G01

$4.95

6

HOSE, TANK BREATHER This part replaces 44434-31G10.

44434-31G11

$50.95

7

CLIP

09401-08409

$2.30

8

CLIP (ID:9.4,H:8)

09401-09403

$2.09

9

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

$5.69

10

SPACER

09180-06293

$2.68

11

BOLT

09116-06050

$2.37

12

CUSHION, SIDE

44541-31G00

Unavailable

13

COVER,F/TANK LO This part replaces 44390-31G20.

44390-31G60

$122.78

14

COVER, OUTER

44391-31G00

$114.65

15

SCREW

02142-0520B

$1.82

16

WASHER

09160-05046

$1.90

17

NUT

09159-05019

$6.63

18

SCREW

09139-06137

$2.80

19

CLIP

09409-07333

$2.37

20

PACKING,FUEL PU This part replaces 44596-10G00.

44596-10G01

$20.42

21

RETAINER, FUEL PUMP

44597-10G00

$40.32
