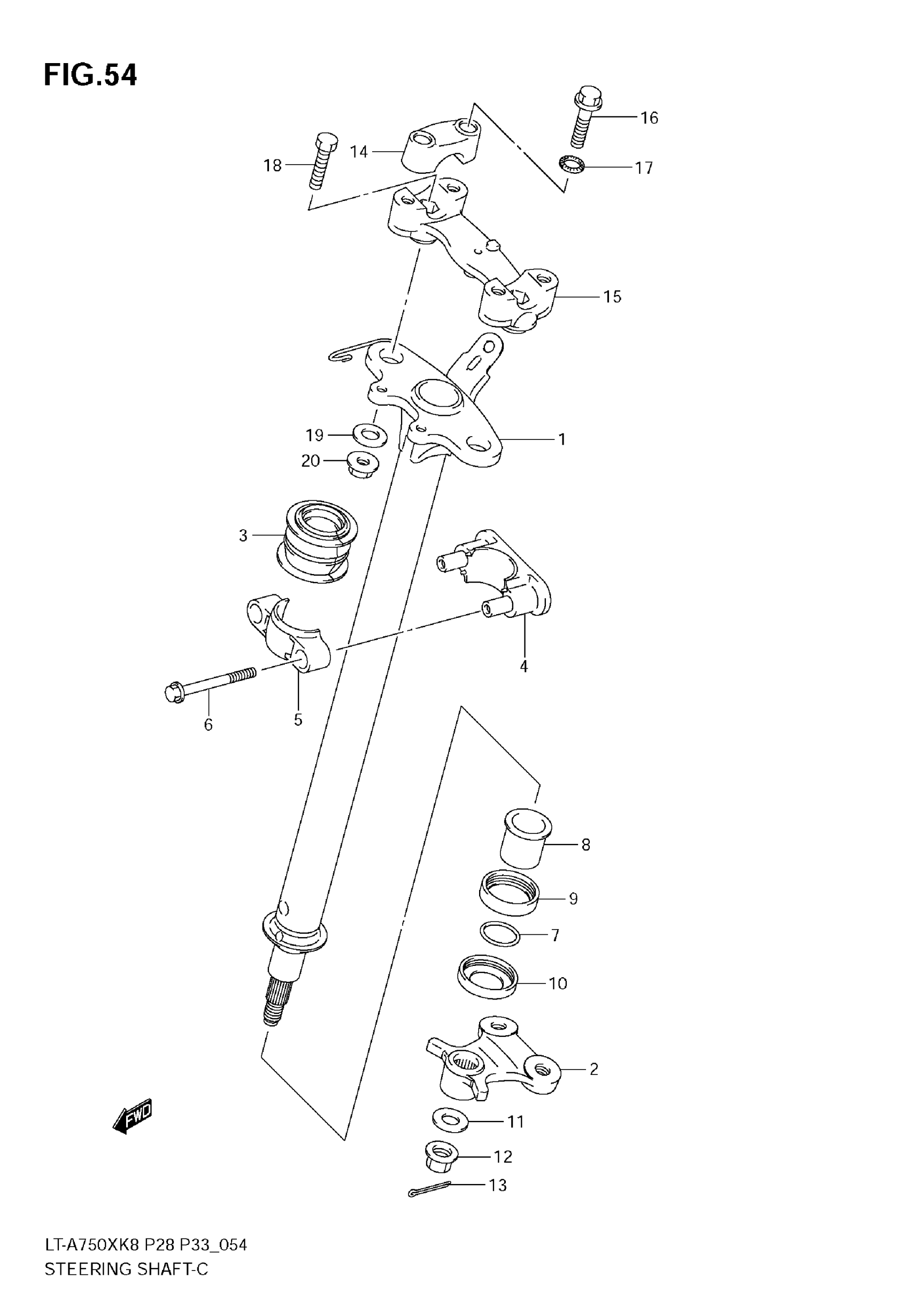

Suzuki LT-A750X (2009) STEERING SHAFT Diagram

#

Description
Price

1

SHAFT, STEERING

51650-31G20

$343.98

2

PLATE, STEERING ARM

51653-31G20

$151.92

3

BUSH, STEERING SHAFT HOLDER This part replaces 51678-31G00.

51678-31G01

$10.66

4

HOLDER, STEERING SHAFT

51670-31G00

$40.32

5

HOLDER, STEERING SHAFT FRONT

51673-31G00

$28.80

6

BOLT

01550-0865B

$3.07

7

O RING (ID:23.7,D:2.4)

09280-24010

$5.09

8

BUSH, STEERING SHAFT LOWER (24X30X32.2)

51661-31G00

$27.50

9

SEAL, DUST This part replaces 51662-31G00.

51662-31G01

$9.41

10

SEAL, DUST This part replaces 51663-31G10.

51663-31G11

$14.08

11

WASHER

09160-14062

$2.79

12

NUT

09159-14027

$15.28

13

COTTER PIN

04111-2020A

$1.22

14

CLAMP, HANDLEBAR UPPER (BLACK)

56211-09F00-291

$33.15

15

CLAMP,HNDL HOLD This part replaces 56211-11H00-291.

56211-11H00

$57.07

16

BOLT

01550-0835B

$4.42

17

WASHER

09164-08015

$2.90

18

BOLT, HANDLE HOLDER

01500-1035B

$4.03

19

WASHER

09160-10128-XC0

$2.64

20

NUT

09159-10115

$3.21
