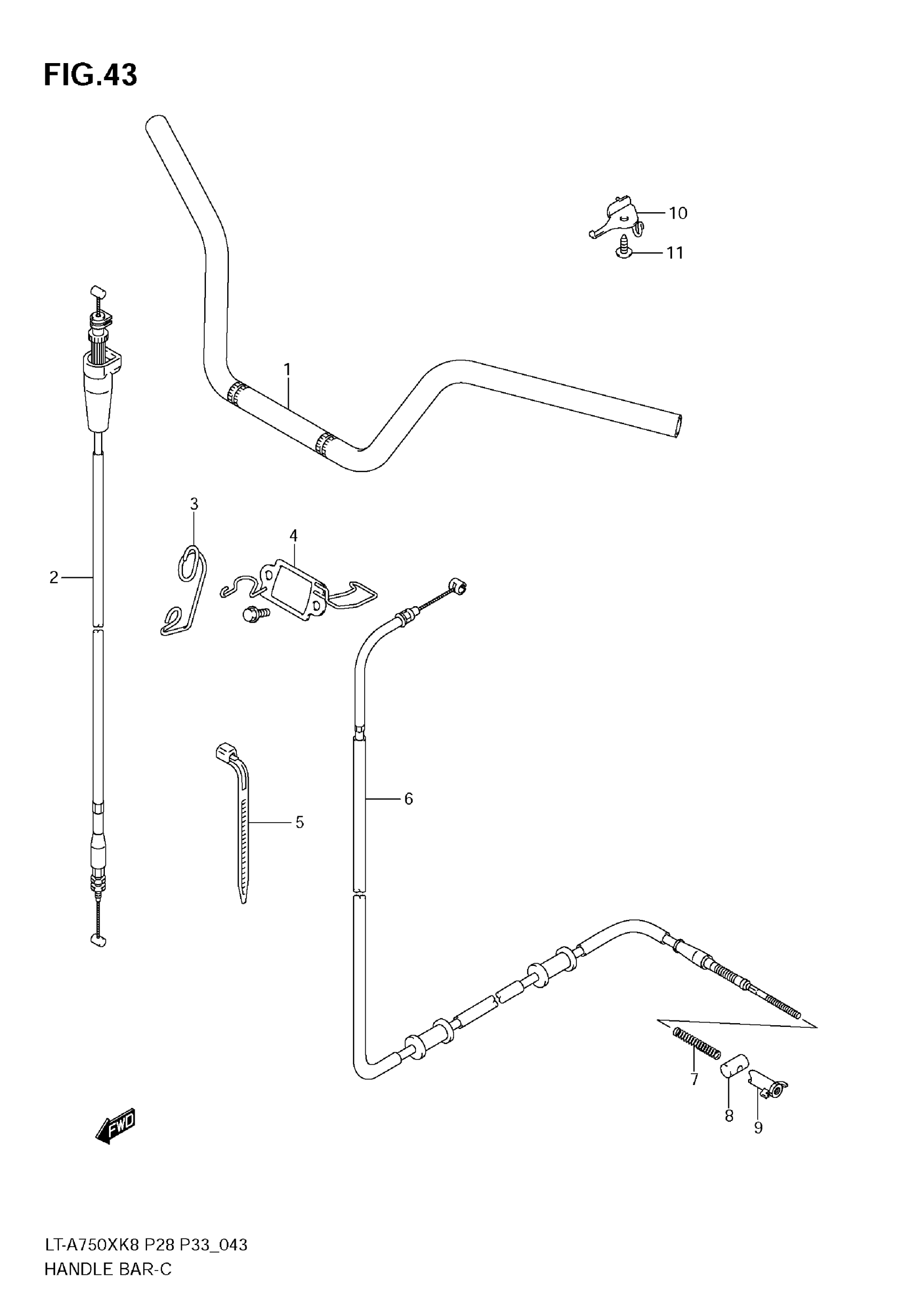

Suzuki LT-A750X (2009) HANDLE BAR Diagram

#

Description
Price

1

HANDLE BAR This part replaces 56111-31G00.

56111-31G30

$67.70

2

CABLE ASSY, THROTTLE

58300-31G00

$51.20

3

GUIDE, THROTTLE CABLE

58626-31G00

$14.47

4

GUIDE, CABLE

58620-31G00

$31.90

5

CLAMP

09407-18402

$2.21

6

CABLE, PARKING BRAKE

58810-31G10

$95.63

7

SPRING

09440-08042

$2.80

8

PIN

09209-13006

$4.73

9

NUT

09150-06015

$3.26

10

GUIDE, PARKING CABLE

58620-31G10

$11.54

11

SCREW

03541-0616B

$3.00
