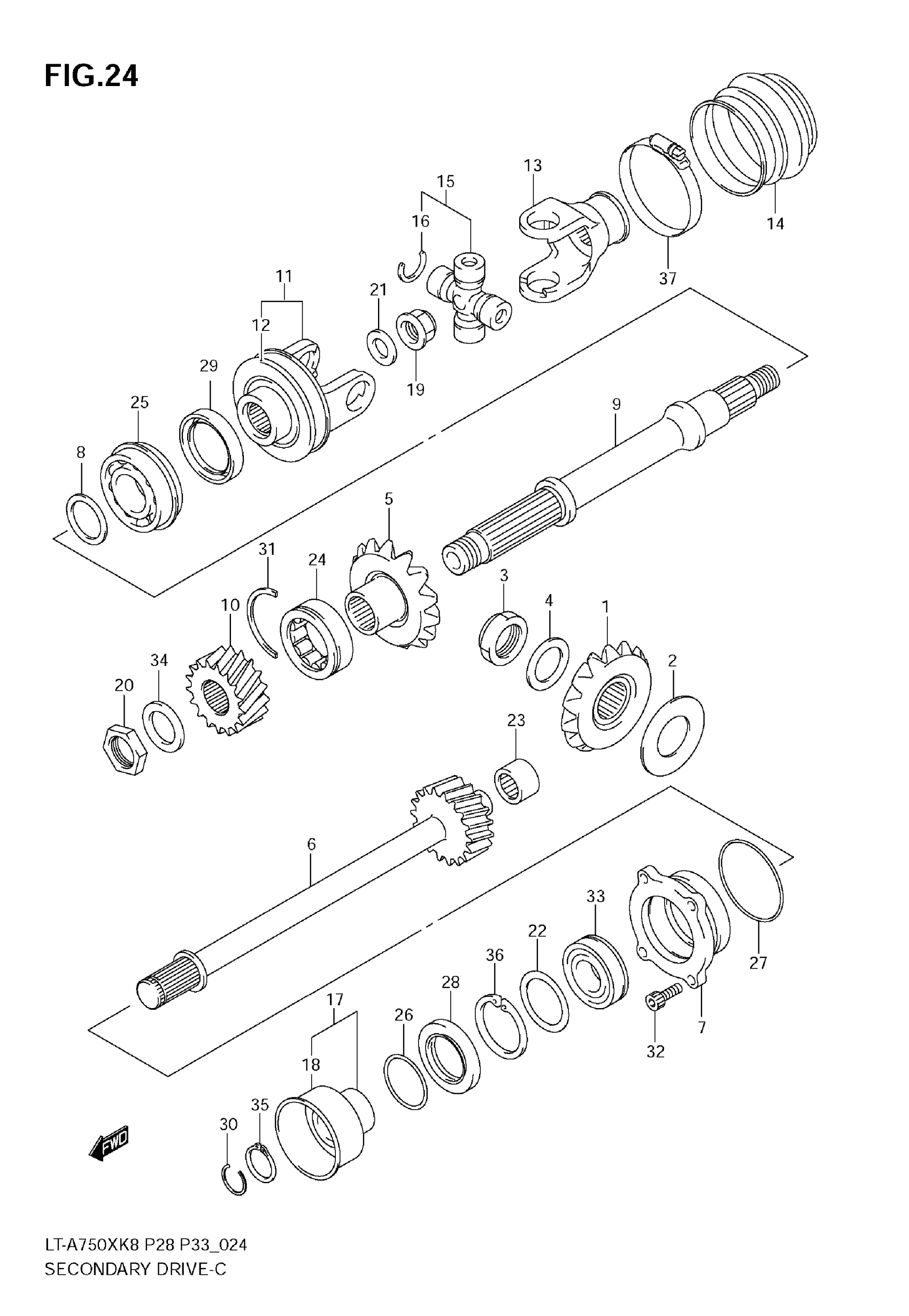

Suzuki LT-A750X (2009) SECONDARY DRIVE Diagram

#

Description
Price

1

GEAR, SEC DRIVE BEVEL

24911-31G00

$237.42

2

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.55 0.58/0.60/0.63/0.65 0.68/0.70/0.73/0.75 0.78/0.80/0.83/0.85 0.88/0.90/0.93/0.95 0.98/1.00/1.03/1.05 1.08/1.10/1.13/1.15 1.18/1.20/1.23/1.25 1.28/1.30

24935-03811

$133.70

3

NUT, SEC DRIVE OUTPUT

09140-20012

$4.32

4

WASHER, SEC DRIVE BEVEL | 20X32X1.0

09181-20223

$2.92

5

GEAR, SEC DRIVEN BEVEL (NT:17 This part replaces 24921-31G00.

24921-31G10

$248.20

6

SHAFT,SEC DRIVEN OUTPUT FR (N This part replaces 24961-31G20.

24961-31G40

$288.58

7

HOUSING, FR OUTPUT SHAFT

24965-31G00

$45.38

8

SHIM SET,SEC DRIVEN BEVEL | T:0.55/0.58/0.60/0.63 0.65/0.68/0.70/0.73 0.75/0.78/0.80/0.83 0.85/0.88/0.90/0.93 0.95/0.98/1.00/1.03 1.05/1.08/1.10/1.13 1.15/1.18/1.20/1.23 1.25/1.28/1.30/1.33 1.35/1.38/1.40

24945-03811

$111.58

9

SHAFT,SEC DRIVEN OUTPUT RR

24971-31G10

$179.33

10

GEAR, SEC DRIVEN OUTPUT

24972-31G20

$106.45

11

YOKE, RR DRIVE OUT | Includes Item(s) 12

27130-31G10

Unavailable

12

FLANGE, OUTPUT YOKE

27592-31G30

Unavailable

13

YOKE, PROP SHAFT

27141-31G00

Unavailable

14

BOOT, REAR OUTPUT JOINT This part replaces 27153-31G00.

27153-31G01

$14.84

15

JOINT SET, UNIVERSAL RR | Includes Item(s) 16 This part replaces 27200-73813.

27200-73814

$50.65

16

CIRCLIP, UNIVERSAL JOINT

09380-25005

$1.67

17

COLLAR, FRONT DRIVE | Includes Item(s) 18

27590-31G00

$62.32

18

PLATE, OUTPUT OIL SEAL

27592-31G00

$14.70

19

NUT, RR DRIVE OUTPUT YOKE

09159-16003

$4.00

20

NUT, SEC DRIVEN OUTPUT

09159-22005

$27.75

21

WASHER, RR DRIVE OUTPUT | 16X30X3.0

09160-16026

$5.00

22

WASHER, FR DRIVE OUTPUT | 40X52X1.0

09181-40195

$6.70

23

BEARING, FRONT OUTPUT, RR | 25X37X17

09263-25068

$53.77

24

BEARING, SEC DRIVEN GEAR | 30X50X17

09263-30050

$57.07

25

BEARING, REAR OUTPUT | 25X52X20.6

09267-25014

$124.50

26

O-RING, FR DRIVE OUTPUT | D:1.9,ID:24.5

09280-25005

$2.12

27

O-RING, FRONT BRG HOUSING | D:3.5,ID:65.2

09280-57002

$2.50

28

SEAL, FRONT OUTPUT SHAFT | 34X52X9

09283-34008

$20.72

29

SEAL, REAR OUTPUT SHAFT | 34X52X9

09283-34008

$20.72

30

C-RING, SEC DRIVEN OUTPUT

09381-21002

$1.49

31

RING, SEC DRIVEN GEAR

09390-50002

$3.03

32

BOLT, FRONT BRG HOUSING

07130-0620B

$3.05

33

BEARING, FRONT OUTPUT, FR

09262-25003

$24.83

34

WASHER, OUTPUT SHAFT GEAR

08211-22365

$5.97

35

CIRCLIP, FR DRIVE OUTPUT

08331-3125A

Unavailable

36

CIRCLIP This part replaces 08331-4152A.

08331-41529

$4.45

37

CLAMP

09402-00512

$15.13
