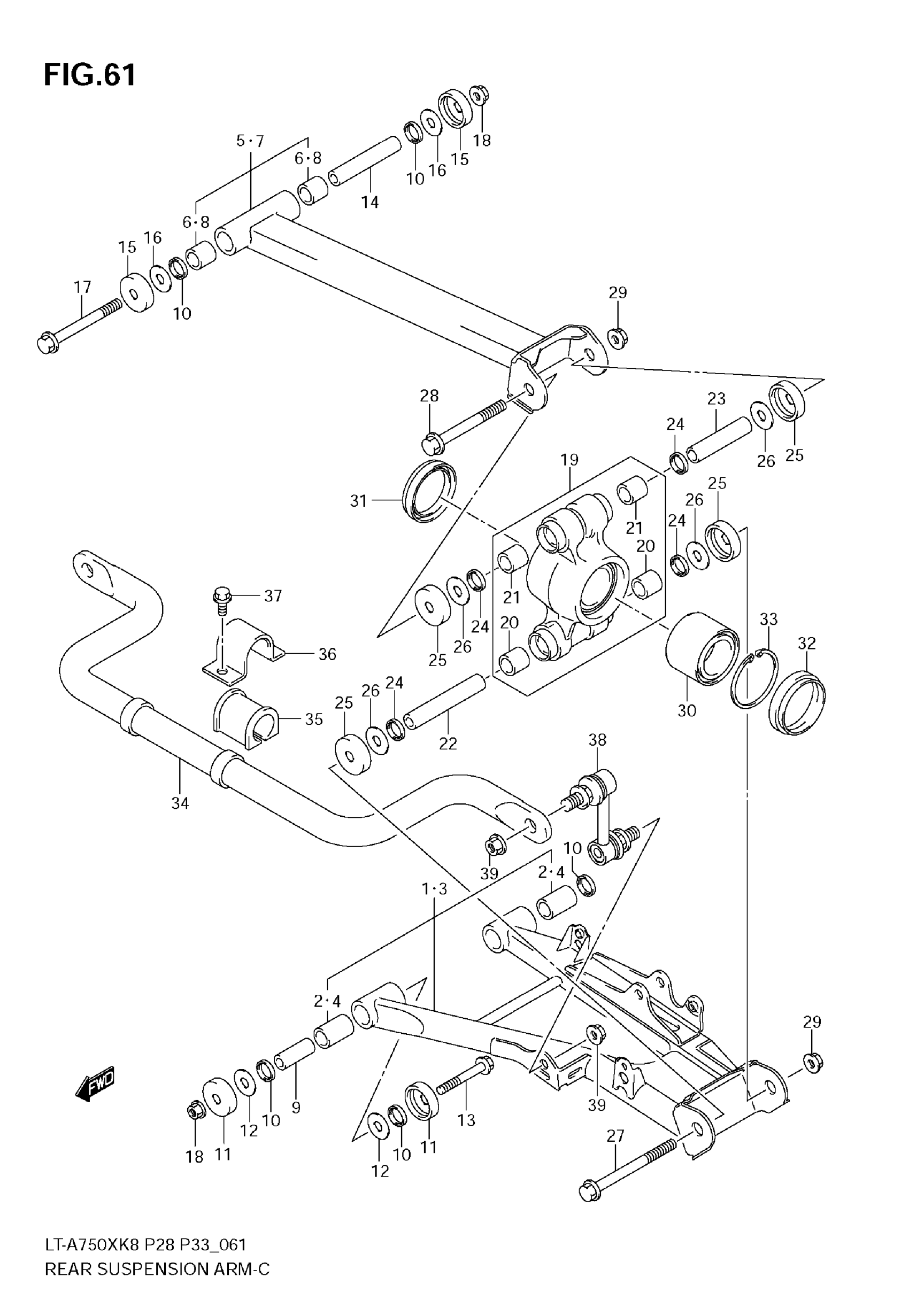

Suzuki LT-A750X (2009) REAR SUSPENSION ARM Diagram

#

Description
Price

1

ARM SET, RR SUSPENSION | Includes Item(s) 2 This part replaces 61510-31820.

61510-31830

$320.15

2

BUSH, RR SPNSN ARM LOWER

61551-31G10

$12.63

3

ARM SET, RR SUSPENSION LOW, LH | Includes Item(s) 4 This part replaces 61520-31820.

61520-31821

$343.73

4

BUSH, RR SPNSN ARM LOWER

61551-31G10

$12.63

5

ARM SET, RR SUSPENSION UPPER, R | Includes Item(s) 6

61530-31830

$223.92

6

BUSH, RR SPNSN ARM UPPER

51236-31G00

$16.84

7

ARM SET, RR SUSPENSION | Includes Item(s) 8

61540-31830

$219.68

8

BUSH, RR SPNSN ARM UPPER

51236-31G00

$16.84

9

SPACER, RR SPNSN ARM LOWER

61552-31G10

$15.68

10

SEAL

52454-45G00

$7.44

11

SEAL, RR SPNSN ARM LOWER

51255-18900

$4.48

12

WASHER, RR SPNSN ARM LOWER

08211-10281

$2.03

13

BOLT, RR SPNSN ARM LOWER

09103-10392

$4.90

14

SPACER, RR SPNSN ARM UPPER

61554-31G00

$19.66

15

SEAL, RR SPNSN ARM UPPER

51255-31G00

$16.82

16

WASHER, RR SPNSN ARM UPPER

08211-10281

$2.03

17

BOLT, RR SPNSN ARM UPPER

09103-10388

$5.78

18

NUT, RR SPNSN ARM PIVOT

09159-10115

$3.55

19

KNUCKLE SET, RR SUSPENSION | Includes Item(s) 20 - 21

61600-31820

$335.70

20

BUSH, RR KNUCKLE

51236-31G00

$16.84

21

BUSH, RR KNUCKLE UPPER | MODEL K8

61551-31G10

$12.63

21

BUSH, RR KNUCKLE UPPER | MODEL K9

51236-31G00

$16.84

22

SPACER, RR KNUCKLE LOWER

61554-31G00

$19.66

23

SPACER, RR KNUCKLE UPPER

61553-31G10

$20.80

24

SEAL

52454-45G00

$7.44

25

SEAL, RR KNUCKLE DUST

51255-18900

$4.48

26

WASHER, RR KNUCKLE

08211-10281

$2.03

27

BOLT, RR KNUCKLE LOWER

09103-10388

$5.78

28

BOLT, RR KNUCKLE UPPER

09103-10387

$7.58

29

NUT, RR KNUCKLE

09159-10115

$3.55

30

BEARING, RR HUB This part replaces 43440-84F00.

43440-58J01

$72.80

31

SEAL, REAR HUB INNER DUST

61615-31G00

$20.96

32

SEAL, REAR HUB OUTER DUST

61616-31G00

$18.59

33

CLIP, HUB BEARING

08331-4162A

$3.89

34

BAR, RR STABILIZER

61651-31G10

$219.12

35

BUSH, RR STABILIZER This part replaces 61652-31G10.

61652-34K00

$7.22

36

PLATE, RR STABILIZER

42415-66D00

$10.48

37

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

38

JOINT, RR STABILIZER This part replaces 61660-31G10.

61660-31G20

$78.81

39

NUT, RR STABILIZER JOIN

08319-3110B

$3.87
