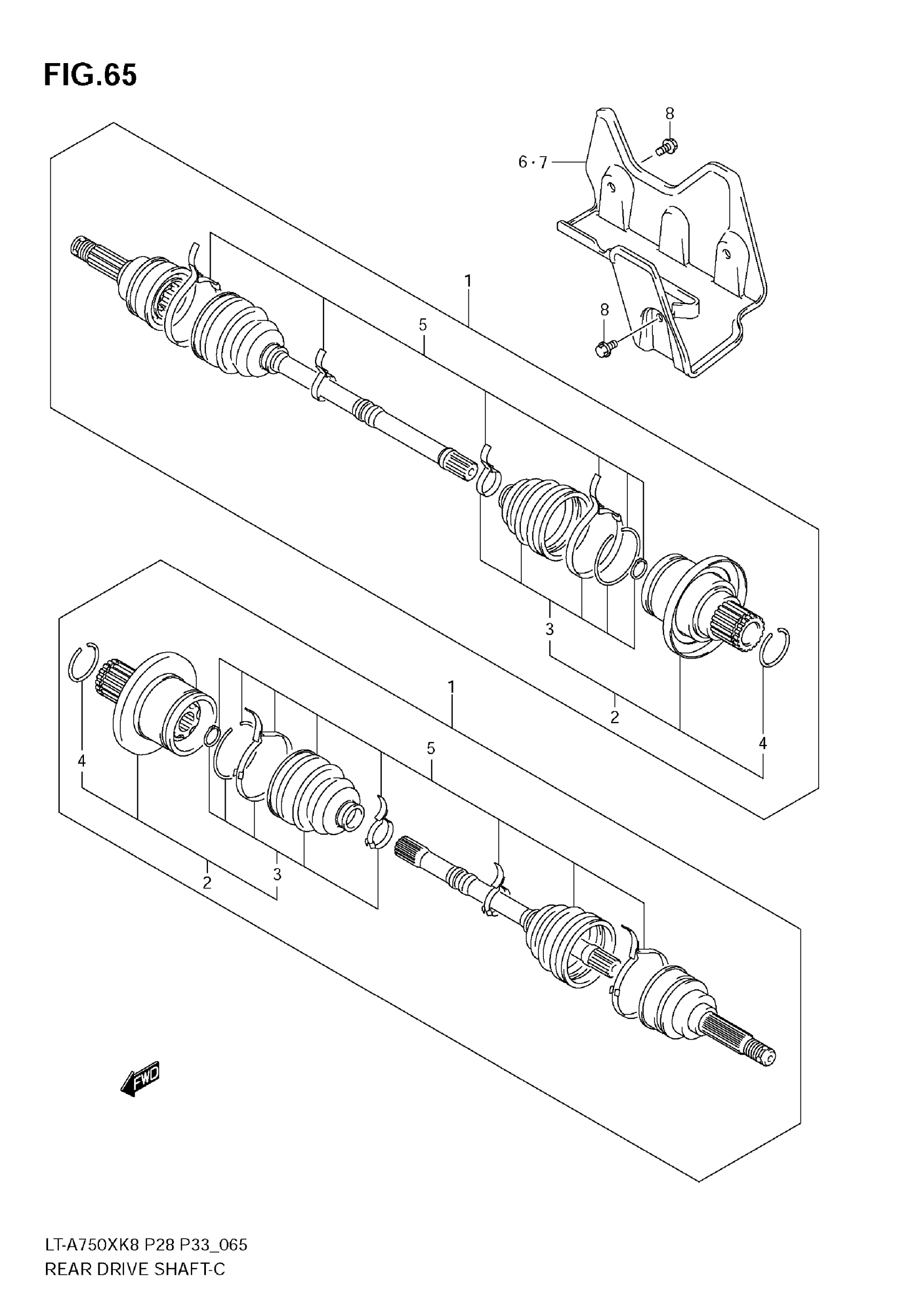

Suzuki LT-A750X (2009) REAR DRIVE SHAFT Diagram

#

Description

Price

1

SHAFT ASSY, REAR DRIVE | Includes Item(s) 2 - 5 This part replaces 64901-31G20.

64901-31G41

$328.20

2

.JOINT SET This part replaces 64933-31G11.

64933-31G12

$280.03

3

..BOOT SET, INNER This part replaces 64931-31G11.

64931-31G12

$103.47

4

CIRCLIP

54925-31G01

$6.17

5

.BOOT SET, OUTER This part replaces 64930-31G12.

64930-31G13

$139.42

6

PROTECTOR,RR DRIVE SHAFT,R This part replaces 64903-31G00.

64903-31G11

$26.54

7

PROTECTOR,RR DRIVE SHAFT,L This part replaces 64904-31G00.

64904-31G11

$26.38

8

BOLT, RR DRIVE SHAFT PR

09111-06085

$4.54
