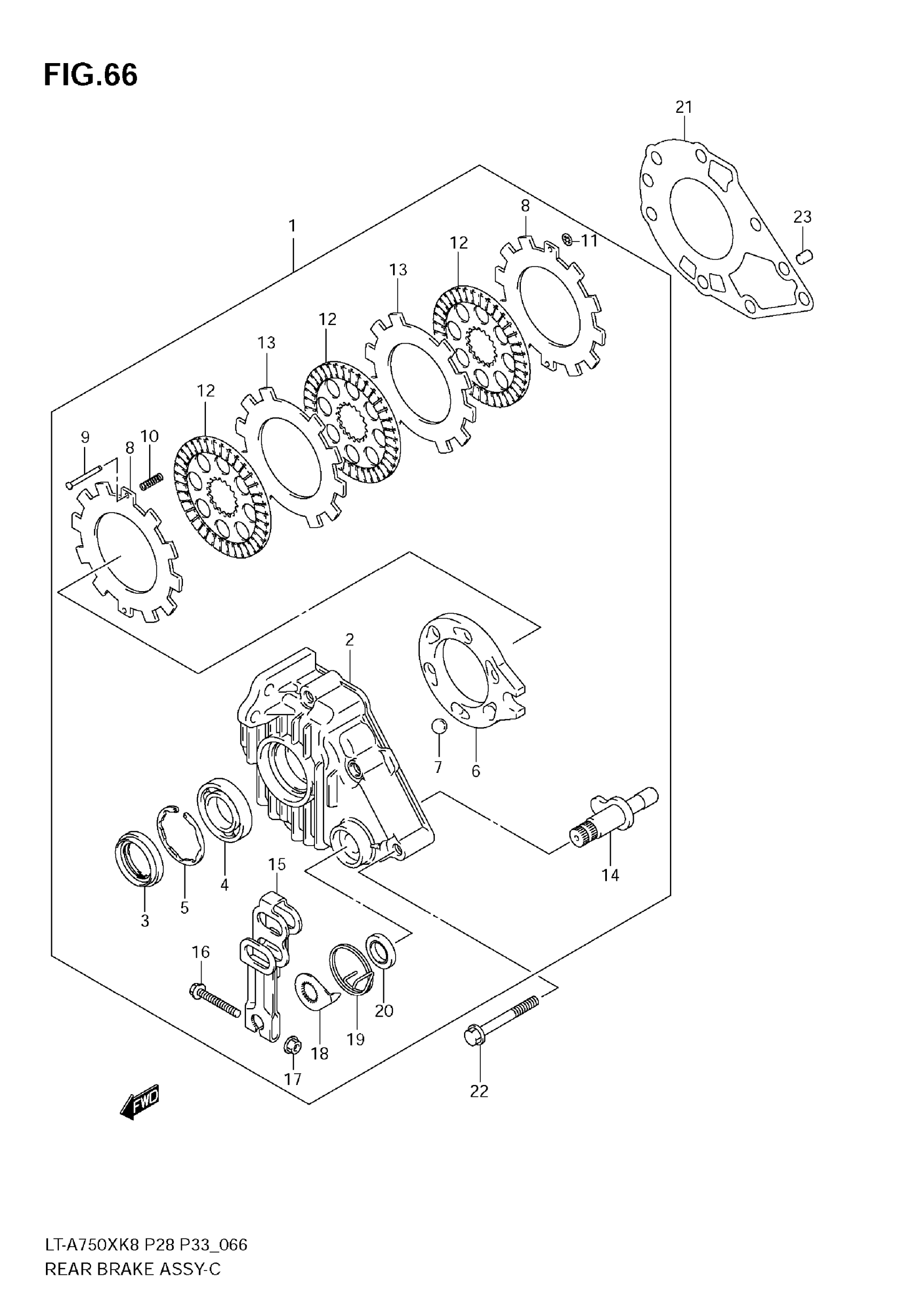

Suzuki LT-A750X (2009) REAR BRAKE ASSY Diagram

#

Description
Price

1

BRAKE ASSY, REAR | Includes Item(s) 2 - 20

64200-31G11

$898.40

2

CASE, REAR BRAKE

64290-31G00

Unavailable

3

SEAL, REAR BRAKE CASE

09283-34008

$20.72

4

BEARING

08113-60050

$23.65

5

CIRCLIP, RR BRAKE CASE

64215-31G00

$8.93

6

PLATE, PRESSURE

64292-31G00

Unavailable

7

BALL

64295-31G00

$10.95

8

PLATE, SIDE

64293-31G00

$31.00

9

PIN, SIDE PLATE

64297-31G00

$6.92

10

SPRING, SIDE PLATE

64296-31G00

$6.35

11

NUT, SIDE PLATE

64298-31G00

$5.02

12

PLATE, FRICTION

64420-31G00

$76.68

13

PLATE, SEPARATOR

64294-31G00

$29.10

14

CAM, REAR BRAKE

64440-31G01

Unavailable

15

LEVER, RR BRAKE CAM

64451-31G00

Unavailable

16

BOLT, RR BRAKE CAM LEVER

64455-31G00

Unavailable

17

NUT, RR BRAKE CAM LEVER

64456-31G00

Unavailable

18

PLATE, BRAKE LINING INDICATOR

64492-31G00

Unavailable

19

SPRING, RR BRAKE CAM LEVER

64484-31G00

$14.77

20

SEAL, RR BRAKE CAM

64443-31G01

$29.10

21

GASKET, RR BRAKE CASE

64124-31G00

$17.32

22

BOLT, RR BRAKE CASE

09103-08332

$4.60

23

PIN, RR BRAKE CASE KNOCK

09261-09002

$3.50
