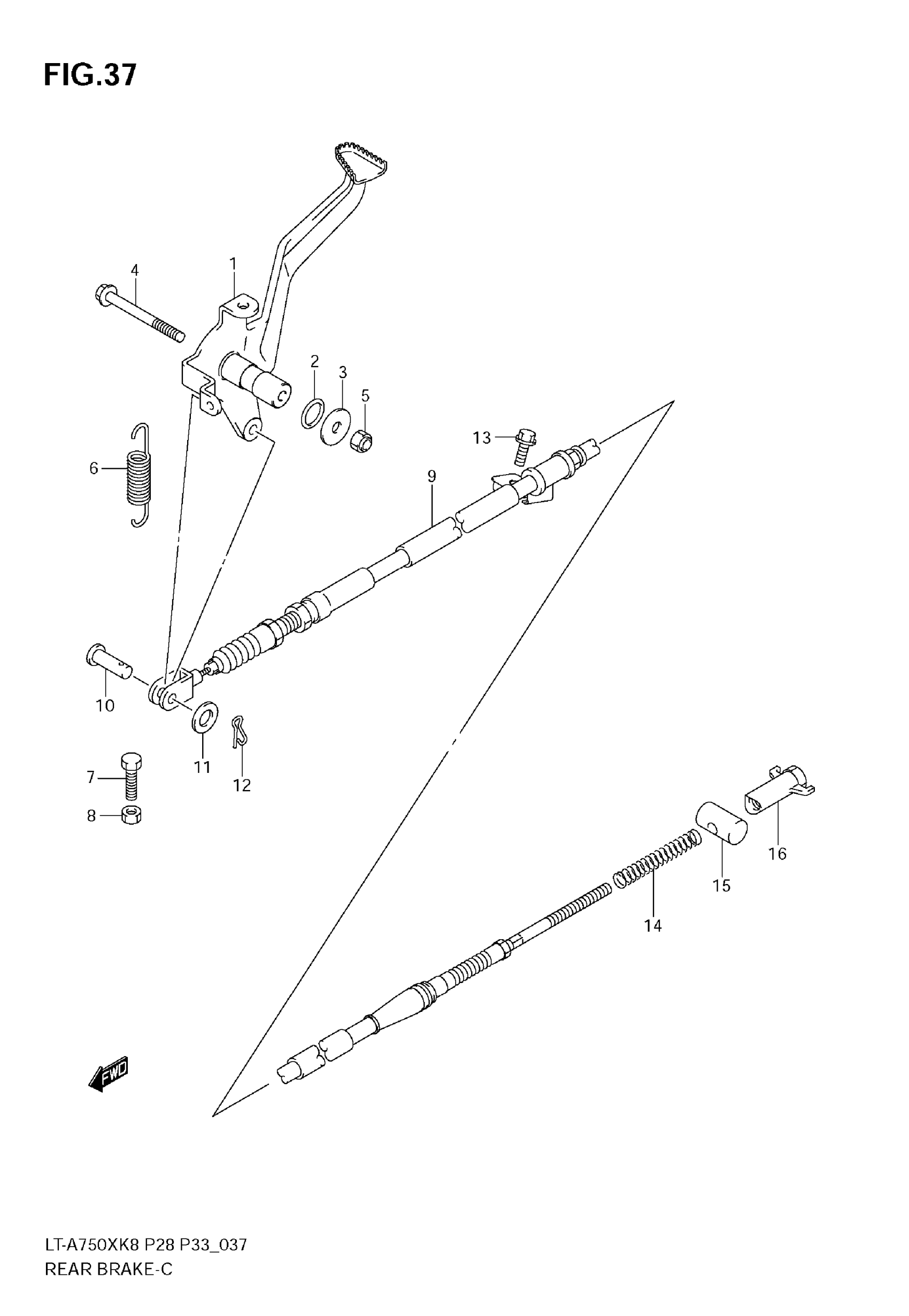

Suzuki LT-A750X (2009) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-31G00

$196.61

2

O RING

09280-14011

$4.77

3

WASHER

09160-06138

$1.91

4

BOLT

09103-06195

$4.00

5

NUT

08319-2106B

$2.32

6

SPRING, RETURN

09443-12019

$4.50

7

BOLT, ADJUSTER

01500-0620B

$2.15

8

NUT

08310-0006B

$2.34

9

CABLE, REAR BRAKE

58510-31G00

$84.36

10

PIN, FRONT

09200-05001

$1.65

11

WASHER

08322-0106B

$2.26

12

COTTER PIN

09385-06012

$1.89

13

BOLT, CABLE

01550-0616A

$1.97

14

SPRING

09440-08042

$2.92

15

PIN

09209-13006

$5.24

16

NUT

09150-06015

$3.56
