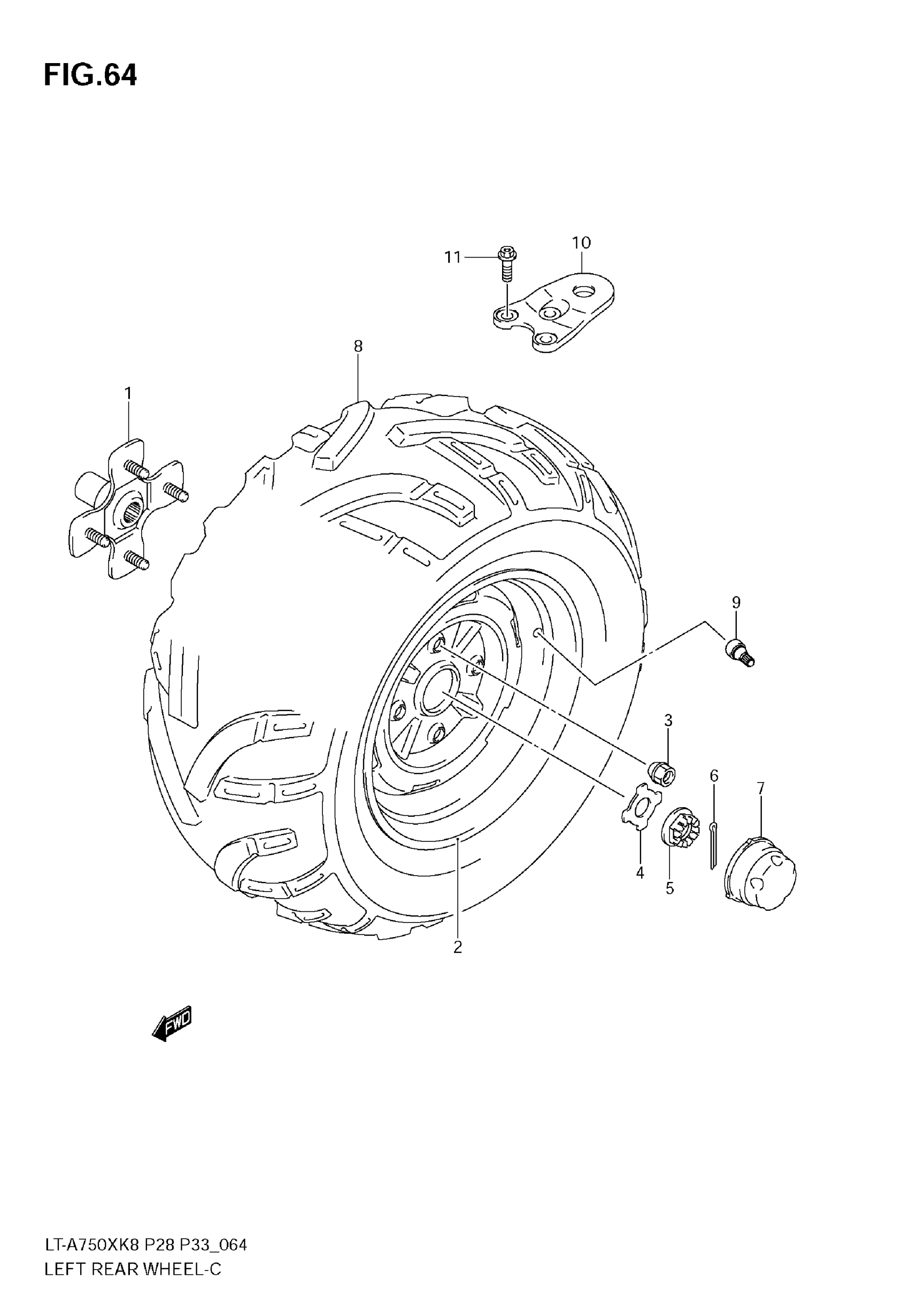

Suzuki LT-A750X (2009) LEFT REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL LH This part replaces 64110-31G01.

64110-31G10

$222.42

2

RIM, REAR WHEEL (12X7.5AT) (BLACK) | LT-A750XK8 This part replaces 65310-31G10-291.

65310-31G10-YSR

Unavailable

2

RIM, REAR WHEEL (12X7.5AT) | LT-A750XK9

65310-31G10-YSR

Unavailable

2

RIM, REAR WHEEL (12X7.5AT) | LT-A750XZK8/XZK9

65310-31G00

Unavailable

3

NUT

09159-10114

$5.11

4

WASHER

64723-03G00

$20.80

5

NUT | LT-A750XK8/XZK8/XZK9 This part replaces 09141-20005.

09141-20008

$18.05

5

NUT, HUB | LT-A750XK9

09141-20008

$18.05

6

COTTER PIN

04111-4035A

$1.49

7

CAP,WHEEL CENTER

54725-09F01

$9.95

8

TIRE, REAR (AT25X10-12) This part replaces 65110-31G10.

65110-31G20

Unavailable

9

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

10

PLATE, TRAILER TOW

95211-31G00

$38.37

11

BOLT

09103-10366

$3.85
