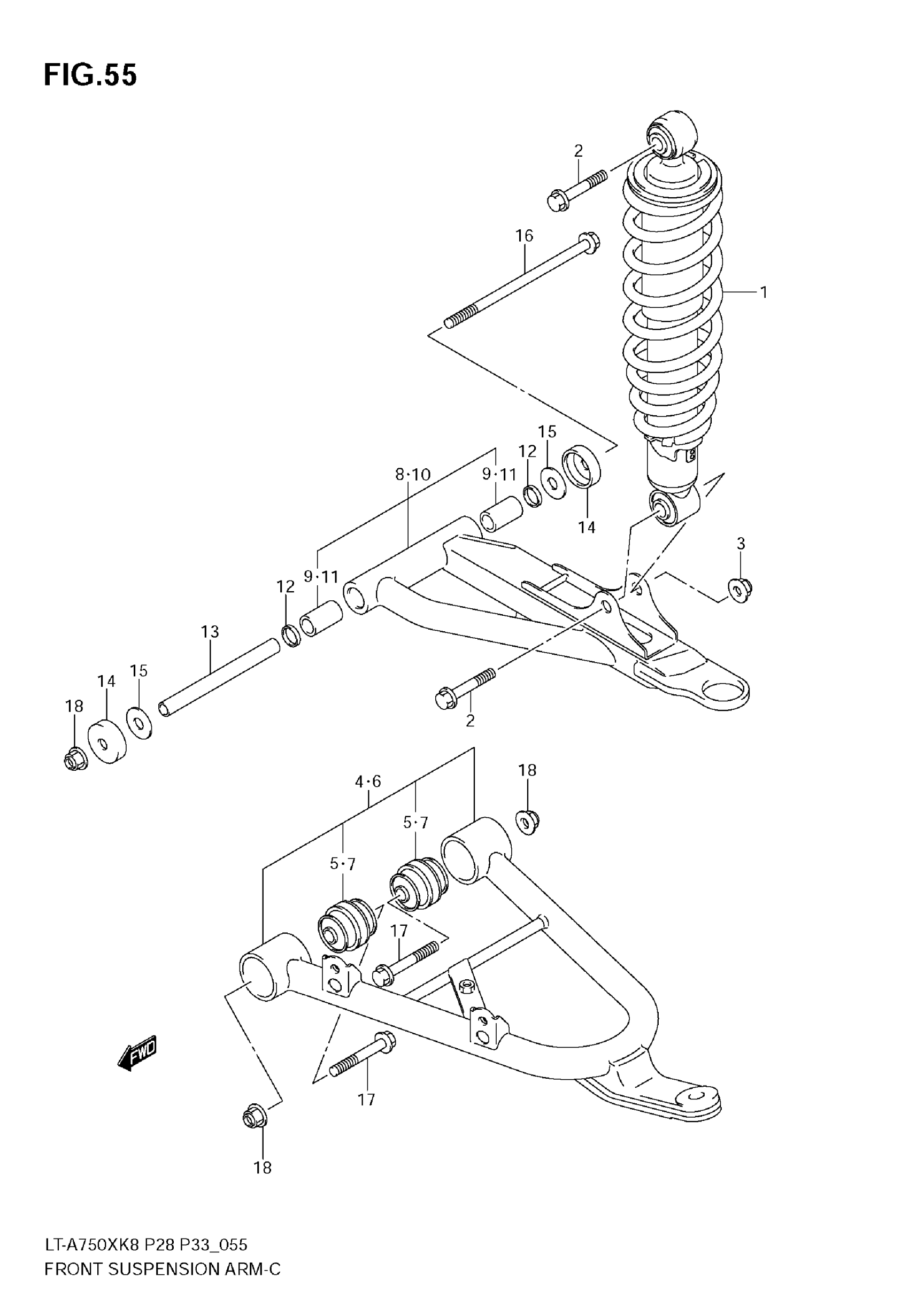

Suzuki LT-A750X (2009) FRONT SUSPENSION ARM Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK (BLACK)

52100-31G20-019

$166.08

2

BOLT (10X48)

09103-10126

$4.50

3

NUT | LOWER

09159-10115

$3.55

4

ARM SET, SUSPENSION LOWER RH | Includes Item(s) 5

52410-31820

$311.55

5

BUSH (10X35.1X38)

09319-10055

$21.02

6

ARM SET, SUSPENSION LOWER LH | Includes Item(s) 7

52420-31820

$308.65

7

BUSH (10X35.1X38)

09319-10055

$21.02

8

ARM SET, SUSPENSION UPPER RH | Includes Item(s) 9

52430-31820

$301.47

9

BUSH

51236-31G00

$16.84

10

ARM SET, SUSPENSION UPPER LH | Includes Item(s) 11

52440-31820

$290.42

11

BUSH

51236-31G00

$16.84

12

SEAL

52454-45G00

$7.44

13

SPACER, FR SUSPENSION ARM

52455-31G10

$27.21

14

SEAL, FR SUSPENSION ARM PIVOT

51255-18900

$4.48

15

WASHER

08211-10281

$2.03

16

BOLT, SUSPENSION UPPER (10X160)

09103-10389

$9.78

17

BOLT, SUSPENSION LOWER (10X57)

09103-10255

$7.78

18

NUT

09159-10115

$3.55
