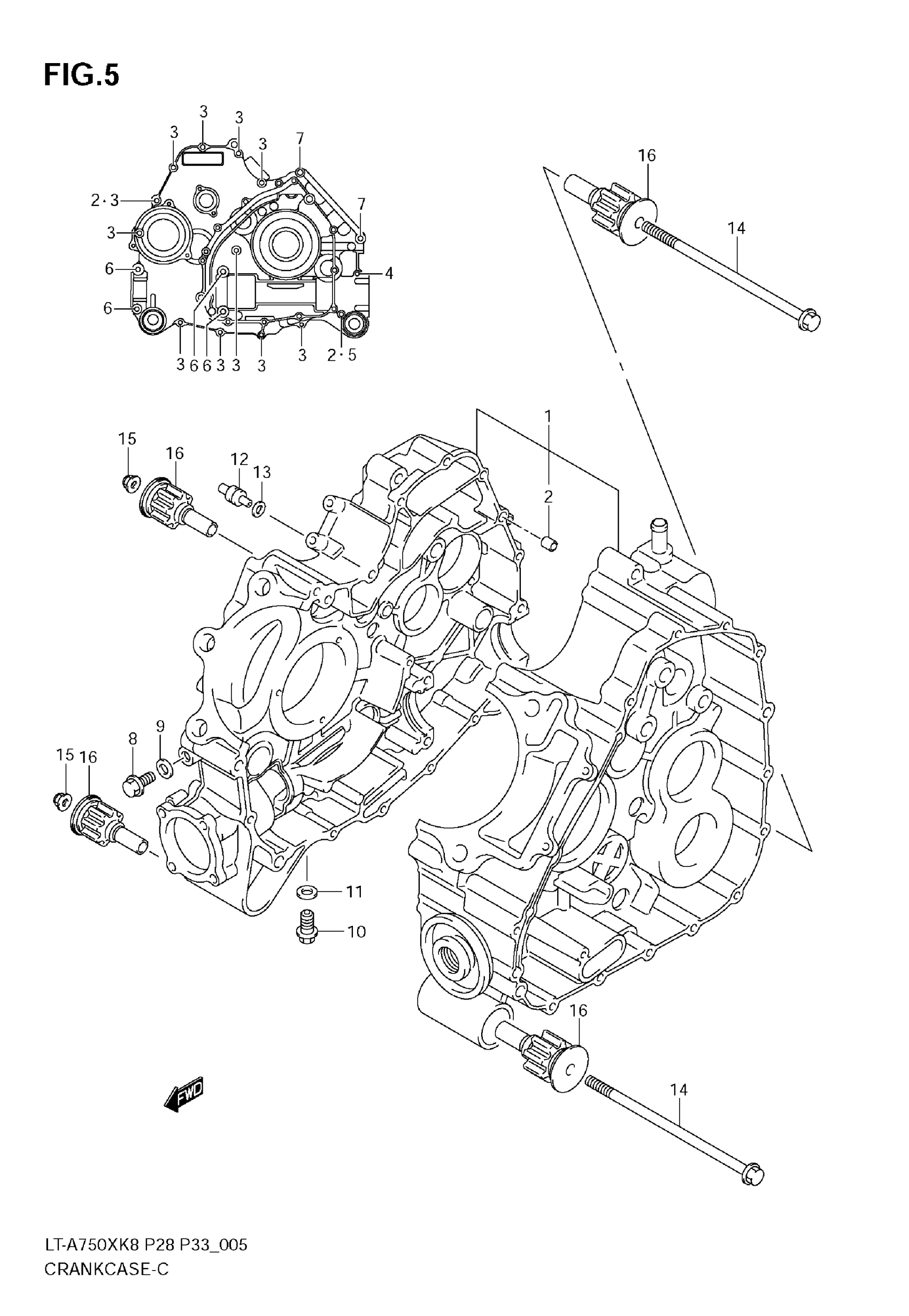

Suzuki LT-A750X (2009) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 7

11300-31811

$2,232.13

2

PIN

04211-11169

$1.78

3

BOLT

01547-0650A

$2.46

4

BOLT

01547-0680A

$3.30

5

BOLT

01547-0690A

$2.70

6

BOLT

01550-0850A

$3.67

7

BOLT

01550-0875A

$3.55

8

BOLT (8X12)

01550-0812A

$2.32

9

GASKET (8.2X14X1)

09168-08016

$1.65

10

PLUG, OIL DRAIN

09247-12104

$2.73

11

GASKET

09168-12002

$1.59

12

JET,T/M OIL GALLERY

09493-20014

$16.87

13

O-RING

09280-04004

$1.91

14

BOLT, ENG MTG (L:195)

09103-10118

$11.56

15

NUT, ENG MTG

09159-10115

$3.55

16

BUSH, ENG MTG

11651-31G10

$21.96
