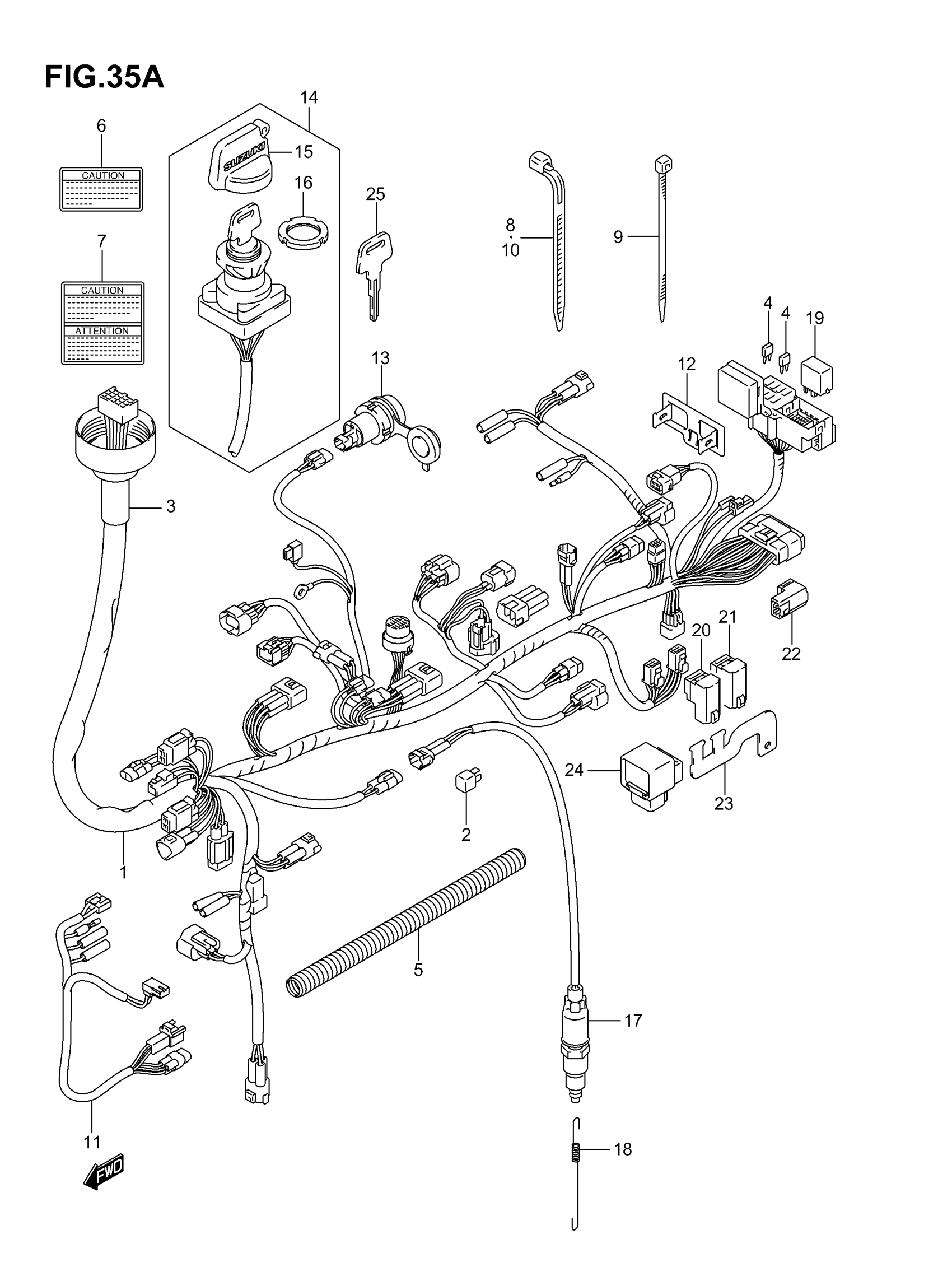

Suzuki LT-A700X (2007) WIRING HARNESS (MODEL K6/K7 F.NO.5SAAP41A 67110001%) Diagram

HARNESS,WIRING | Includes Item(s) 2 - 4 This part replaces 36610-31G30.

36610-31G33

$342.49

RECTIFIER ASSY

32800-16A00

$23.07

COVER

36618-31G00

Unavailable

FUSE (10A)

09481-10501

$2.06

FUSE (15A)

09481-15501

$2.02

GUIDE, WIRING HARNESS

36619-31G00

$18.08

LABEL, CAUTION MAX AMP

38852-09F30

Unavailable

LABEL, CAUTION MAX AMP | P28

38852-03G10

Unavailable

CLAMP (L:95)

09407-11401

$2.63

CLAMP (L:125)

09407-14403

$2.26

CLAMP (L:165)

09407-18402

$2.19

CLAMP (L:235)

09407-25401

$4.66

CLAMP (L:145)

09407-14407

$3.57

CLAMP (L:190)

09407-19401

$3.05

WIRE, FRONT BRAKE SW LEAD | MODEL K6

36857-03G00

$53.98

WIRE, FRONT BRAKE SW LEAD | MODEL K7

36857-31G00

$56.05

BRACKET, FUSE

36744-31G00

Unavailable

TERMINAL, POWER SOURCE

38850-03G00

$75.08

SWITCH ASSY,IGN | Includes Item(s) 15 - 16 This part replaces 37110-31G00.

37110-31G20

$91.75

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

.NUT,IGNITION SWITCH

37112-24500

$11.48

SWITCH ASSY,STOP LAMP

37740-38F01

$115.27

SPRING, STOP LAMP

09443-06080

$4.73

RELAY,NEUTRAL START

38730-09F00

$46.55

RELAY ASSY | MODEL K6 This part replaces 38740-31G10.

38740-31G11

$27.46

RELAY ASSY,FUEL | MODEL K7 This part replaces 38740-31G01.

38740-31G02

$38.13

RELAY ASSY | MODEL K6 This part replaces 38740-31G10.

38740-31G11

$27.46

RELAY ASSY,FUEL | MODEL K7 This part replaces 38740-31G01.

38740-31G02

$38.13

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$38.13

BRACKET, RELAY This part replaces 38741-31G10.

38741-31G20

Unavailable

RELAY ASSY, DRIVE

38750-31G00

$119.65

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$8.07

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$8.07
