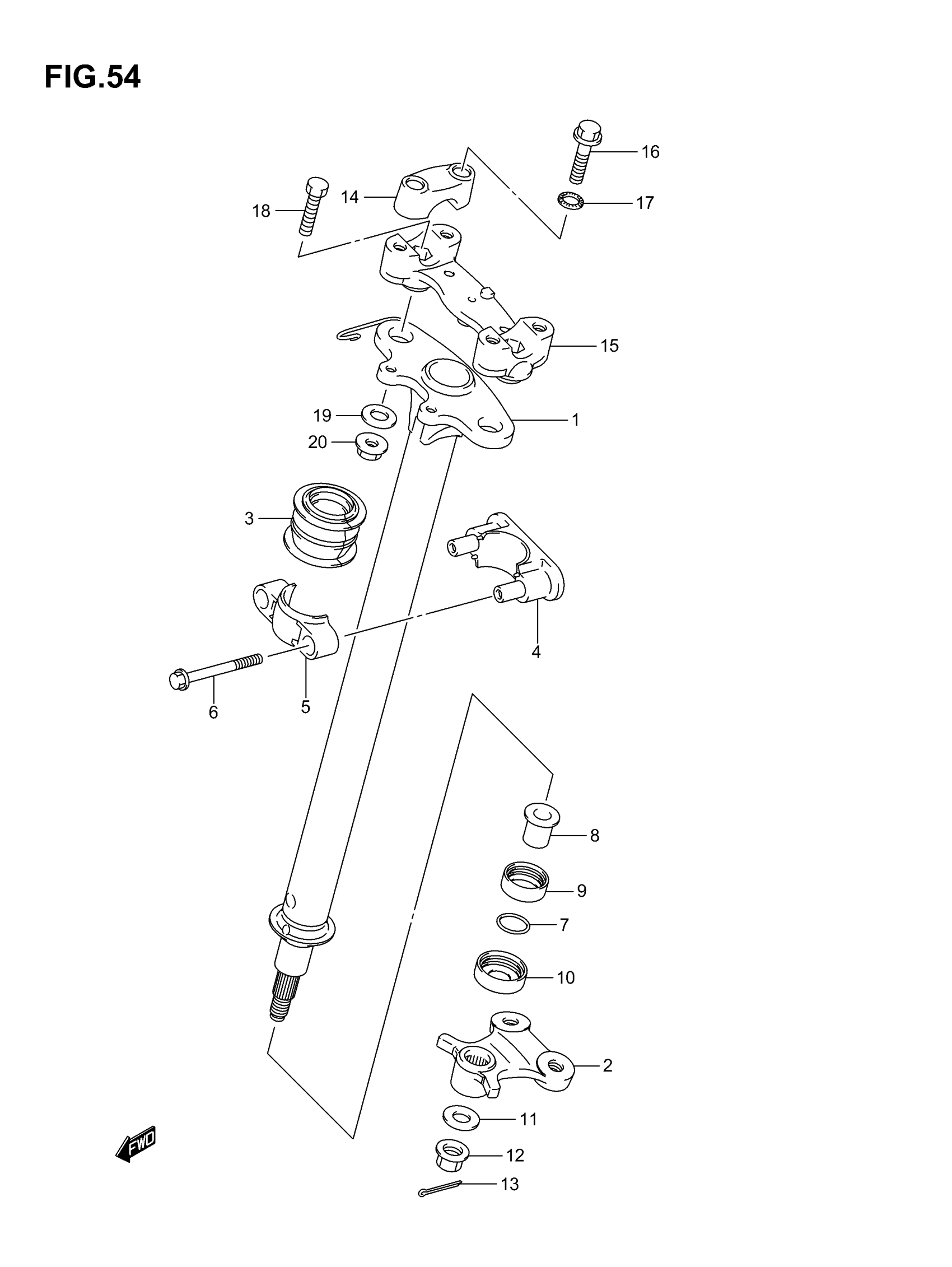

Suzuki LT-A700X (2007) STEERING SHAFT Diagram

#

Description
Price

1

SHAFT, STEERING | %F.NO.5SAAP41A67110000

51650-31G00

Unavailable

1

SHAFT, STEERING | F.NO.5SAAP41A67110001% This part replaces 51650-31G10.

51650-31G20

$309.10

2

PLATE, STEERING ARM | %F.NO.5SAAP41A67110000 This part replaces 51653-31G00.

51653-31G10

Unavailable

2

PLATE, STEERING ARM | F.NO.5SAAP41A67110001%

51653-31G10

Unavailable

2

PLATE, STEERING ARM | MODEL K7

51653-31G20

$135.25

3

BUSH, STEERING SHAFT HOLDER This part replaces 51678-31G00.

51678-31G01

$11.64

4

HOLDER, STEERING SHAFT

51670-31G00

$35.72

5

HOLDER, STEERING SHAFT FRONT

51673-31G00

$25.52

6

BOLT This part replaces 01550-08653.

01550-0865A

$3.51

7

O RING (ID:23.7,D:2.4)

09280-24010

$5.64

8

BUSH, STEERING SHAFT LOWER (24X30X32.2)

51661-31G00

$30.05

9

SEAL, DUST This part replaces 51662-31G00.

51662-31G01

$10.28

10

SEAL, DUST | MODEL K6 This part replaces 51663-31G00.

51663-31G11

$15.38

10

SEAL, DUST | MODEL K7 This part replaces 51663-31G10.

51663-31G11

$15.38

11

WASHER | %F.NO.5SAAP41A67110000

09164-14010

Unavailable

11

WASHER | F.NO.5SAAP41A67110001%

09160-14062

$2.81

12

NUT

09159-14027

$13.67

13

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

14

CLAMP, HANDLEBAR UPPER (BLACK)

56211-09F00-291

$29.37

15

CLAMP,HNDL HOLD This part replaces 56211-11H00-291.

56211-11H00

$50.55

16

BOLT (8X35) This part replaces 01550-08353.

01550-0835A

$3.04

17

WASHER

09164-08015

$3.21

18

BOLT, HANDLE HOLDER This part replaces 01500-10353.

01500-1035B

$3.72

19

WASHER This part replaces 09160-10128.

09160-10128-XC0

$2.62

20

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55
