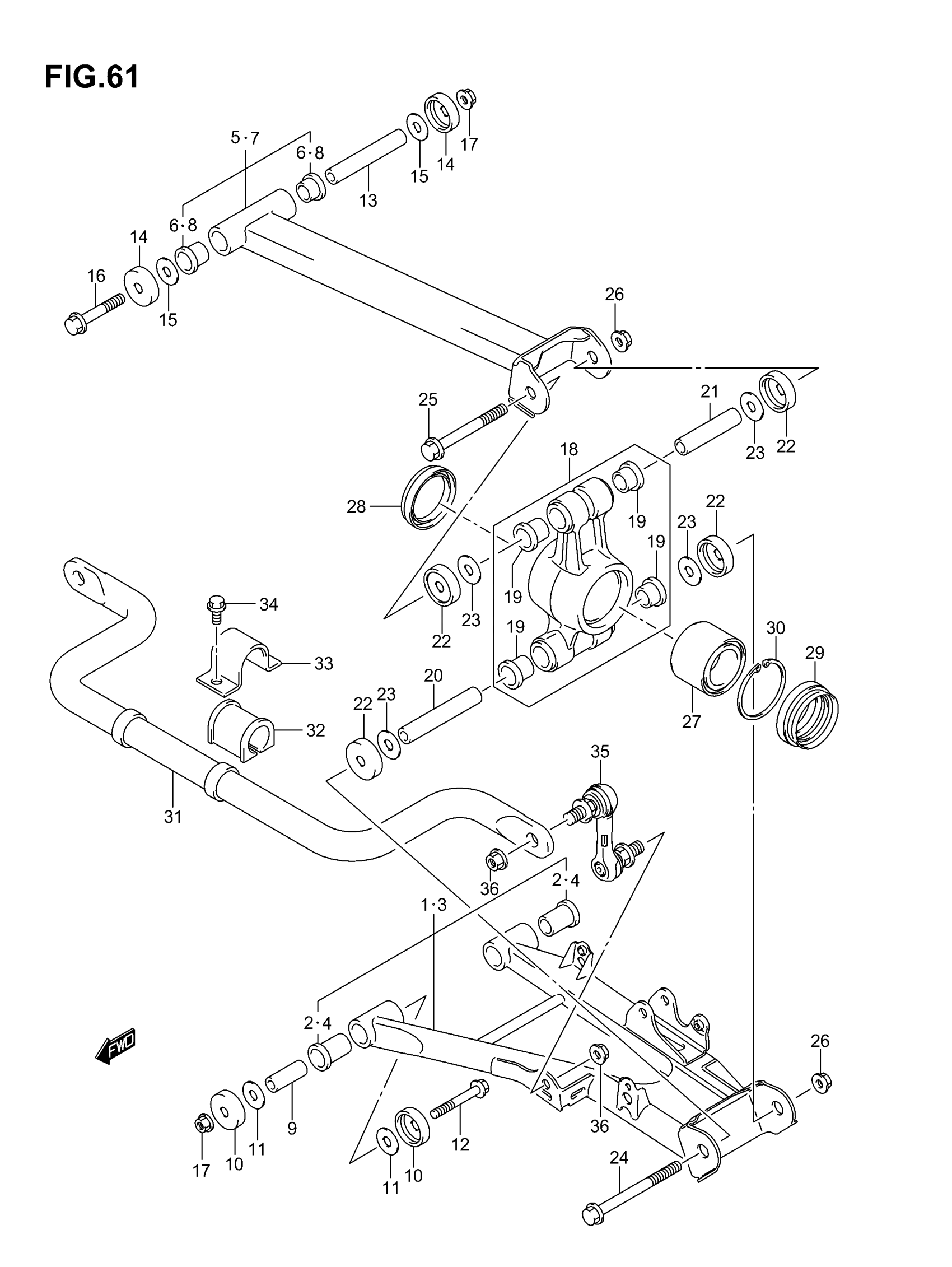

Suzuki LT-A700X (2007) REAR SUSPENSION ARM Diagram

#

Description
Price

1

ARM SET, RR SUSPENSION LOWER, R | Includes Item(s) 2

61510-31810

$148.83

2

BUSH, RR SPNSN ARM LOWER

61551-31G00

$30.48

3

ARM SET, RR SUSPENSION LOWER, L | Includes Item(s) 4

61520-31810

$143.35

4

BUSH, RR SPNSN ARM LOWER

61551-31G00

$30.48

5

ARM SET, RR SUSPENSION UP, RH | %F.NO.5SAAP41A67110000 This part replaces 61530-31810.

61530-31830

$223.92

5

ARM SET, RR SUSPENSION UP, RH | F.NO.5SAAP41A67110001%; Includes Item(s) 6 This part replaces 61530-31820.

61530-31830

$223.92

6

BUSH, RR SPNSN ARM UPPER

51236-40B00

$19.07

7

ARM SET, RR SUSPENSION UP, LH | %F.NO.5SAAP41A67110000 This part replaces 61540-31810.

61540-31830

$219.68

7

ARM SET, RR SUSPENSION UP, LH | F.NO.5SAAP41A67110001%; Includes Item(s) 8 This part replaces 61540-31820.

61540-31830

$219.68

8

BUSH, RR SPNSN ARM UPPER

51236-40B00

$19.07

9

SPACER, RR SPNSN ARM LOWER

61552-31G10

$15.68

10

SEAL, RR SPNSN ARM LOWER

51255-18900

$4.48

11

WASHER, RR SPNSN ARM LOWER

08211-10281

$2.03

12

BOLT (10X70) This part replaces 09103-10386.

09103-10392

$4.90

13

SPACER, RR SPNSN ARM UPPER

61554-31G00

$19.66

14

SEAL, RR SPNSN ARM UPPER | %F.NO.5SAAP41A67110000

51255-18900

$4.48

14

SEAL, RR SPNSN ARM UPPER | F.NO.5SAAP41A67110001%

51255-31G00

$16.82

15

WASHER, RR SPNSN ARM UPPER

08211-10281

$2.03

16

BOLT, RR SPNSN ARM UPPER

09103-10388

$5.78

17

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

18

KNUCKLE SET, RR SUSPENSION | Includes Item(s) 19

61600-31810

Unavailable

19

BUSH, RR KNUCKLE

51236-40B00

$19.07

20

SPACER, RR KNUCKLE LOWER

61554-31G00

$19.66

21

SPACER, RR KNUCKLE UPPER

61553-31G10

$20.80

22

SEAL, RR KNUCKLE DUST

51255-18900

$4.48

23

WASHER, RR KNUCKLE

08211-10281

$2.03

24

BOLT, RR KNUCKLE LOWER

09103-10388

$5.78

25

BOLT, RR KNUCKLE UPPER

09103-10387

$7.58

26

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

27

BEARING, RR HUB This part replaces 43440-84F00.

43440-58J01

$72.80

28

SEAL, REAR HUB INNER DUST

61615-31G00

$20.96

29

SEAL, REAR HUB OUTER DUST

61616-31G00

$18.59

30

CLIP This part replaces 08331-41629.

08331-4162A

$3.89

31

BAR, RR STABILIZER

61651-31G10

$219.12

32

BUSH, RR STABILIZER This part replaces 61652-31G10.

61652-34K00

$7.22

33

PLATE, RR STABILIZER

42415-66D00

$10.48

34

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

35

JOINT, RR STABILIZER

61660-31G00

$78.81

36

NUT This part replaces 08319-31103.

08319-3110A

$2.73
