2007 Suzuki LT-A700X Rear Shock Absorber Diagram

← All diagrams

Find the part on the Rear Shock Absorber diagram for your 2007 Suzuki LT-A700X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

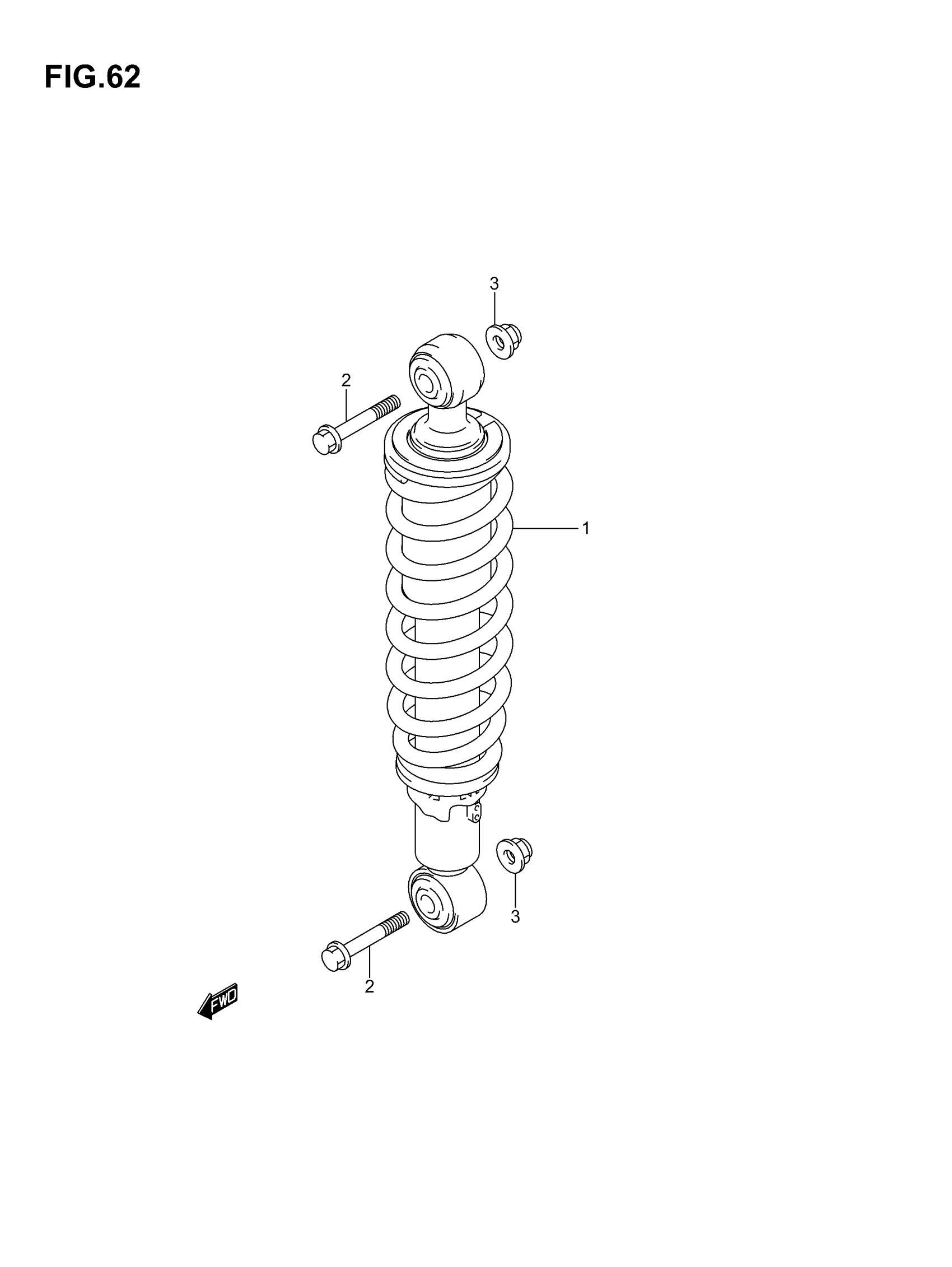

2007 Suzuki LT-A700X Rear Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ABSORBER ASSY, REAR SHOCK (BLACK) | %F.NO.5SAAP41A67110000

62100-31G00-019

2
Out of stock

1

ABSORBER ASSY, REAR SHOCK (BLACK) | F.NO.5SAAP41A67110001%

62100-31G10-019

2
Out of stock

2

BOLT, RR SHOCK ABS

09103-10385

4
Out of stock

3

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

4
Out of stock
