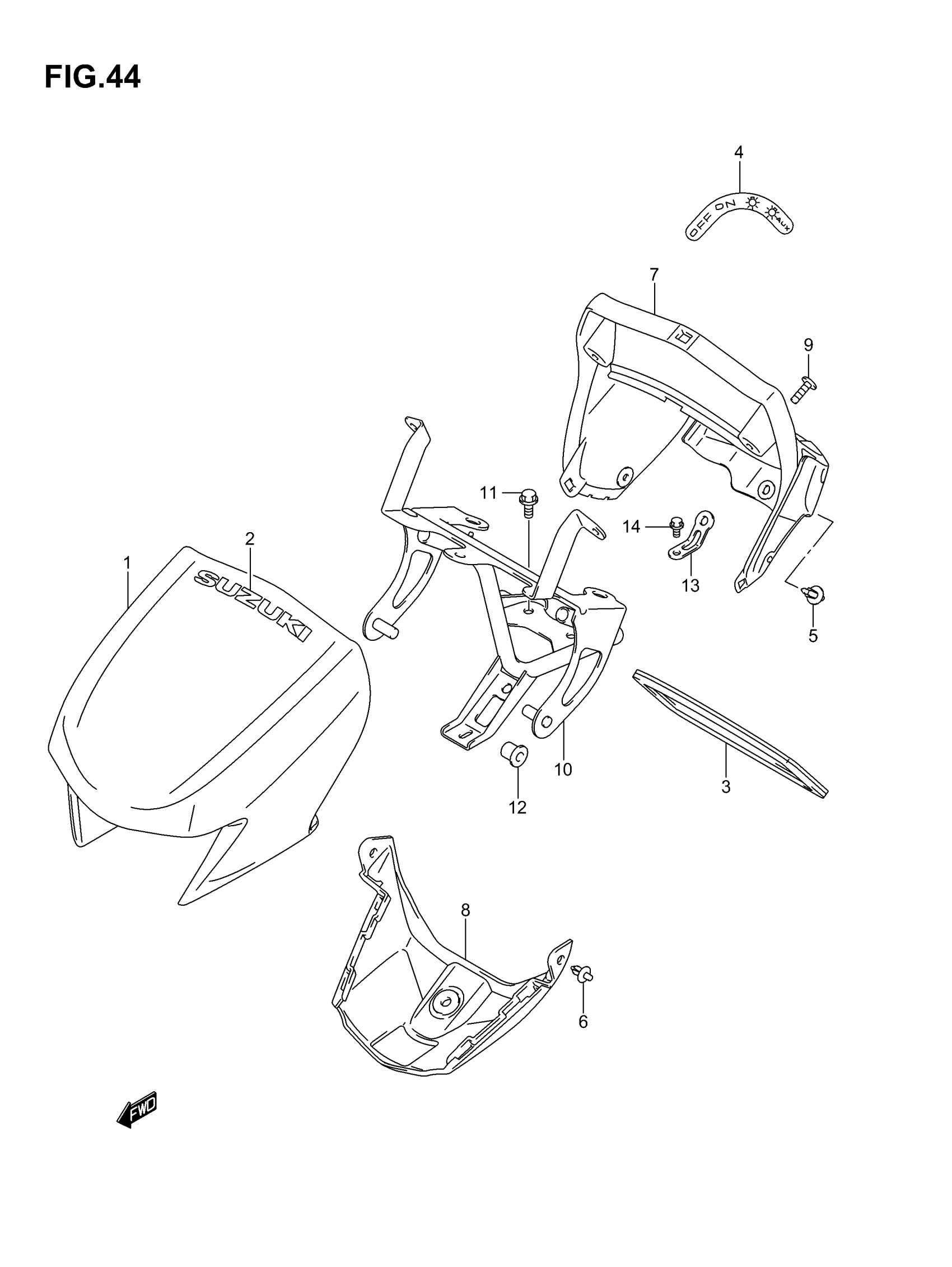

Suzuki LT-A700X (2007) HANDLE COVER Diagram

#

Description
Price

1

COVER,HANDLE FR This part replaces 56311-31G00-YT9.

56311-31G04-YT9

$60.61

1

COVER,FRONT HAN | MODEL K6 This part replaces 56311-31G00-019.

56311-31G03-YLZ

$93.10

1

COVER,FRONT HAN This part replaces 56311-31G00-YLG.

56311-31G03-YLG

$33.42

1

NO DESCRIPTION AVAILABLE This part replaces 56311-31GC0-YKL.

56311-31GC1-YKL

Unavailable

1

COVER,FRONT HAN | MODEL K7 This part replaces 56311-31G00-YLZ.

56311-31G03-YLZ

$93.10

1

COVER,HANDLE,FR | MODEL K7 P28 This part replaces 56311-31G00-YU1.

56311-31G02-YU1

$37.23

2

EMBLEM,SUZUKI | MODEL K6 This part replaces 68171-03G20-20H.

68171-03G21-20H

$17.12

2

EMBLEM,"SUZUKI" | MODEL K7 This part replaces 68171-03G20-YD8.

68171-03G21-YD8

$12.70

2

EMBLEM (SILVER) | MODEL K6 FOR YKL

68171-03GA0-20H

Unavailable

2

EMBLEM (SILVER) | MODEL K7 FOR YKL

68171-03GA0-YD8

Unavailable

3

MOLDING

56317-31G00

$23.23

4

LABEL,HANDLE CO This part replaces 56322-31G00.

56322-31G01

$8.45

5

CLIP (BLACK)

09409-06314-5PK

$2.80

6

CLIP

09409-07333

$2.29

7

COVER, HANDLE REAR (BLACK) This part replaces 56321-31G00-291.

56321-31G01-291

$86.86

8

COVER, HANDLE LOWER (BLACK)

56331-31G00-291

$13.29

9

SCREW

09132-05053

$2.26

10

BRACE, COVER | %F.NO.5SAAP41A67110000 This part replaces 56160-31G10.

56160-31G21

$106.84

10

BRACE, COVER | F.NO.5SAAP41A67110001% This part replaces 56160-31G20.

56160-31G21

$106.84

11

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.31

12

CUSHION This part replaces 09320-07016.

09320-07020

$1.21

13

BRACKET, METER COVER

56191-31G00

$8.73

14

BOLT This part replaces 01550-06103.

01550-0610A

$1.97
