2007 Suzuki LT-A700X Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 2007 Suzuki LT-A700X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

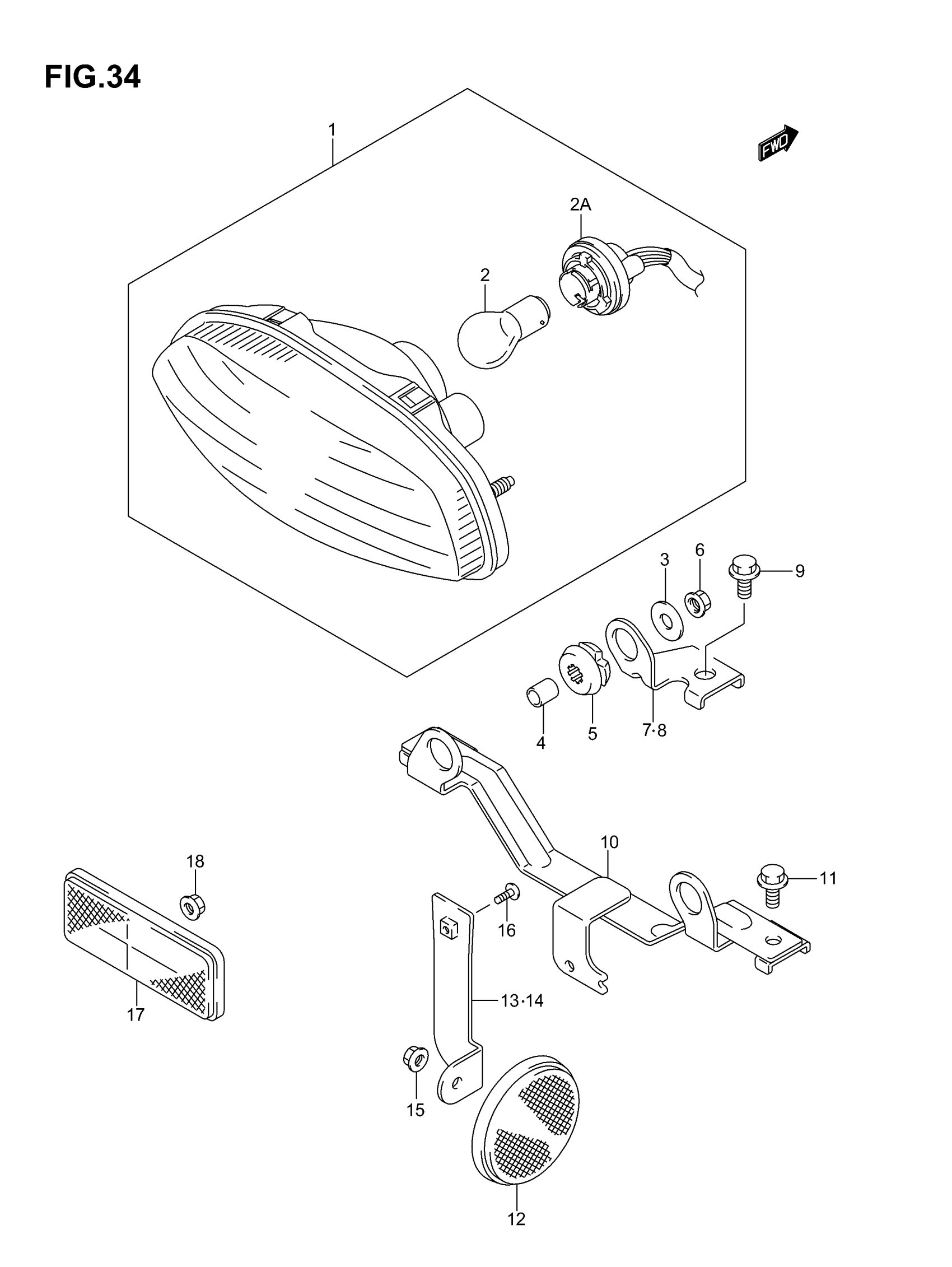

2007 Suzuki LT-A700X Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMB | Includes Item(s) 2 - 2A

35710-31G00

1
Out of stock

2

BULB (12V,21/5W)

09471-12128

1
Out of stock

2A

SOCKET & CORD

35718-03G30

1
Out of stock

3

WASHER, REAR COMB LAMP | 6.5X20X1.2

09160-06077

2
Out of stock

4

SPACER, REAR COMB | 6.5X9X10.5

09180-06264

2
Out of stock

5

CUSHION, REAR COMB

09320-09018

2
Out of stock

6

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

7

BRACKET, REAR COMB LAMP, R | P33

35726-31G40

1
Out of stock

8

BRACKET, REAR COMB LAMP, L | P33

35726-31G50

1
Out of stock

9

BOLT, REAR COMB BRACKET | P33

01550-0612A

2
Out of stock

10

BRACKET, REAR COMB | P28

35726-31G10

1
Out of stock

11

BOLT, REAR COMB BRACKET | P28

01550-0612A

2
Out of stock

12

REFLECTOR ASSY, REAR SIDE | P28

35970-14A10

2
Out of stock

13

BRACKET, REAR SIDE RR, R | P28

35975-31G00

1
Out of stock

14

BRACKET, REAR SIDE RR, L | P28

35976-31G00

1
Out of stock

15

NUT | P28 This part replaces 08316-10053.

08316-1005A

2
Out of stock

16

SCREW, RR SIDE RR BKT | P28

09125-05073

2
Out of stock

17

REFLECTOR ASSY, RR SIDE | P28 This part replaces 35970-07F00.

35970-07F01

1
Out of stock

18

NUT, REAR RR | P28

08316-1005A

1
Out of stock
