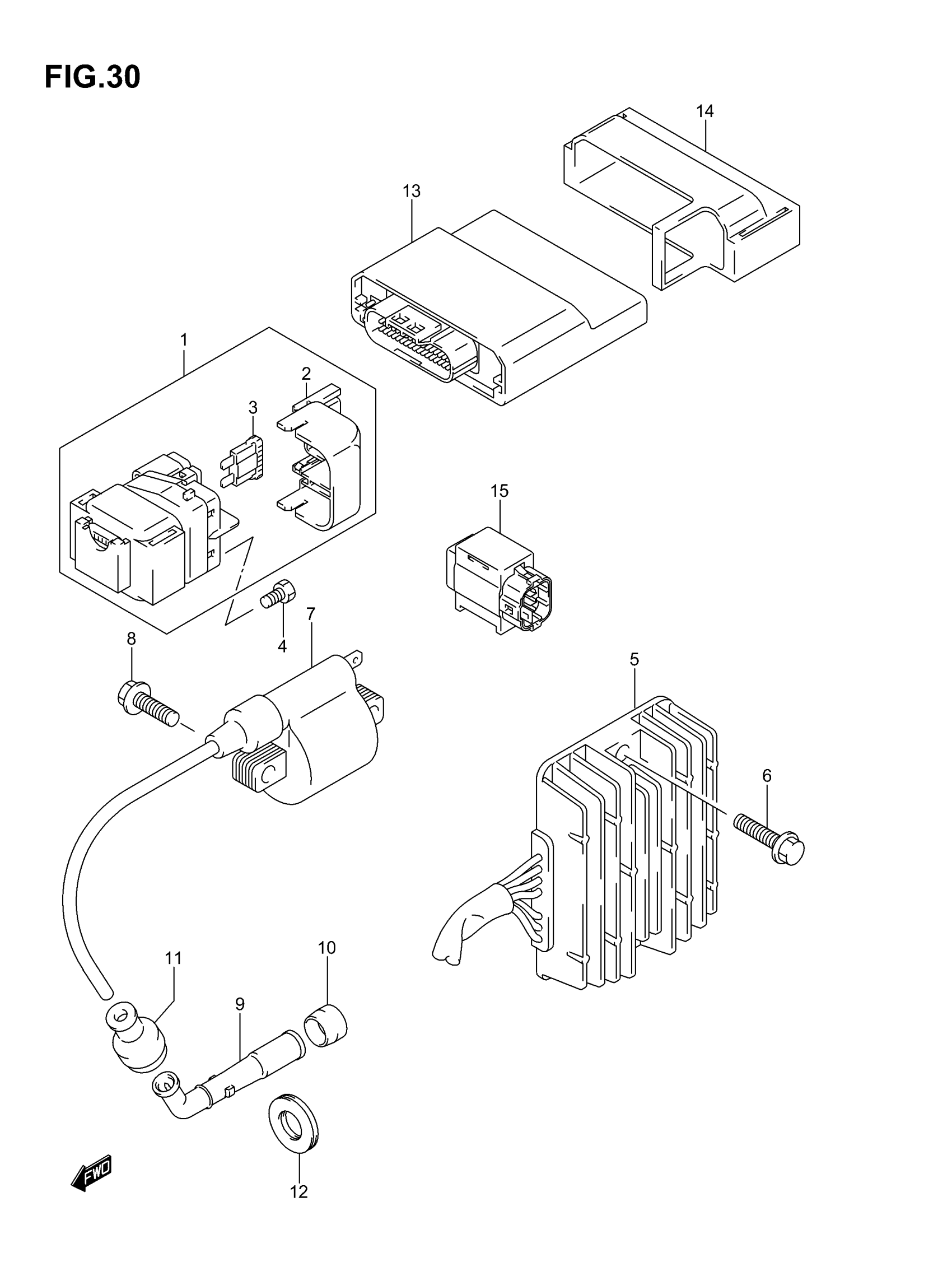

Suzuki LT-A700X (2007) ELECTRICAL (%F.NO.5SAAP41A 67110000) Diagram

#

Description

Price

1

RELAY ASSY, STARTING MOT | Includes Item(s) 2 - 3

31800-35F00

$95.29

2

COVER, STARTER RELAY

31861-26E00

$4.09

3

FUSE (30A)

09481-30101

$2.35

4

BOLT, STARTING MOTOR (6X8)

09128-06013

$1.28

5

RECTIFIER ASSY This part replaces 32800-41F10.

32800-47H00

$250.53

6

SCREW This part replaces 02162-06253.

02162-0625A

$1.68

7

COIL ASSY, IGNITION

33410-19B10

$94.08

8

BOLT This part replaces 01550-06203.

01550-0620A

$2.01

9

CAP ASSY,SPARK PLUG

33510-17G00

$32.01

10

SEAL, SPARK PLUG CAP

33541-23E01

$6.06

11

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.15

12

COVER,SPARK PLUG CAP

33543-33E01

$4.34

13

CONTROL UNIT,FI This part replaces 32920-31GA0.

32920-31GA1

$584.13

14

HOLDER, FI CONTROL UNIT

32980-31G00

$17.22

15

SENSOR ASSY,FUEL CUT

33960-06G10

$86.01
