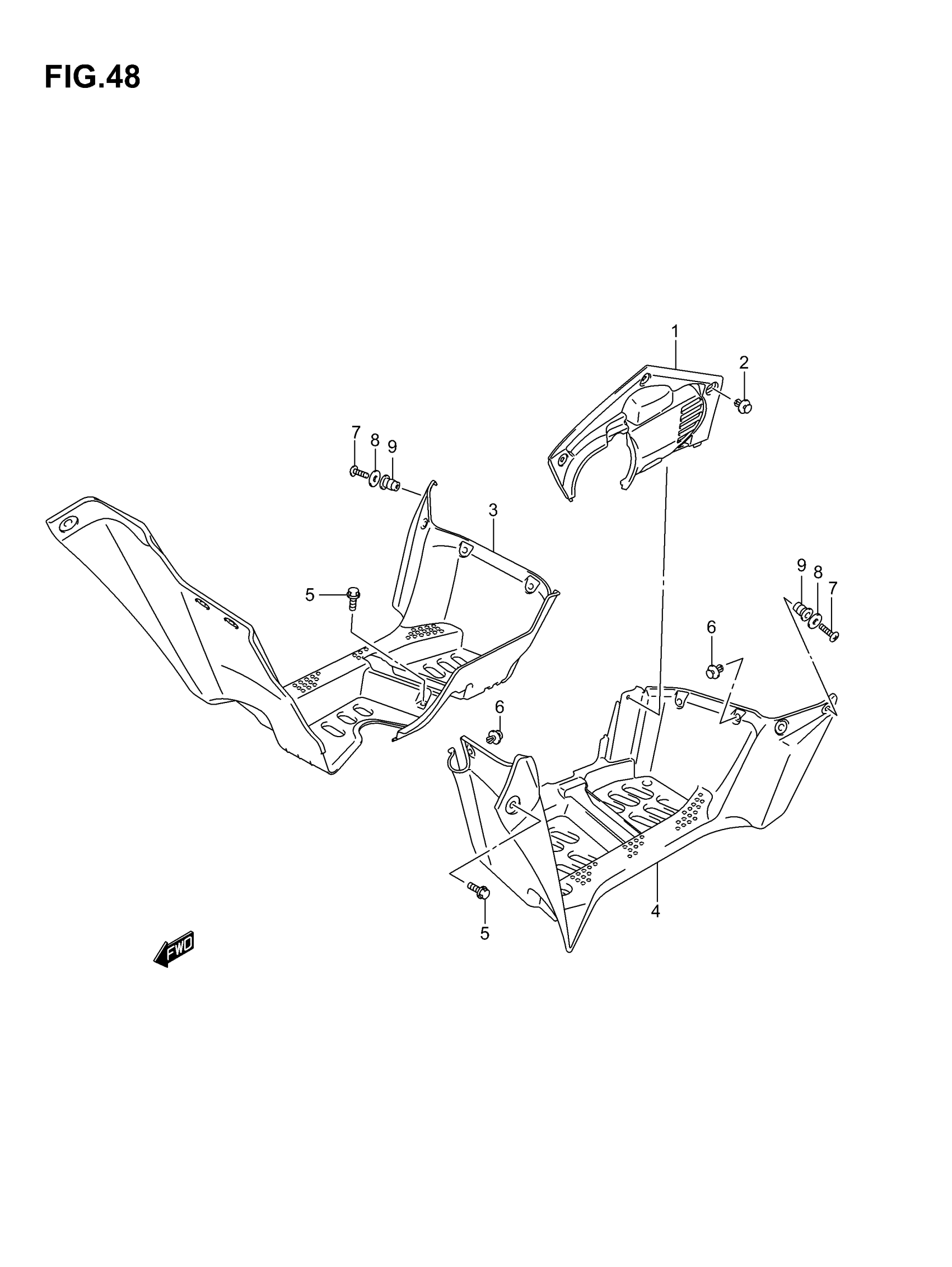

Suzuki LT-A700X (2007) MUDGUARD Diagram

#

Description

Price

1

LID (BLACK) This part replaces 63342-31G00-291.

63342-31G02-291

$102.07

2

CLIP | MODEL K6

09409-07333

$2.31

2

CLIP | MODEL K7

09409-08335

$2.47

3

MUDGUARD,FRONT This part replaces 63331-31G00-291.

63331-31G03-291

$47.34

4

MUDGUARD,FRONT This part replaces 63341-31G00-291.

63341-31G03-291

$158.41

5

BOLT, GUARD

09111-06088

$2.03

6

CLIP

09409-08335

$2.47

7

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.78

8

WASHER

09160-05046

$1.92

9

NUT

09159-05019

$7.14
