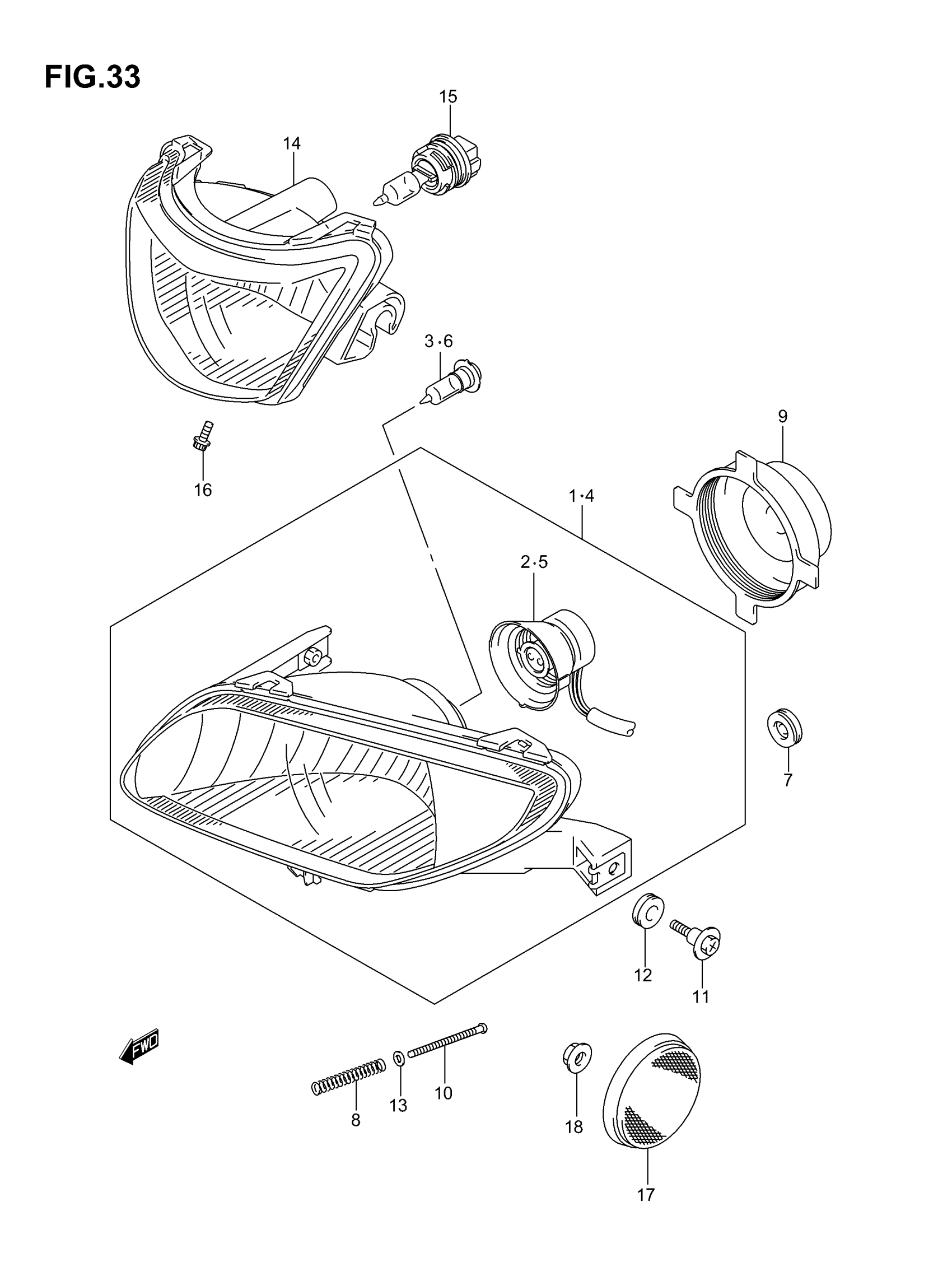

Suzuki LT-A700X (2007) HEADLAMP (MODEL K6 %F.NO.5SAAP41A 67110000) Diagram

#

Description
Price

1

HEADLAMP ASSY, R | Includes Item(s) 2 This part replaces 35100-31G00-999.

35100-31G60-999

$228.10

2

CORD ASSY, R

35171-31GR0

$40.98

3

BULB (12V,30/30W) This part replaces 09471-12097.

09471-12093

$29.38

4

HEADLAMP ASSY, L | Includes Item(s) 5 This part replaces 35300-31G00-999.

35300-31G60-999

$228.10

5

CORD ASSY, L

35171-31GL0

$39.48

6

BULB (12V,30/30W) This part replaces 09471-12097.

09471-12093

$29.38

7

GROMMET, HEADLAMP HOUSING

09308-07011

$2.62

8

SPRING, HEADLAMP ADJUST

35154-31300

$3.70

9

COVER,HEADLAMP HOUSING

35174-31G00

$10.62

10

SCREW, HEADLAMP ADJUST | 4X50

09125-04031

$2.28

11

SCREW, HEADLAMP | 6X22.5

09139-06118

$3.25

12

CUSHION

09320-10501

$6.23

13

WASHER This part replaces 08322-01043.

08322-0104A

$1.91

14

HEADLAMP ASSY, AUX

35100-31GA0-999

$137.32

15

BULB (12V,40/40W)

09471-12217

$55.97

16

BOLT This part replaces 07120-05123.

07120-0512B

$2.61

17

REFLEX REFLECTOR ASSY, FR SID | P28 This part replaces 35950-14A10.

35950-14A11

$15.23

18

NUT | P28 This part replaces 08316-10053.

08316-1005A

$2.19
