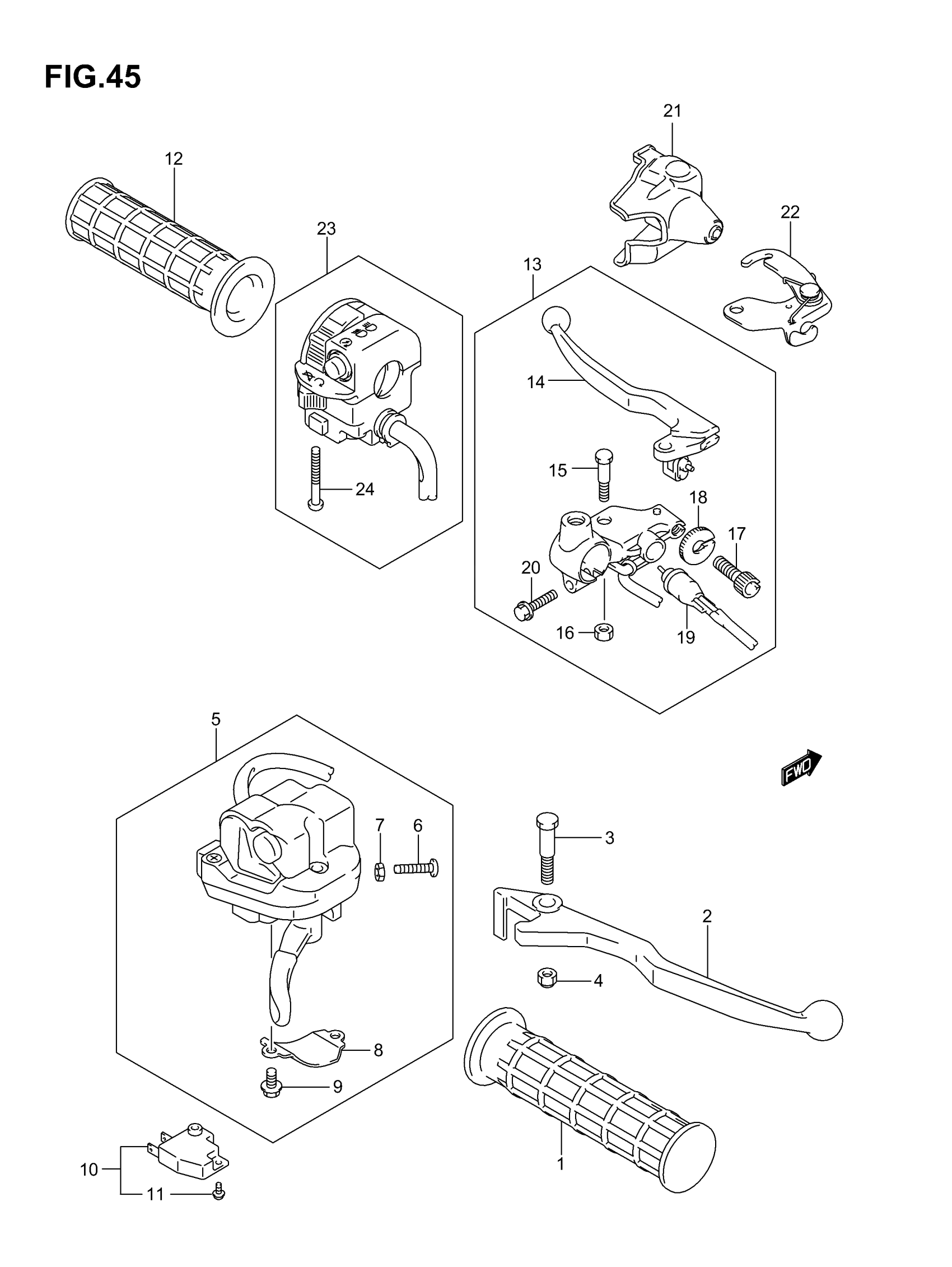

Suzuki LT-A700X (2007) HANDLE LEVER Diagram

#

Description
Price

1

GRIP, HANDLE | MODEL K6 This part replaces 57211-21G00.

57211-21G10

$10.15

1

GRIP, HANDLE | MODEL K7 This part replaces 57211-21G00.

57211-21G10

$10.15

2

LEVER,FRONT BRAKE

57421-39D20

$23.07

3

BOLT,BRAKE LEVER PIVOT

57431-04F00

$6.28

4

NUT,LEVER PIVOT

57433-09F00

$3.56

5

CASE ASSY, THROTTLE | Includes Item(s) 6 - 9

57100-31G01

$259.72

6

SCREW This part replaces 02112-05203.

02112-0520B

$1.84

7

NUT This part replaces 08310-00053.

08310-0005A

$1.84

8

HOLDER

57126-07G00

$29.10

9

BOLT

57127-07G00

$11.95

10

SWITCH ASSY,FR BRAKE | Includes Item(s) 11 This part replaces 57460-17C11.

57460-14J02

$38.46

11

SCREW

57465-17C00

$2.19

12

GRIP, HANDLE | MODEL K6 This part replaces 57211-21G00.

57211-21G10

$10.15

12

GRIP | MODEL K7

57211-21G10

$10.15

13

LEVER ASSY,REAR | Includes Item(s) 14 - 20 This part replaces 57500-38FC0.

57500-38FC1

$89.28

14

LEVER SET, BRAKE

57620-21821

$50.23

15

.BOLT,PIVOT

57431-09F00

$12.90

16

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

17

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

$11.64

18

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

$8.36

19

SWITCH ASSY, STOP

57560-38FA1

$68.60

20

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

21

COVER,BRAKE LEVER This part replaces 57541-38FA0.

57541-38FA1

$8.70

22

.STOPPER,BRAKE LEVER

57790-38FA0

$45.37

23

SWITCH ASSY, LH | Includes Item(s) 24

37400-31G00

$142.00

24

SCREW This part replaces 02112-05353.

02112-0535B

$2.23
