Description

Price

1

GRILLE,FRONT This part replaces 53118-31G00-291.

53118-31G05-291

$169.30

2

EMBLEM, "S"

68151-03G40

$17.03

3

CLIP | MODEL K6

09409-07333

$2.31

3

CLIP, FRONT | MODEL K6

09409-08335

$2.47

3

CLIP, FRONT | MODEL K7

09409-08335

$2.47

4

HOUSING,FRONT L | P33 This part replaces 53281-31G00-291.

53281-31G04-291

$75.16

4

HOUSING,FRONT L | P28 This part replaces 53281-31G10-291.

53281-31G04-291

$75.16

5

HOUSING, FRONT LH (BLACK) | P33 This part replaces 53284-31G00-291.

53284-31G01-291

$29.06

5

HOUSING, FRONT LH (BLACK) | P28

53284-31G10-291

Unavailable

6

BOLT This part replaces 01550-06303.

01550-0630A

$2.32

7

WASHER

09169-06073

$3.42

8

SPACER

09169-06074

$7.95

9

CUSHION (11.5X32X12.2) This part replaces 09320-11019.

09320-11021

$4.17

10

COVER,FRONT LAM This part replaces 53282-31G00-291.

53282-31G03-291

$17.40

11

COVER,FRONT LAM This part replaces 53283-31G00-291.

53283-31G03-291

$30.75

12

BOLT

09139-06118

$3.25

13

CUSHION

09320-10501

$6.23

14

SCREW, BRACKET This part replaces 03242-05163.

03241-0516A

$1.49

15

NUT

09148-05038

$1.97

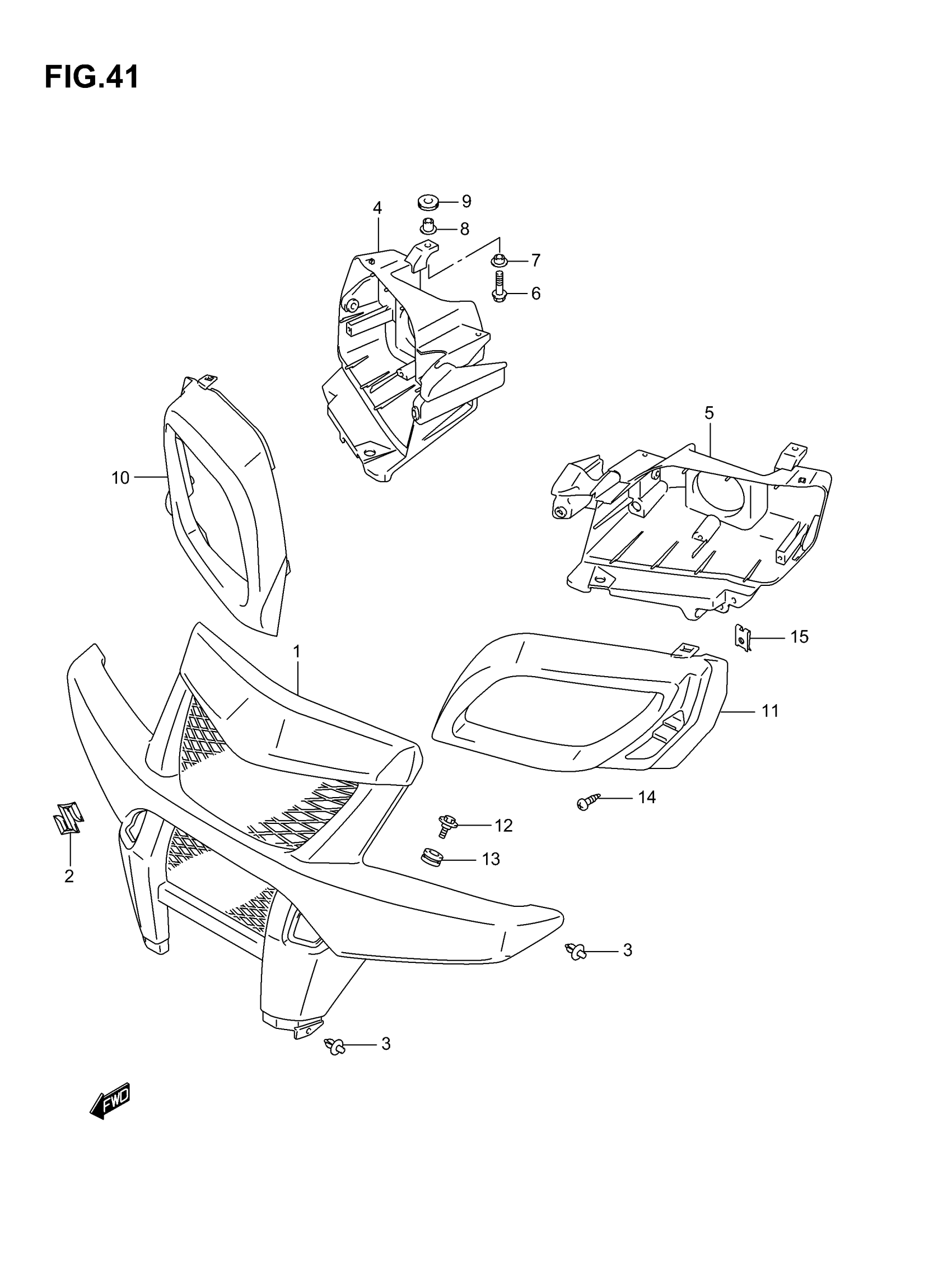

Suzuki LT-A700X (2007) FRONT GRILLE Diagram
