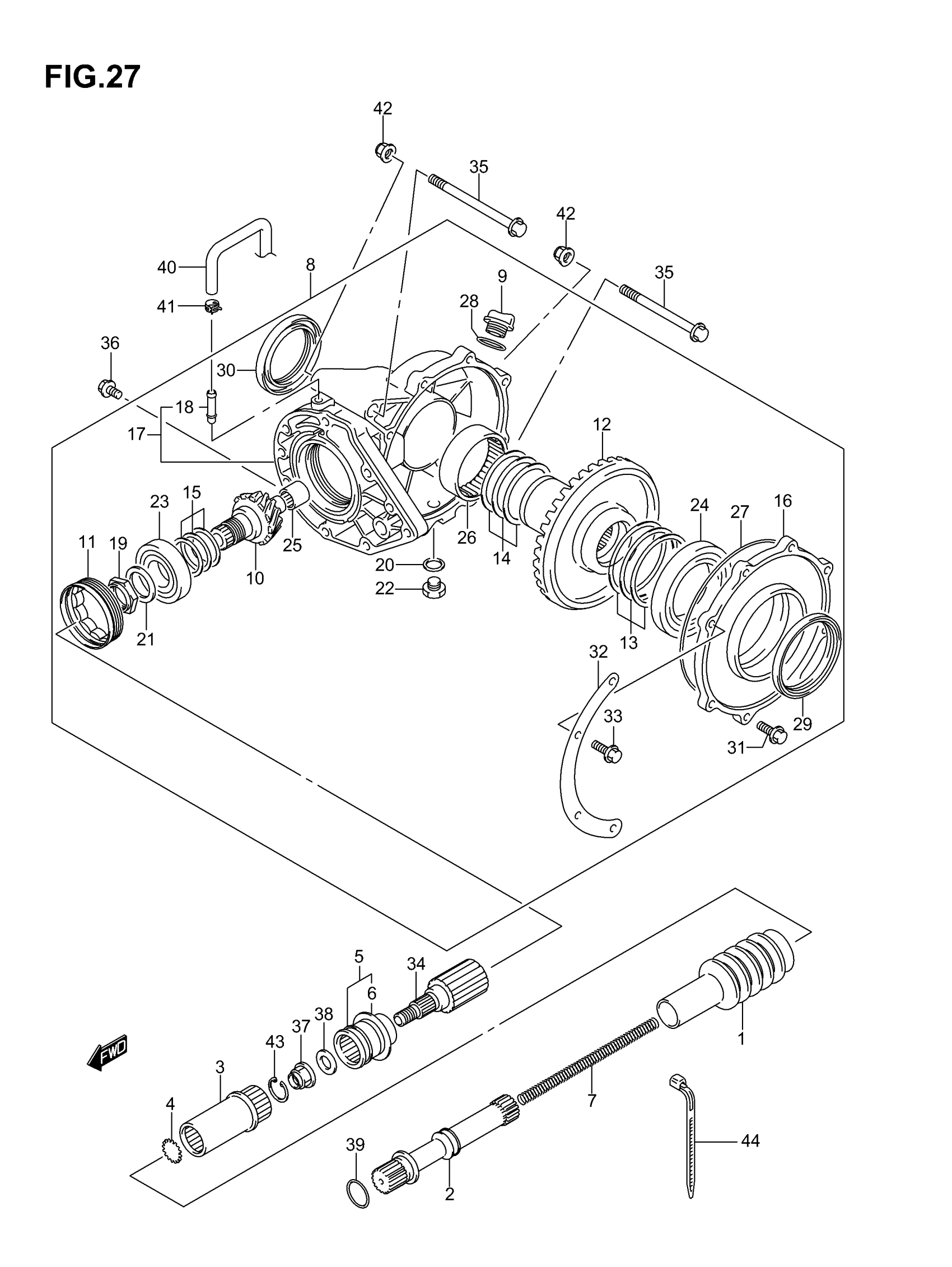

Suzuki LT-A700X (2007) FINAL BEVEL GEAR (REAR)(MODEL K6 %F.NO.5SAAP41 67110000) Diagram

#

Description
Price

1

BOOT,JOINT SHAF This part replaces 27153-31G10.

27153-31G11

$19.63

2

SHAFT, REAR PROPELLER

27155-31G00

Unavailable

3

JOINT, REAR PROPELLER

27157-31G00

$68.10

4

PLATE, REAR PROP SPRING

27158-31G00

Unavailable

5

COUPLING, RR PROP SHAFT | Includes Item(s) 6

27170-31G10

$148.48

6

PLATE, OUTPUT OIL SEAL

27592-31G10

$10.55

7

SPRING, REAR PROPELLER

27192-31G00

$6.35

8

CASE ASSY, REAR FINAL GEAR | Includes Item(s) 9 - 33

27410-31G00

Unavailable

9

.PLUG This part replaces 09259-20022.

09259-20008-XC0

$7.50

10

GEAR, RR FINAL DRIVE

27311-31G00

$293.05

11

.STOPPER,FINAL DRIVE BEARING

27312-38F00

$52.73

12

GEAR, RR FINAL DRIVEN

27320-31G00

$321.27

13

SHIM SET, FINAL DRIVEN, L | T:0.30/0.35/0.40/0.50/0.60

27326-31810

$41.88

14

SHIM SET, FINAL DRIVEN, R | T:0.30/0.35/0.40/0.50/0.60

27327-31810

$38.95

15

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40/0.50/0.60

27445-24810

$28.18

16

CASE, REAR FINAL GEAR, L

27451-31G00

Unavailable

17

CASE, REAR FINAL GEAR, R

27460-31G00

Unavailable

18

UNION, CASE BREATHER

09364-08003

$3.15

19

NUT, REAR FINAL DRIVE

09140-28006

$18.03

20

GASKET, OIL DRAIN | 13.8X18.8X4.8

09168-14002

$2.26

21

WASHER, RR FINAL DR GR | 28X38X1.0

09181-28195

$4.77

22

PLUG, OIL DRAIN

09247-14013

$2.30

23

BEARING, FINAL DRIVE | 28X68X18

09262-28023

$127.87

24

BEARING, FINAL DRIVEN, L | 65X100X11.0

09262-65001

$140.28

25

BEARING (20X34X18) | 20X34X18

09263-20062

$46.98

26

BEARING, FINAL DRIVEN, R | 55X67X20

09263-55003

$108.12

27

O-RING, BEARING CASE, L | D:2.4,ID:61

09280-00029

$36.80

28

O-RING, GEAR OIL FILLER | D:3.1,ID:16.8

09280-17003

$1.65

29

SEAL, FINAL DRIVEN GEAR, L | 65X88X8

09283-65001

$26.80

30

SEAL, FINAL DRIVEN GEAR, R | 65X88X8

09283-65001

$26.80

31

BOLT, REAR FINAL GR

09103-08197

$1.70

32

PLATE, RR FINAL GR COVER

27452-31G00

Unavailable

33

BOLT, RR FINAL GR CASE | 8X40

09103-08388

Unavailable

34

SHAFT, RR FINAL DRIVE

27594-31G00

Unavailable

35

BOLT, REAR FINAL GR | 10X110

09103-10148

$6.94

36

BOLT, REAR FINAL GEAR | 10X30

09103-10313

Unavailable

37

NUT, RR PROP SHAFT COUP

09159-14010

$14.12

38

WASHER, REAR PROP SHAFT | 14X26X2.0

09181-14002

$2.93

39

.O-RING (D:3.1,ID:19.4) | D:3.1,ID:19.4

09280-20002

$1.93

40

HOSE, BREATHER

27491-31G00

$43.27

41

CLAMP, BREATHER CASE

09401-10403

$1.65

42

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

43

CIRCLIP This part replaces 08331-41226.

08331-41229

$2.97

44

CLAMP (L:165)

09407-18402

$2.19
