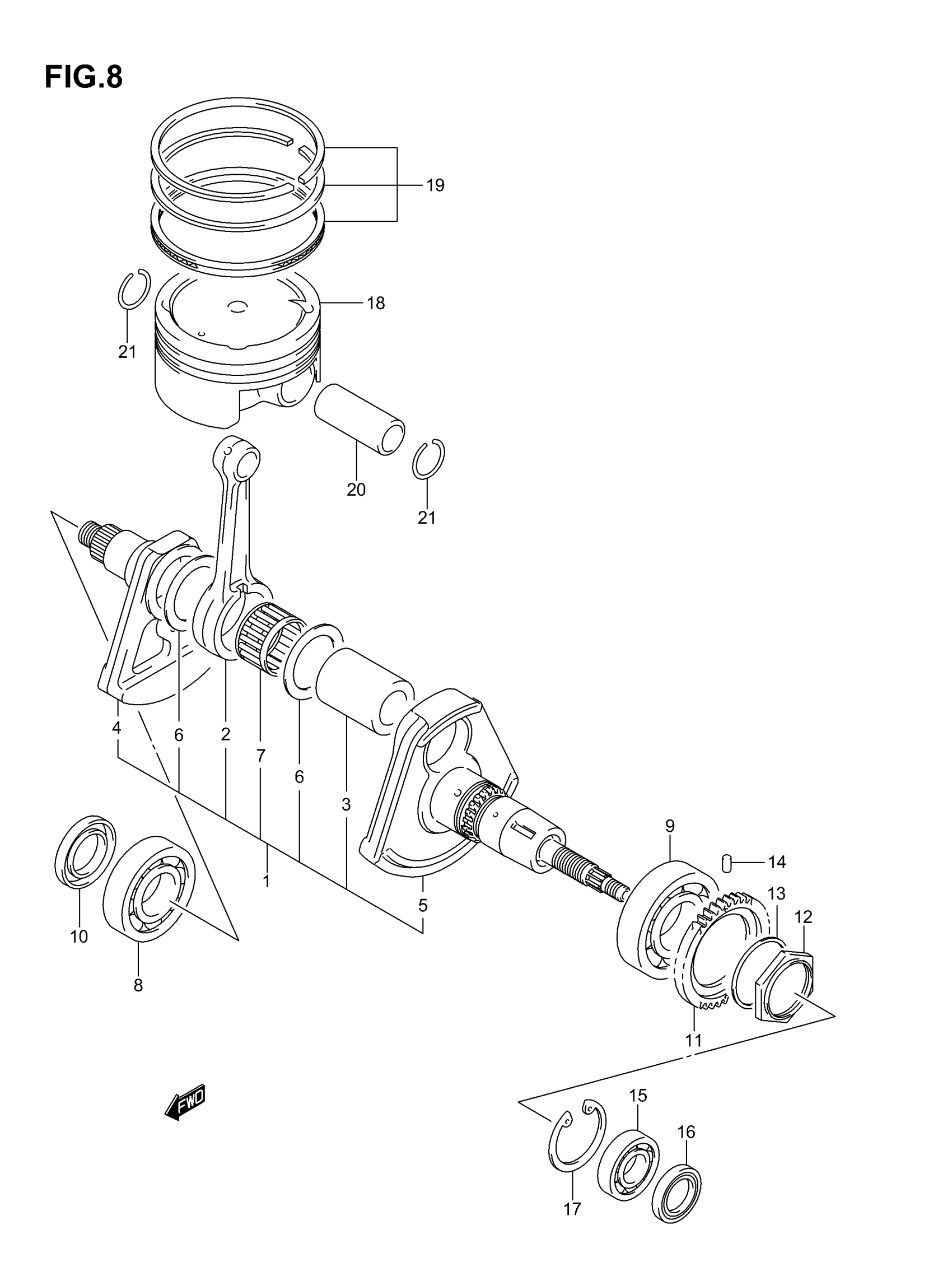

Suzuki LT-A700X (2007) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY This part replaces 12200-31G00.

12200-31G12

$1,071.80

1

CRANKSHAFT ASSY | F.NO.5SAAP41A 67110001%; Includes Item(s) 2 - 7 This part replaces 12200-31G10.

12200-31G12

$1,071.80

2

.CONNROD This part replaces 12161-31G00.

12161-31G01

$160.78

3

PIN, CRANK

12210-31D00

$114.82

4

CRANKSHAFT, R This part replaces 12220-31G00.

12220-31G10

Unavailable

4

CRANKSHAFT, R | F.NO.5SAAP41A 67110001%

12220-31G10

Unavailable

5

CRANKSHAFT, L This part replaces 12261-31G00.

12261-31G10

Unavailable

5

CRANKSHAFT, L | F.NO.5SAAP41A 67110001%

12261-31G10

Unavailable

6

WASHER

09160-41002

$13.20

7

.BEARING This part replaces 09263-41006.

09263-41009

$100.93

8

BEARING This part replaces 12223-31G00.

12223-31G02

$181.17

8

BEARING | F.NO.5SAAP41A 67110001% This part replaces 12223-31G01.

12223-31G02

$181.17

9

BEARING, L

09262-45007

$104.57

10

SEAL, OIL

09282-34001

$36.72

11

GEAR, CRANK BALANCER DRIVE This part replaces 12661-31G00.

12661-31G01

$151.97

12

NUT, CRANK BALANCER DRIVE GEAR

12664-31G00

$24.03

13

WASHER

09160-45006

$6.47

14

PIN

09261-05005

$1.49

15

BEARING

09262-25006

$25.54

16

SEAL, OIL

09283-25095

$26.72

17

CIRCLIP

08331-41479

$2.31

18

PISTON

12111-31G00-0F0

$205.44

19

RING SET, PISTON

12140-31G00

$97.50

20

PIN, PISTON

12151-31G00

$23.13

21

CIRCLIP

09381-23003

$1.49
