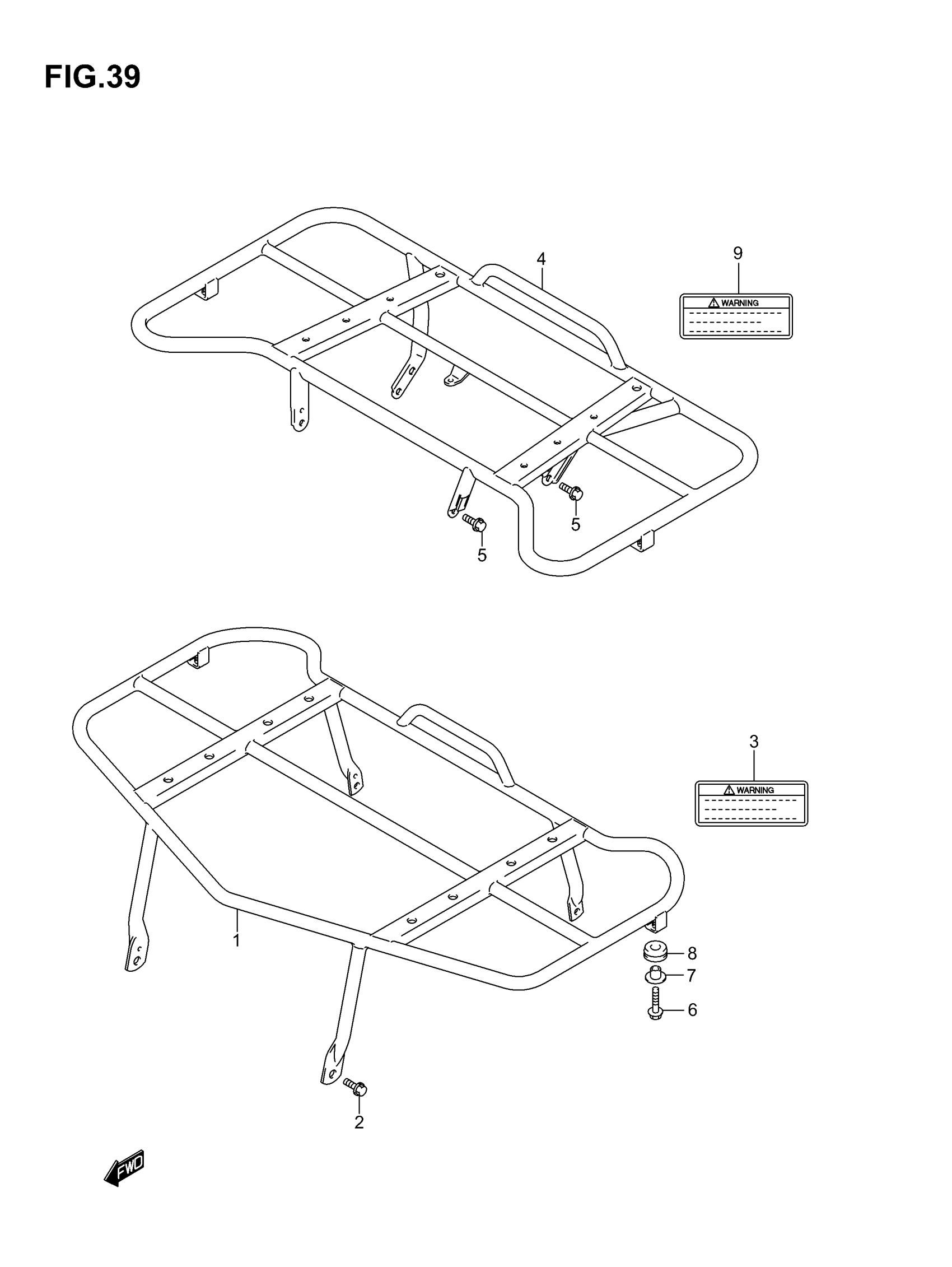

Suzuki LT-A700X (2007) CARRIER Diagram

#

Description
Price

1

CARRIER, FRONT (BLACK) | %F.NO.5SAAP41A67110000 This part replaces 46410-31G00-YH5.

46410-31G13-YSN

$266.53

1

CARRIER, FRONT (BLACK) | F.NO.5SAAP41A67110001% This part replaces 46410-31G10-YH5.

46410-31G13-YSN

$266.53

1

CARRIER, FRONT (BLACK) | MODEL K7 This part replaces 46410-31G11-YH5.

46410-31G13-YSN

$266.53

2

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

3

LABEL,FRONT CAR | P33 This part replaces 68381-19B00.

68381-19B01

$5.42

3

LABEL,WARNING F | P28 This part replaces 68381-19B20.

68381-19B21

$8.03

4

CARRIER, REAR (BLACK) | %F.NO.5SAAP41A67110000 This part replaces 46310-31G00-YH5.

46310-31G32-YSN

$312.27

4

CARRIER, REAR (BLACK) | F.NO.5SAAP41A67110001% This part replaces 46310-31G30-YH5.

46310-31G32-YSN

$312.27

4

CARRIER, REAR (BLACK) | MODEL K7 This part replaces 46310-31G31-YH5.

46310-31G32-YSN

$312.27

5

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

6

BOLT, LOWER

09116-06147

$3.20

7

SPACER

09180-06120

$2.32

8

CUSHION

09320-11008

$2.60

9

LABEL,REAR CARR | P33 This part replaces 68391-19B00.

68391-19B01

$5.60

9

LABEL, REAR CARRIER (FRENCH) | P28

68391-19B20

Unavailable
