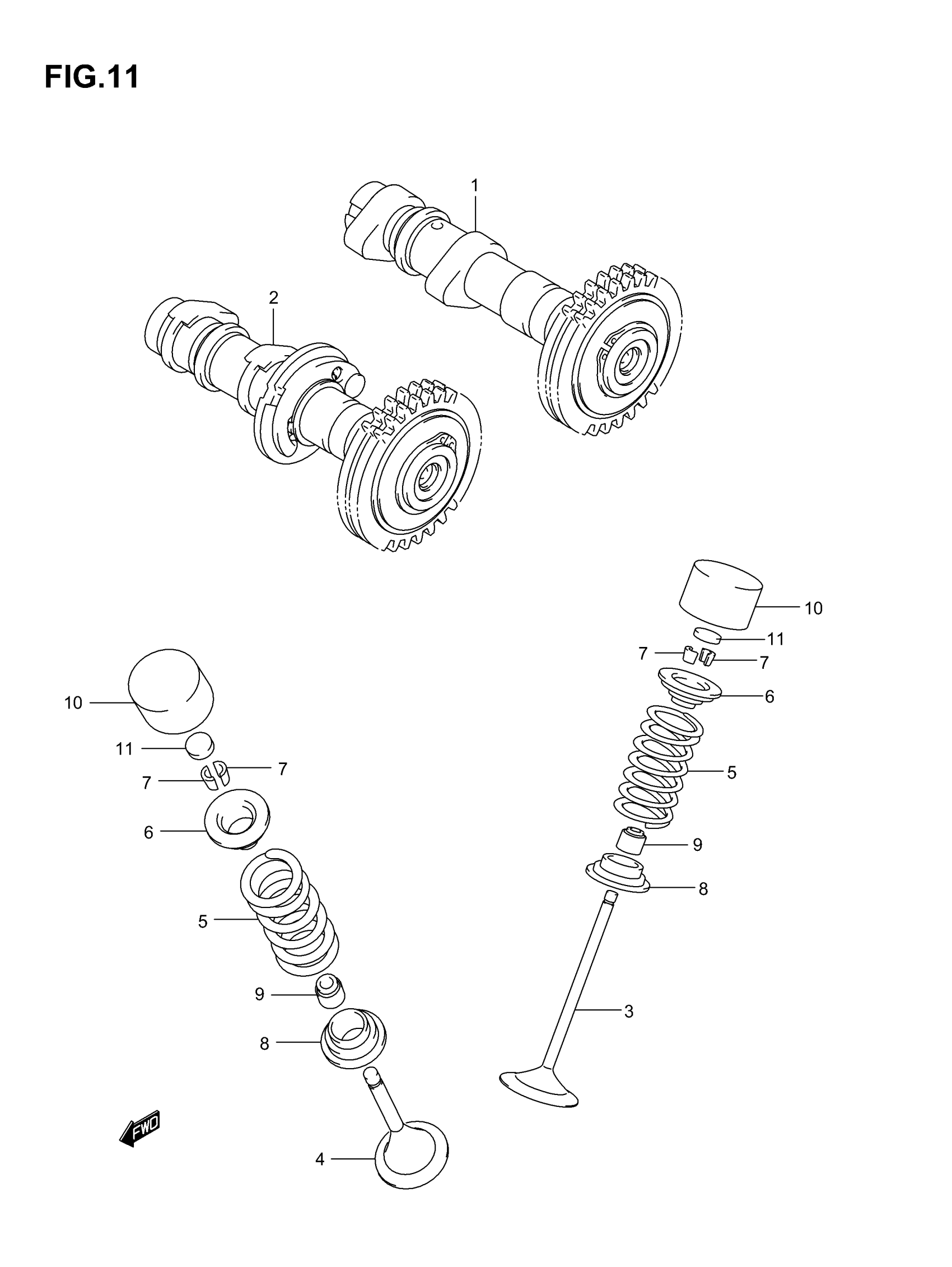

Suzuki LT-A700X (2007) CAMSHAFT-VALVE Diagram

#

Description
Price

1

CAMSHAFT, INTAKE

12710-31G00

$488.28

2

CAMSHAFT, EXHAUST

12720-31G00

$621.97

3

VALVE,INTAKE

12911-31G00

$47.57

4

VALVE,EXHAUST

12912-31G00

$74.87

5

SPRING,VALVE

12921-31G00

$15.17

6

RETAINER,VALVE SPRING

12931-02F10

$15.16

7

COTTER, VALVE

12932-24400

$1.94

8

SEAT,VALVE SPRING

12933-38400

$5.44

9

SEAL, OIL

09289-05015

$6.70

10

TAPPET This part replaces 12891-02F00.

12891-02F10

$52.61

11

SHIM, TAPPET

12892-41C00-230

$11.38

11

SHIM, TAPPET

12892-41C00-235

$11.83

11

SHIM, TAPPET

12892-41C00-240

$11.83

11

SHIM, TAPPET

12892-41C00-245

$11.83

11

SHIM, TAPPET

12892-41C00-250

$11.83

11

SHIM, TAPPET

12892-41C00-255

$11.83

11

SHIM, TAPPET

12892-41C00-260

$11.38

11

SHIM, TAPPET

12892-41C00-265

$11.38

11

SHIM, TAPPET

12892-41C00-270

$11.38

11

SHIM, TAPPET

12892-41C00-275

$9.69

11

SHIM, TAPPET

12892-41C00-280

$11.38

11

SHIM, TAPPET

12892-41C00-285

$11.83

11

SHIM, TAPPET

12892-41C00-290

$11.38

11

SHIM, TAPPET

12892-41C00-295

$11.83

11

SHIM, TAPPET

12892-41C00-300

$11.60

11

SHIM, TAPPET

12892-41C00-305

$11.83

11

SHIM, TAPPET

12892-41C00-310

$11.38

11

SHIM, TAPPET

12892-41C00-315

Unavailable

11

SHIM, TAPPET

12892-41C00-320

$11.60

11

SHIM, TAPPET

12892-41C00-325

$11.83

11

SHIM, TAPPET

12892-41C00-330

$11.83

11

SHIM, TAPPET

12892-41C00-335

$11.83

11

SHIM, TAPPET

12892-41C00-340

$11.83

11

SHIM, TAPPET

12892-41C00-345

Unavailable

11

SHIM, TAPPET

12892-41C00-350

$11.83

12

SHIM SET, TAPPET INC.REF.NO.11-4%11-25 (5PCS.EACH) & NO.13 | OPT NOT SHOWN; Includes Item(s) 13

12800-41810

$1,138.37

13

CASE, TAPPET SHIM | OPT NOT SHOWN

99000-69471

Unavailable
