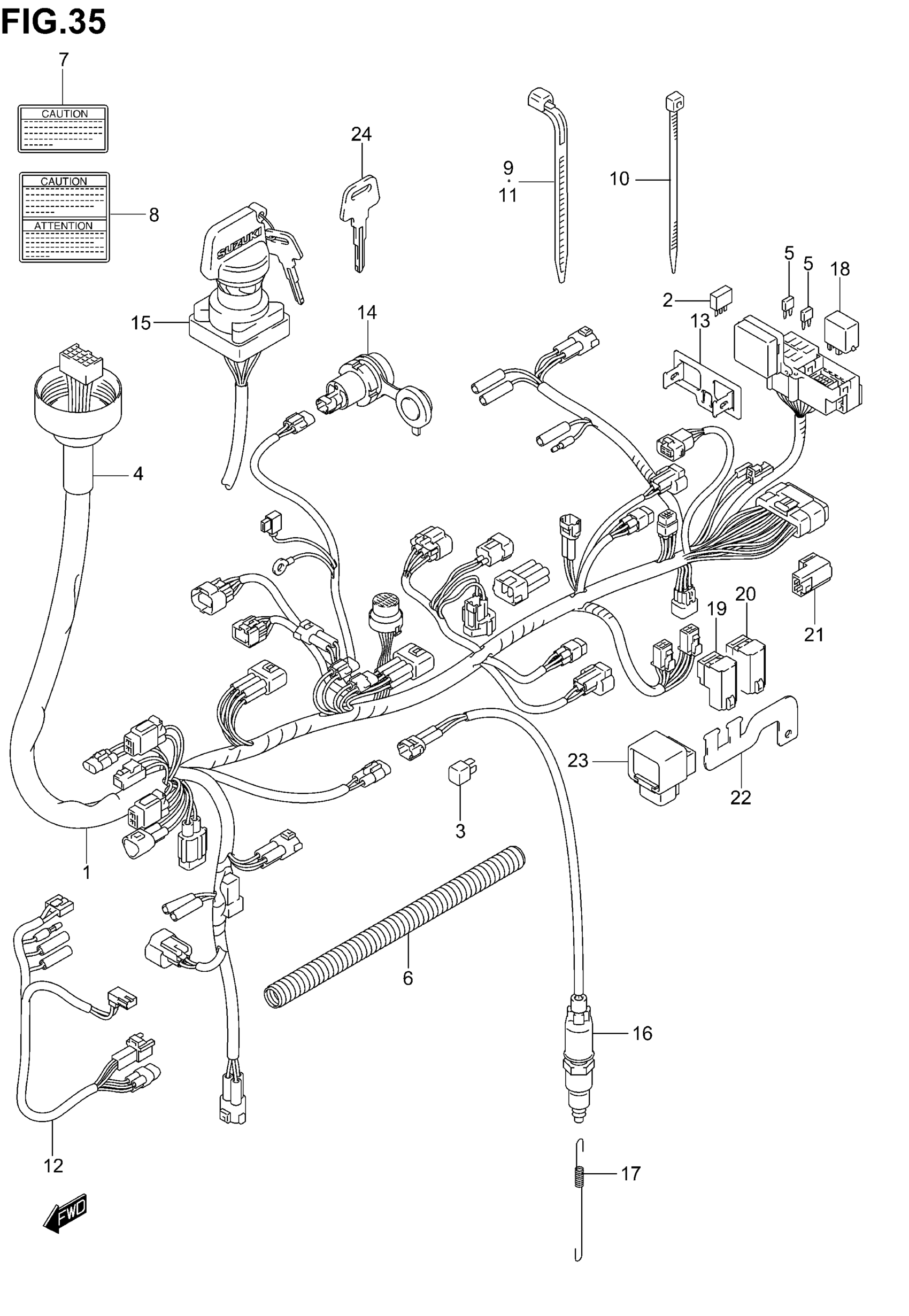

Suzuki LT-A700X (2005) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS,WIRING | Includes Item(s) 2 - 5 This part replaces 36610-31G00.

36610-31G03

$459.66

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

3

RECTIFIER ASSY

32800-16A00

$23.07

4

COVER

36618-31G00

Unavailable

5

FUSE (10A)

09481-10501

$2.06

5

FUSE (15A)

09481-15501

$2.02

6

GUIDE, WIRING HARNESS

36619-31G00

$18.08

7

LABEL, CAUTION MAX AMP

38852-09F30

Unavailable

8

LABEL, CAUTION MAX AMP | E28

38852-03G10

Unavailable

9

CLAMP (L:95)

09407-11401

$2.63

9

CLAMP (L:125)

09407-14403

$2.26

9

CLAMP (L:165)

09407-18402

$2.19

9

CLAMP (L:235)

09407-25401

$4.66

10

CLAMP (L:145)

09407-14407

$3.57

11

CLAMP (L:190)

09407-19401

$3.05

12

WIRE, FRONT BRAKE SW LEAD

36857-03G00

$53.98

13

BRACKET, FUSE

36744-31G00

Unavailable

14

TERMINAL, POWER SOURCE

38850-03G00

$75.08

15

SWITCH ASSY,IGN This part replaces 37110-31G00.

37110-31G20

$91.75

16

SWITCH ASSY,STOP LAMP This part replaces 37740-38F00.

37740-38F01

$115.27

17

SPRING, STOP LAMP

09443-06080

$4.73

18

RELAY,NEUTRAL START

38730-09F00

$46.55

19

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

20

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

21

RELAY ASSY,FUEL This part replaces 38740-31G00.

38740-31G02

$38.13

22

BRACKET, RELAY

38741-31G00

Unavailable

23

RELAY ASSY, DRIVE

38750-31G00

$119.65

24

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

24

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

24

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$8.07

24

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$8.07
