Description

Price

1

SPACER, DRIVE SHAFT

21102-31G00

$25.95

2

RETAINER, DRIVE SHAFT, R

24741-21A00

$2.81

3

SHAFT, DRIVE This part replaces 29111-31G00.

29111-31G01

$340.33

4

SHAFT, SUB T/M COUNTER

29131-31G00

Unavailable

5

BUSH, SUB T/M DRIVEN GR LOW

29215-07G00

$22.22

6

GEAR, SUB T/M DRIVEN LOW | NT:41

29311-31G00

$133.70

7

GEAR, SUB T/M DRIVEN HIGH | NT:31

29321-31G00

$156.07

8

DOG, GEAR SHIFT HIGH This part replaces 29331-31G00.

29331-31G10

$79.27

9

SPACER, SUB T/M SELECT

29332-31G00

$44.07

10

GEAR, SUB T/M DRIVE NO.2 | NT:20

29411-31G00

$83.43

11

SCREW, RTNR DRIVE SHAFT, R | 6X12

09125-06110

$2.12

12

WASHER, SUB T/M DRIVEN

09164-34001

$7.38

13

SPACER, SUB T/M DRIVE GEAR | 25X30X7

09180-25097

$10.20

14

BEARING, SUB T/M COUNTER, R | 20X47X14

09262-20139

$44.97

15

BEARING (30X62X23.8) | 30X62X23.8

09267-30005

$119.55

16

.O-RING (D:2.4,ID:24.7) | D:2.4,ID:24.7

09280-25004

$2.03

17

SEAL, DRIVE SHAFT SPACE | 38X56X7.0

09283-38025

$31.85

18

BUSH, SUB T/M DRIVEN GR

24252-19F00

$17.12

19

BEARING, DRIVE SHAFT, L | 25X52X15

09262-25003

$24.83

20

BEARING, SUB T/M COUNTER, L

09262-25073

$25.92

21

WASHER, SUB T/M DRIVEN, R

08211-20363

$3.18

22

WASHER, SUB T/M DRIVEN, L

08211-25463

$3.78

23

CIRCLIP, SUB T/M GEAR

08331-31256

$1.49

24

RETAINER, SEC DRIVE SHAFT

24741-21A00

$2.81

25

SHAFT, SUB T/M OUTPUT

29120-31G00

$269.72

26

SCREW, RETAINER (6X12)

09125-06110

$2.12

27

SPACER, SUB T/M OUTPUT | 25X34X5.5

09180-25083

$14.18

28

BEARING, SUB T/M OUTPUT, R | 25X62X17

09262-35076

$73.67

29

SEAL,OIL (25X45X5) | 25X45X5

09283-25076

$10.19

30

BEARING, SUB T/M OUTPUT, L | 25X52X15

09262-25003

$24.83

31

GEAR, REVERSE IDLE This part replaces 24561-31G01.

24561-31G20

$102.17

32

GEAR, REVERSE DRIVEN (NT:32)

24571-31G00

$114.82

33

DOG, SUB T/M SELECT SL

24581-31G00

$86.08

34

BUSH, REVERSE DRIVEN GEAR

29215-07G00

$22.22

35

SPACER, REVERSE SELECT

29332-31G00

$44.07

36

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

37

WASHER, LOCK

09169-25001

$2.70

38

SHAFT, REVERSE IDLE

24551-31G00

$18.58

39

WASHER, REVERSE IDLE GEAR | 20X30X1.0

09181-20195

$2.60

40

BEARING, REVERSE IDLE GEAR | 20X47X14

09263-20060

$20.73

41

SENSOR, SPEED This part replaces 34990-31G00.

34990-31G01

$112.55

42

BOLT This part replaces 07130-06163.

07130-0616B

$2.39

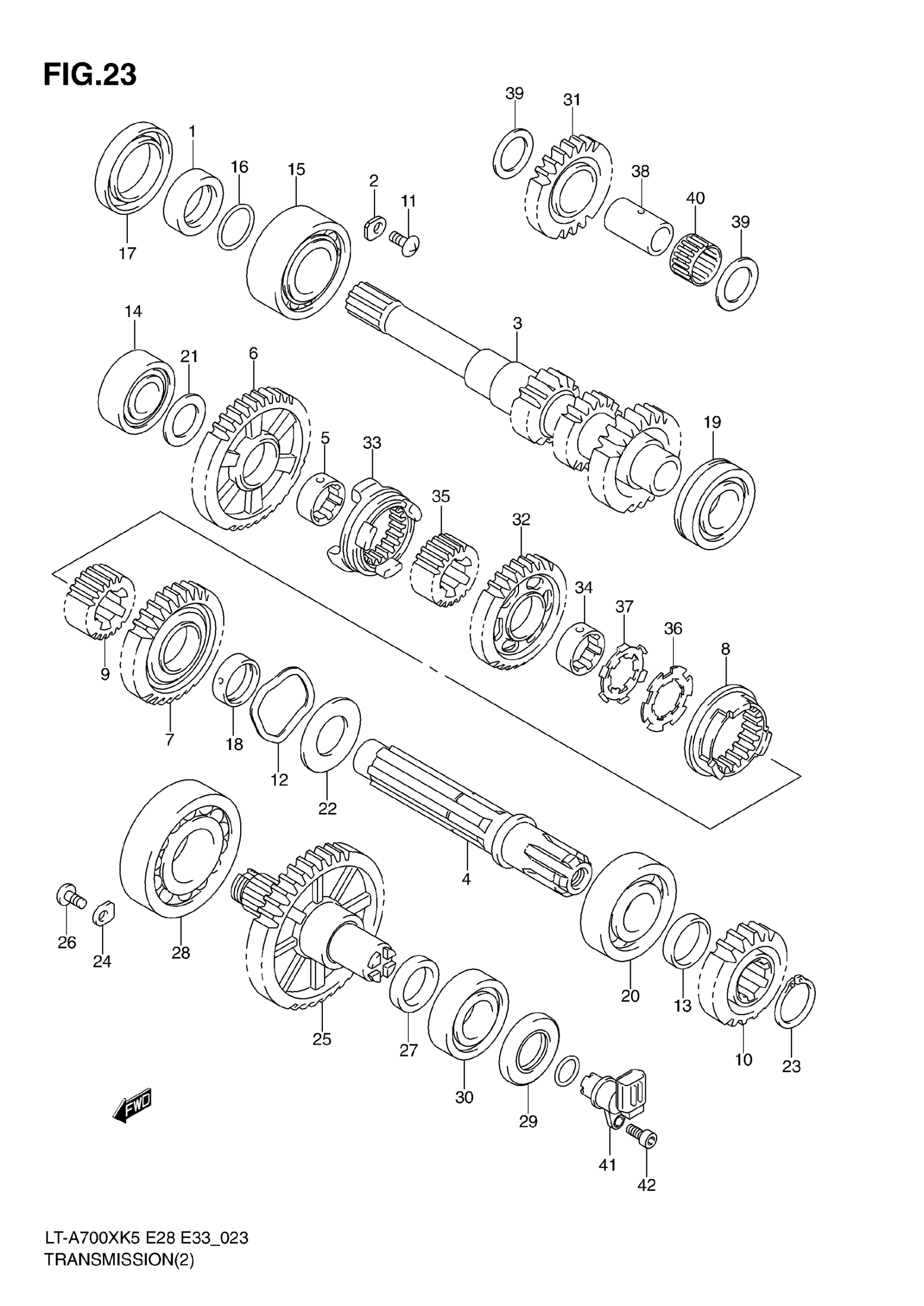

Suzuki LT-A700X (2005) TRANSMISSION (2) Diagram
