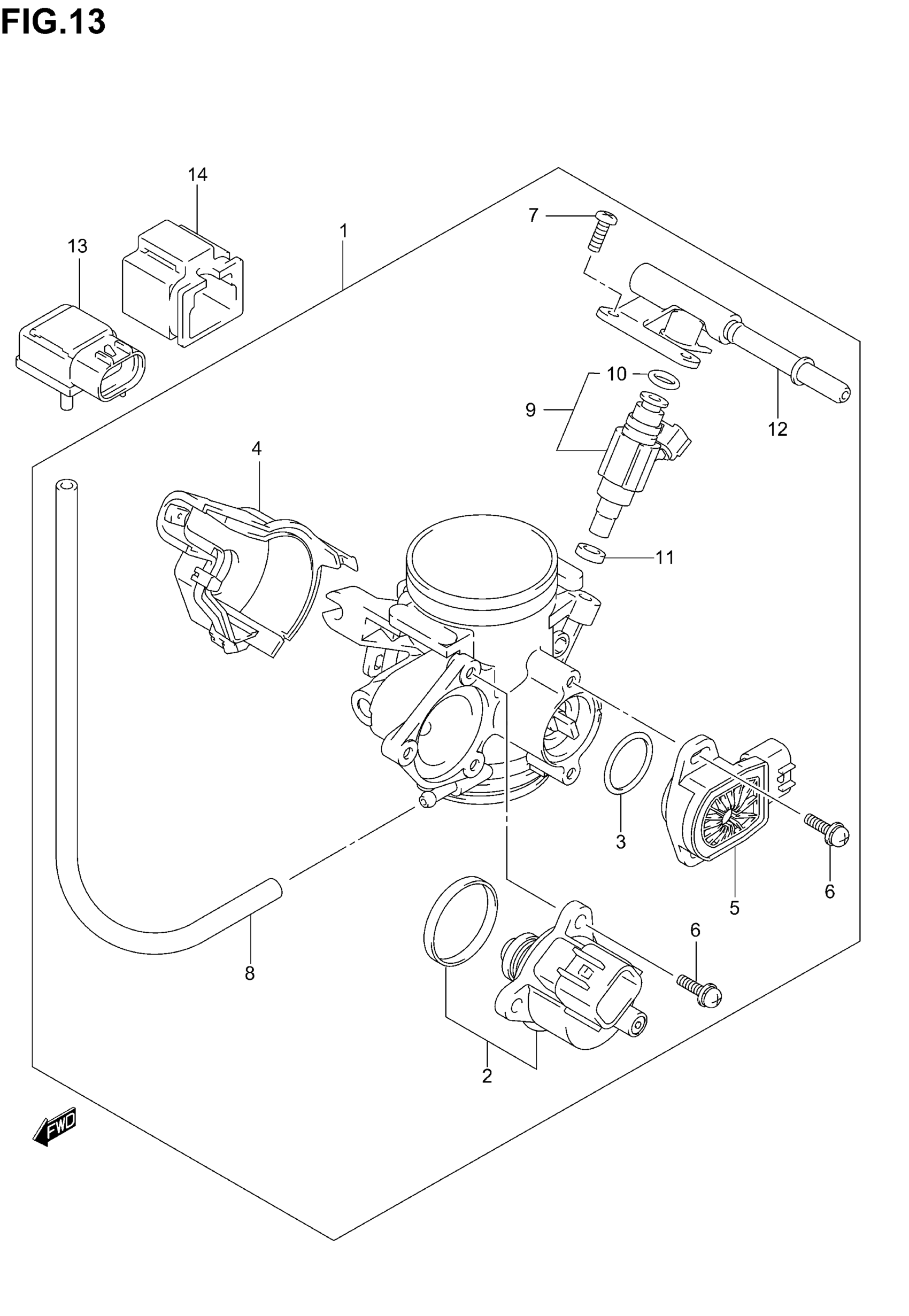

Suzuki LT-A700X (2005) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY,THROT | Includes Item(s) 2 - 12 This part replaces 13400-31G00.

13400-31G02

$912.98

2

MOTOR, ISC STEPPING

13520-31G00

$205.44

3

.O-RING

13575-31G00

$11.50

4

COVER

13578-31G00

$16.13

5

SENSOR ASSY

13580-31G00

$205.80

6

SCREW

13601-20G00

$3.05

7

SCREW

13602-06128

$2.96

8

HOSE This part replaces 13683-10F70.

13683-10F71

$11.10

9

INJECTOR ASSY This part replaces 15710-31G00.

15710-31G01

$242.90

10

O RING

15717-16G00

$11.70

11

SEAL

15722-29G00

$10.93

12

DELIVERY PIPE

15731-31G00

Unavailable

13

SENSOR, AIR PRESSURE

15620-10G00

$225.50

14

HOLDER, AIR PRESSURE

15625-10G00

$12.40
