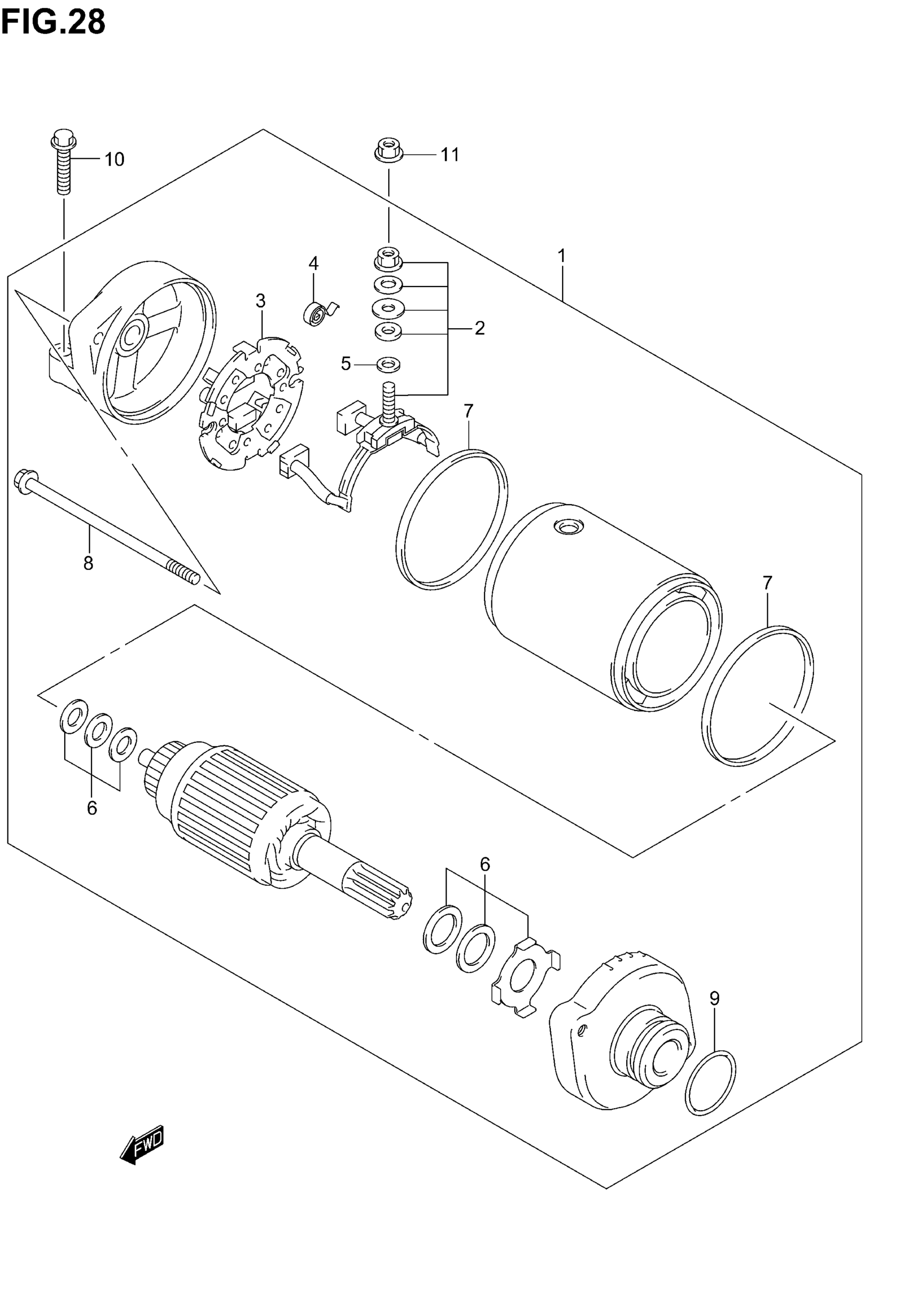

Suzuki LT-A700X (2005) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 9

31100-31G00

$753.27

2

TERMINAL SET, BRUSH

31130-38B00

$69.35

3

HOLDER SET, BRUSH

31132-38B00

$69.35

4

SPRING, BRUSH

31135-38B00

$5.40

5

O RING

31143-49040

$3.71

6

WASHER SET

31170-19B10

$12.57

7

O RING This part replaces 31264-31300.

31264-32E00

$6.68

8

BOLT

31280-26D00

$20.45

9

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

10

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

11

NUT This part replaces 08361-35068.

08361-3506A

$1.80
