2005 Suzuki LT-A700X Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 2005 Suzuki LT-A700X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

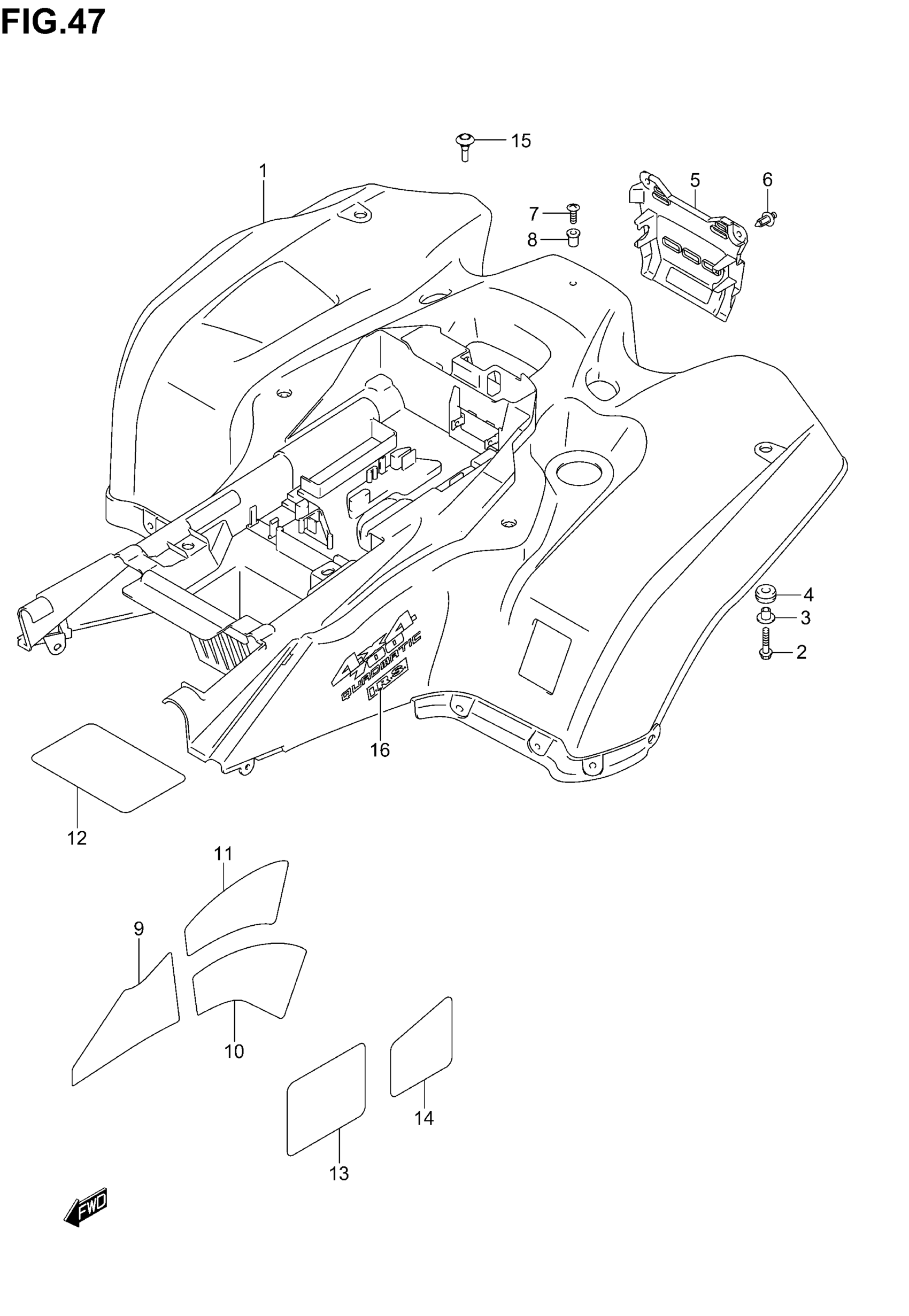

2005 Suzuki LT-A700X Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR (RED) This part replaces 63111-31G00-YT9.

63111-31G03-YT9

1
Out of stock

1

FENDER, REAR (GREEN)

63111-31G00-YT8

1
Out of stock

1

FENDER, REAR This part replaces 63111-31G00-YU1.

63111-31G03-YU1

1
Out of stock

2

BOLT This part replaces 01550-06303.

01550-0630A

2
Out of stock

3

SPACER

09169-06074

2
Out of stock

4

CUSHION (11.5X32X12.2) This part replaces 09320-11019.

09320-11021

2
Out of stock

5

COVER,REAR This part replaces 63251-31G00.

63251-31G01

1
Out of stock

6

CLIP

09409-07333

2
Out of stock

7

SCREW, REAR This part replaces 02142-05203.

02142-0520B

1
Out of stock

8

NUT

09159-05019

1
Out of stock

9

SHIELD, REAR FENDER This part replaces 63122-31G00.

63122-31G20

1
Out of stock

10

SHIELD, REAR FENDER This part replaces 63123-31G00.

63123-31G20

1
Out of stock

11

SHIELD, REAR FENDER This part replaces 63124-31G00.

63124-31G20

1
Out of stock

12

SHIELD, REAR FENDER This part replaces 63128-31G00.

63128-31G20

1
Out of stock

13

SHIELD, REAR FENDER This part replaces 63126-31G00.

63126-31G20

1
Out of stock

14

SHIELD, REAR FENDER This part replaces 63127-31G00.

63127-31G20

1
Out of stock

15

PLUG,RR BOX This part replaces 93115-03G00.

93115-03G01

4
Out of stock

16

EMBLEM,RR FENDE This part replaces 68171-31G10-AWU.

68171-31G11-AWU

2
Out of stock

16

EMBLEM,"SUZUKI" This part replaces 68171-31G00-20H.

68171-31G01-20H

1
Out of stock
