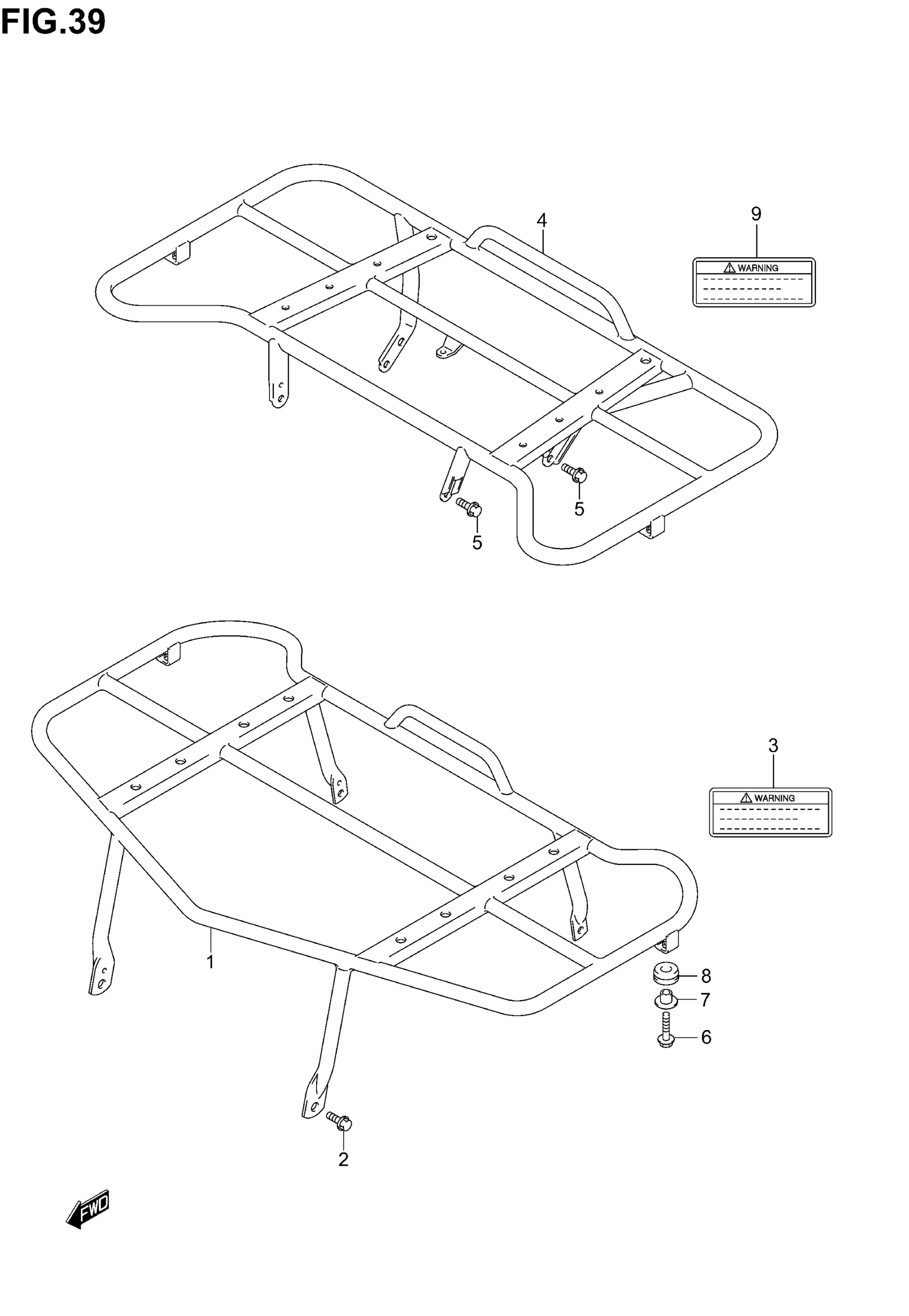

Suzuki LT-A700X (2005) CARRIER Diagram

#

Description
Price

1

CARRIER, FRONT (BLACK) This part replaces 46410-31G00-YH5.

46410-31G13-YSN

$253.74

2

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.39

3

LABEL,FRONT CAR | E33 This part replaces 68381-19B00.

68381-19B01

$6.12

3

LABEL,WARNING F | E28 This part replaces 68381-19B20.

68381-19B21

Unavailable

4

CARRIER, REAR (BLACK) This part replaces 46310-31G00-YH5.

46310-31G32-YSN

$347.50

5

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.39

6

BOLT, LOWER

09116-06147

$3.03

7

SPACER

09180-06120

$2.38

8

CUSHION

09320-11008

$2.66

9

LABEL,REAR CARR | E33 This part replaces 68391-19B00.

68391-19B01

$6.32

9

LABEL, REAR CARRIER (FRENCH) | E28

68391-19B20

Unavailable
