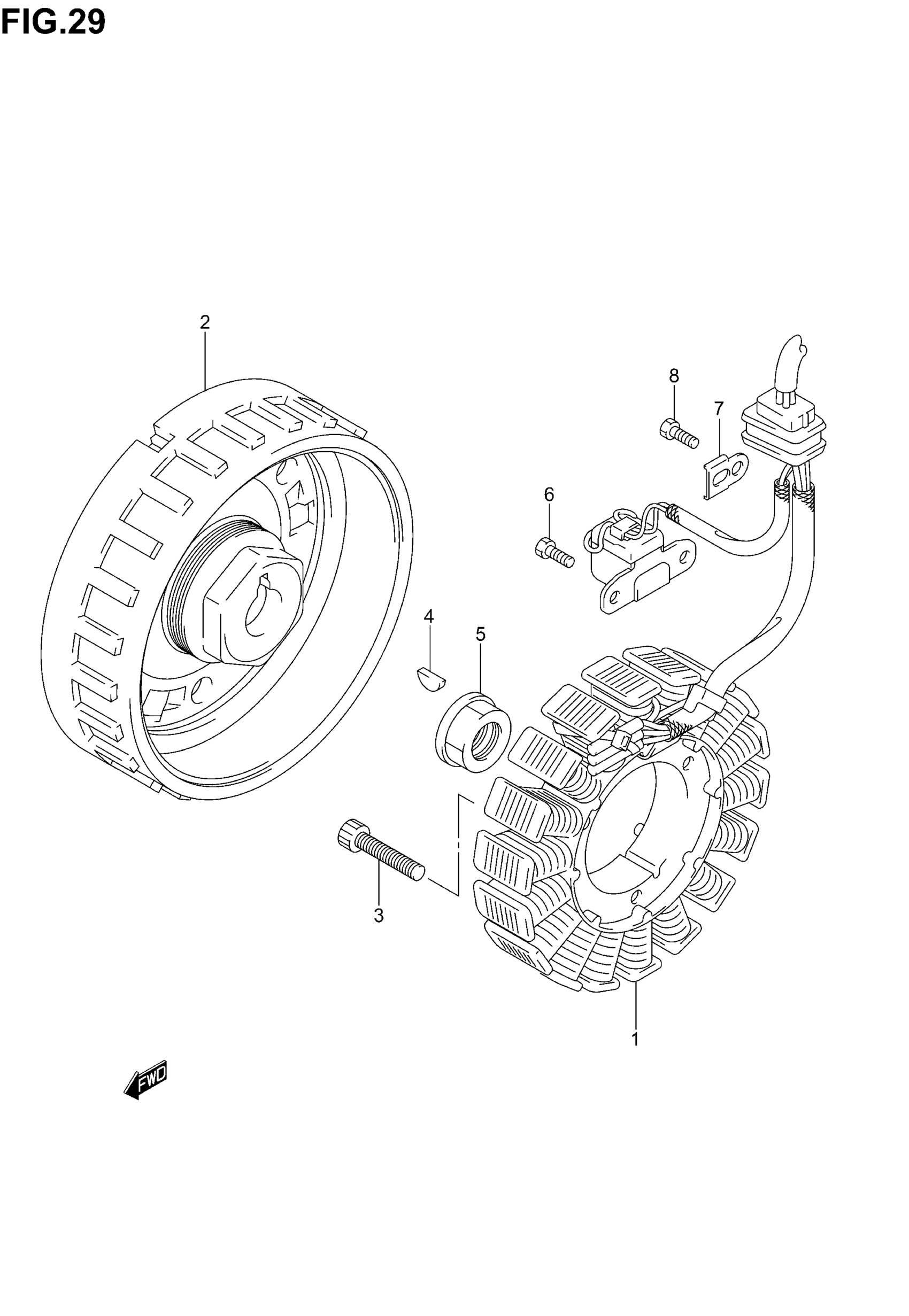

Suzuki LT-A700X (2005) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY, MAGNETO This part replaces 32101-31G00.

32101-31G02

$758.97

2

ROTOR ASSY, MAGNETO

32102-31G00

$829.28

3

BOLT This part replaces 07130-06303.

07130-0630B

$3.37

4

KEY, MAGNETO ROTOR

08341-31059

$2.48

5

NUT, MAGNETO ROTOR

31792-18A00

$11.87

6

BOLT, SENSOR (5X10)

09100-05019

$1.93

7

CLAMP, MAGNETO LEAD

31497-45000

$1.92

8

BOLT, CLAMP NO.1 (5X10)

09100-05019

$1.93
