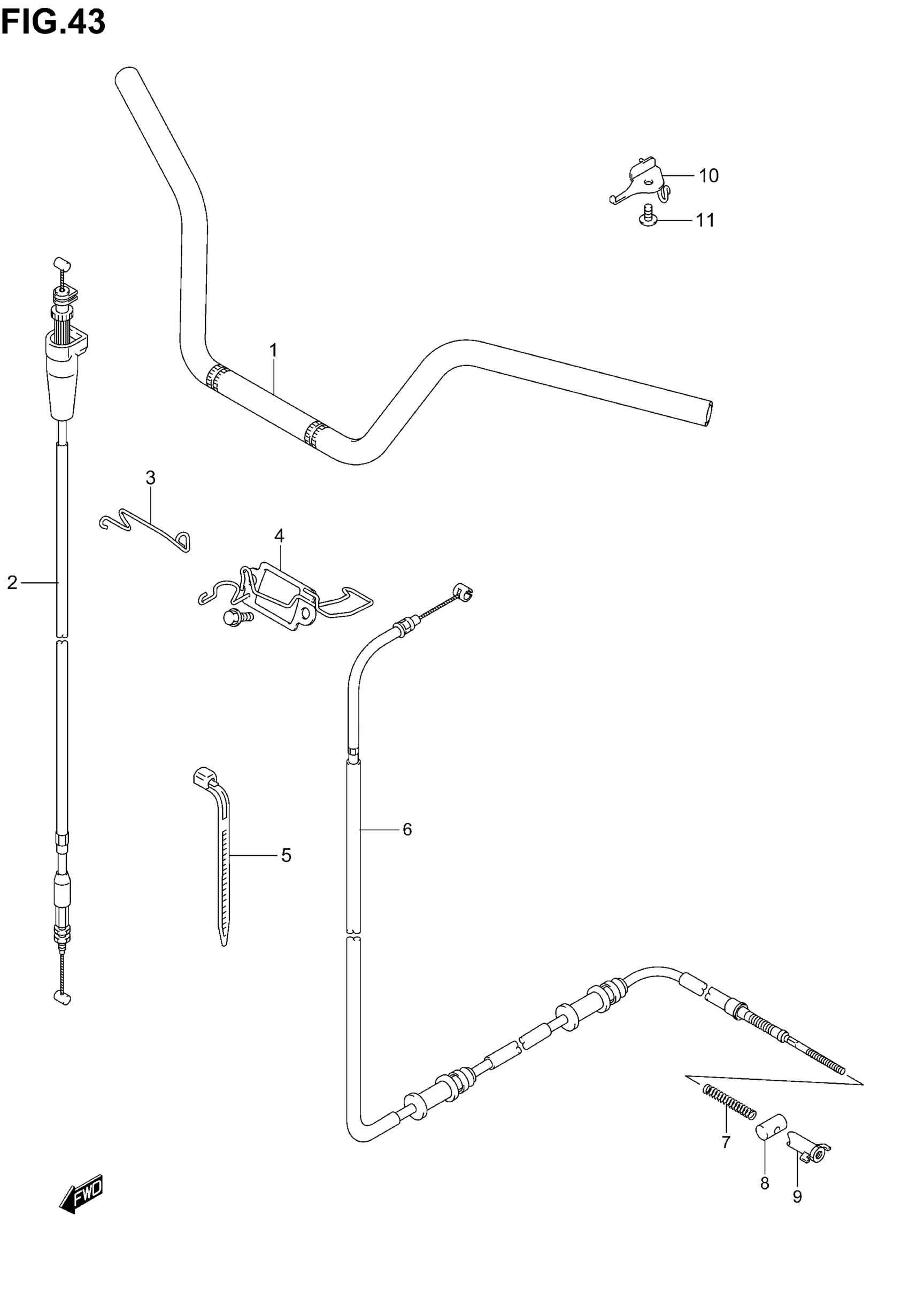

Suzuki LT-A700X (2005) HANDLE BAR Diagram

#

Description
Price

1

HANDLE BAR This part replaces 56111-31G00.

56111-31G30

$73.96

2

CABLE ASSY, THROTTLE

58300-31G00

$45.37

3

GUIDE, THROTTLE CABLE

58626-31G00

$12.82

4

GUIDE, CABLE

58620-31G00

$28.27

5

CLAMP

09407-14403

$2.26

5

CLAMP

09407-18402

$2.19

6

CABLE, PARKING BRAKE

58810-31G00

$67.10

7

SPRING

09440-08042

$2.92

8

PIN

09209-13006

$5.24

9

NUT

09150-06015

$3.56

10

GUIDE, PARKING CABLE

58620-31G10

$15.80

11

SCREW This part replaces 03542-06163.

03541-0616A

$2.02
