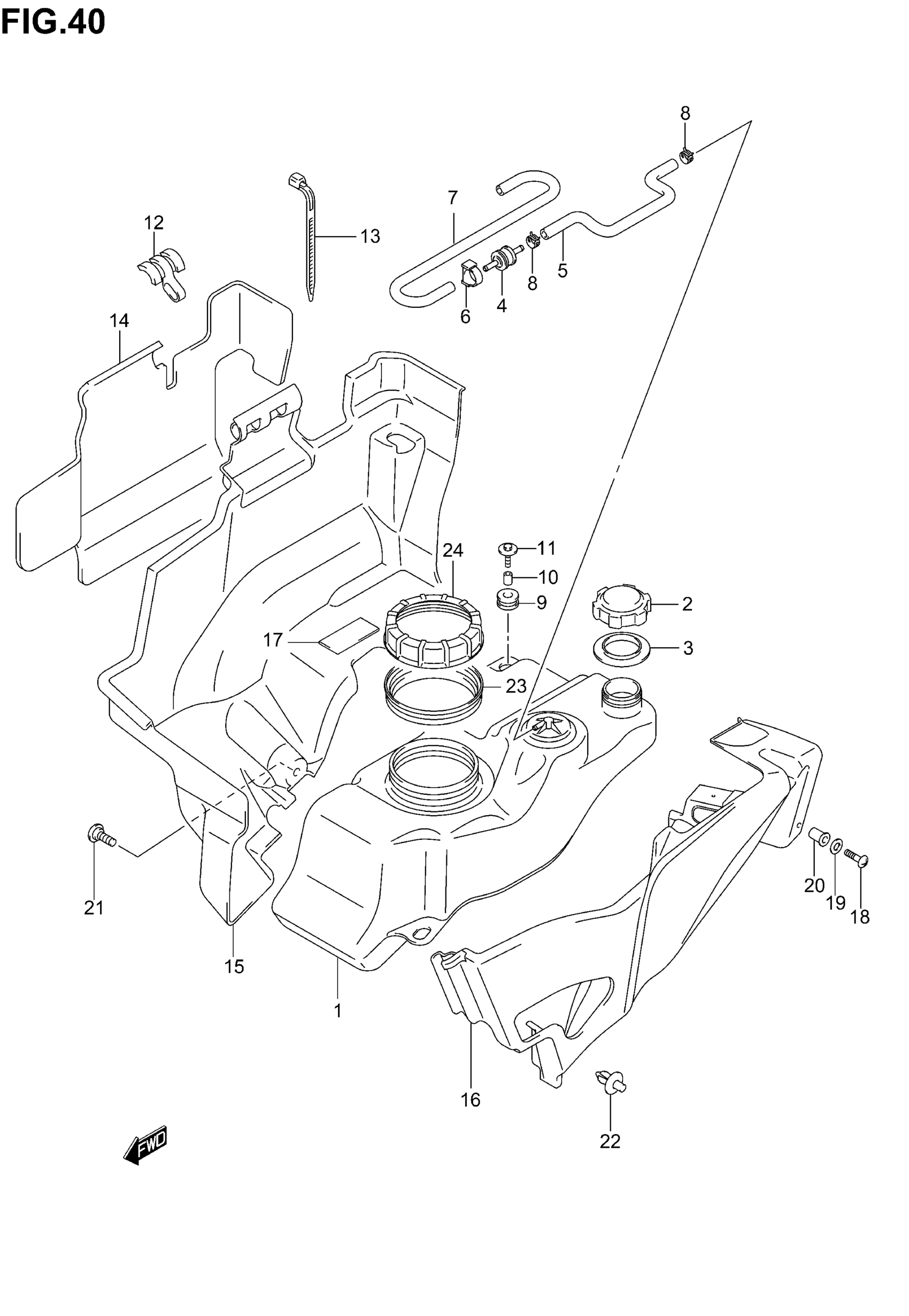

Suzuki LT-A700X (2005) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-31G00

Unavailable

2

CAP ASSY, FUEL TANK

44200-31G00

$52.35

3

RUBBER,FUEL TAN This part replaces 44261-31G00.

44261-31G01

$12.48

4

VALVE,2 WAY CHECK

85451-75100

$46.78

5

HOSE,CHECK VALV This part replaces 44425-31G00.

44425-31G01

$12.07

6

CUSHION, CHECK VALVE This part replaces 44881-31G00.

44881-31G01

$4.74

7

HOSE,FUEL TANK This part replaces 44434-31G00.

44434-31G01

$15.88

8

CLIP

09401-08409

$1.93

9

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

$5.78

10

SPACER

09180-06293

$2.58

11

BOLT

09116-06190

$2.34

12

CUSHION, SIDE

44541-31G00

Unavailable

13

CLAMP

09407-14407

$3.57

14

SHIELD, FUEL TANK

44423-31G00

Unavailable

15

COVER, LOWER This part replaces 44390-31G00.

44390-31G10

$68.63

16

COVER, OUTER

44391-31G00

$103.03

17

CUSHION

47451-38A01

$4.43

18

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.78

19

WASHER

09160-05046

$1.92

20

NUT

09159-05019

$7.14

21

SCREW

09139-06137

$2.61

22

CLIP

09409-07333

$2.31

23

PACKING,FUEL PU This part replaces 44596-10G00.

44596-10G01

$15.38

24

RETAINER, FUEL PUMP

44597-10G00

$35.72
