Description

Price

1

HUB,FRONT WHEEL This part replaces 54110-31G00.

54110-31G10

$137.30

2

RIM, FRONT WHEEL (12X6.0AT)

55310-31G00

Unavailable

3

NUT (H:23)

09159-10045

$6.42

4

WASHER

64723-09F00

$13.35

5

NUT, HUB

09141-18010

$10.11

6

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

7

CAP,WHEEL CENTER

54725-09F01

$9.95

8

DISC, FRONT BRAKE This part replaces 59211-31G00.

59211-31G10

$63.63

9

BOLT, BRAKE DISC

09106-08160

$3.57

10

COVER, FRONT DISC RH This part replaces 59231-31G00.

59231-31G11

$21.70

11

COVER, FRONT DISC LH This part replaces 59431-31G00.

59431-31G11

$21.32

12

BOLT

09111-06085

$4.54

13

TIRE, FRONT (AT25X8-12) (DUNLOP)

55110-31G00

$135.13

14

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

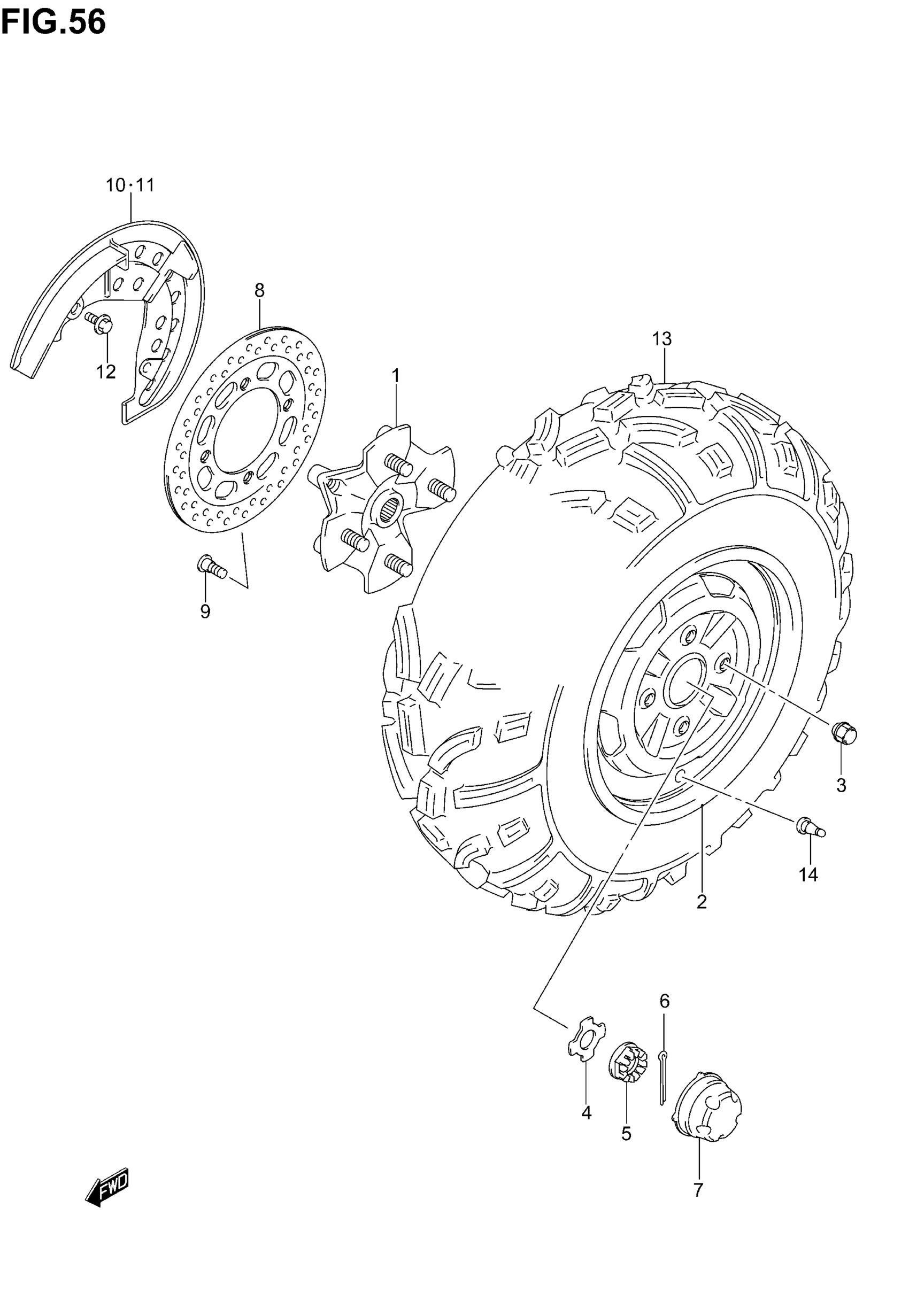

Suzuki LT-A700X (2005) FRONT WHEEL Diagram
