Description

Price

1

GRILLE,FRONT This part replaces 53118-31G00-291.

53118-31G05-291

$169.30

2

EMBLEM, "S"

68151-03G40

$17.03

3

CLIP

09409-07333

$2.31

3

CLIP, FRONT

09409-08335

$2.47

4

HOUSING,FRONT L | E33 This part replaces 53281-31G00-291.

53281-31G04-291

$75.16

4

HOUSING,FRONT L | E28 This part replaces 53281-31G10-291.

53281-31G04-291

$75.16

5

HOUSING, FRONT LH (BLACK) | E33 This part replaces 53284-31G00-291.

53284-31G01-291

$29.06

5

HOUSING, FRONT LH (BLACK) | E28

53284-31G10-291

Unavailable

6

COVER,FRONT LAM This part replaces 53282-31G00-291.

53282-31G03-291

$17.40

7

COVER,FRONT LAM This part replaces 53283-31G00-291.

53283-31G03-291

$30.75

8

BOLT

09139-06118

$3.25

9

CUSHION

09320-10501

$6.23

10

SCREW, BRACKET This part replaces 03242-05163.

03241-0516A

$1.49

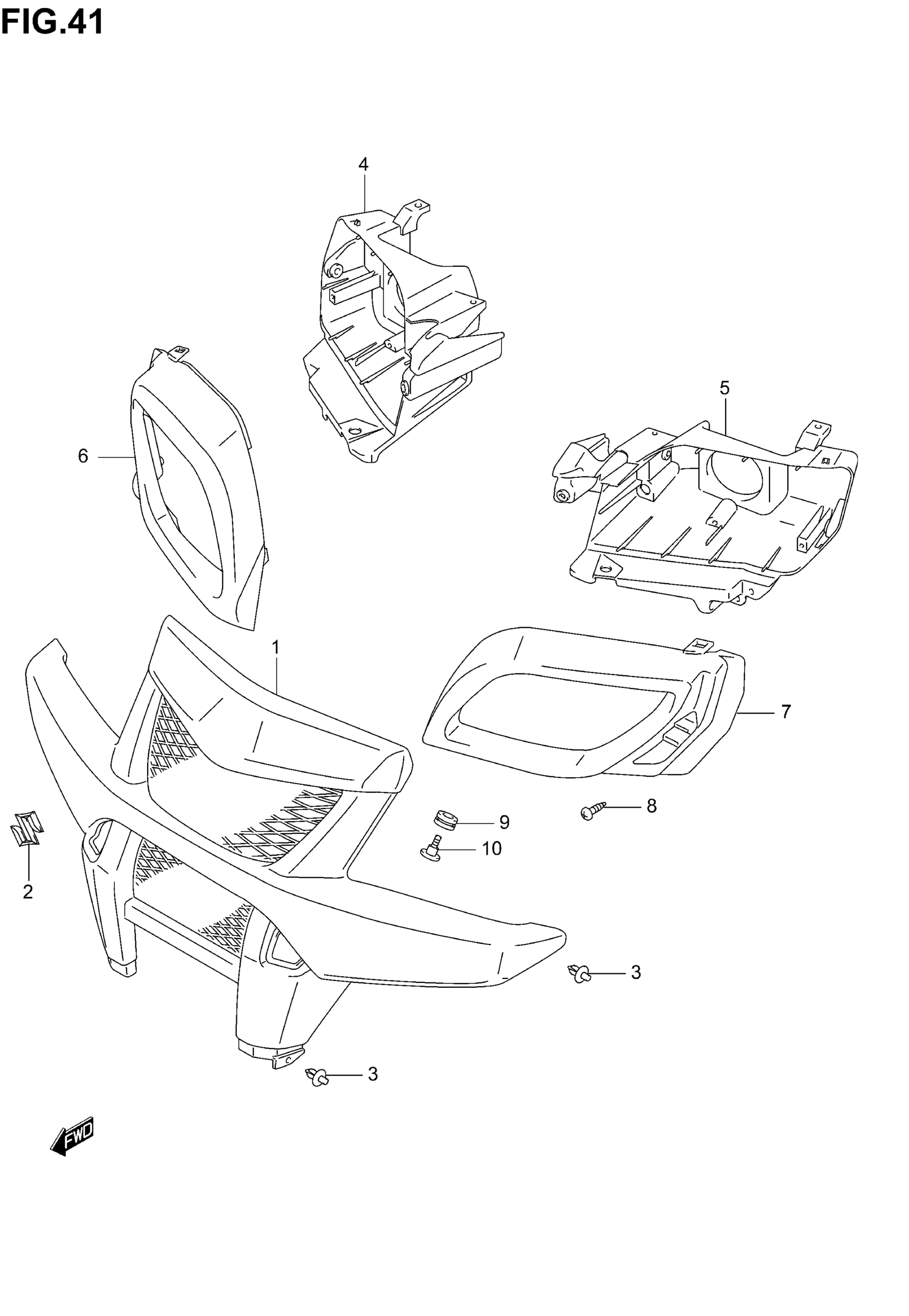

Suzuki LT-A700X (2005) FRONT GRILLE Diagram
