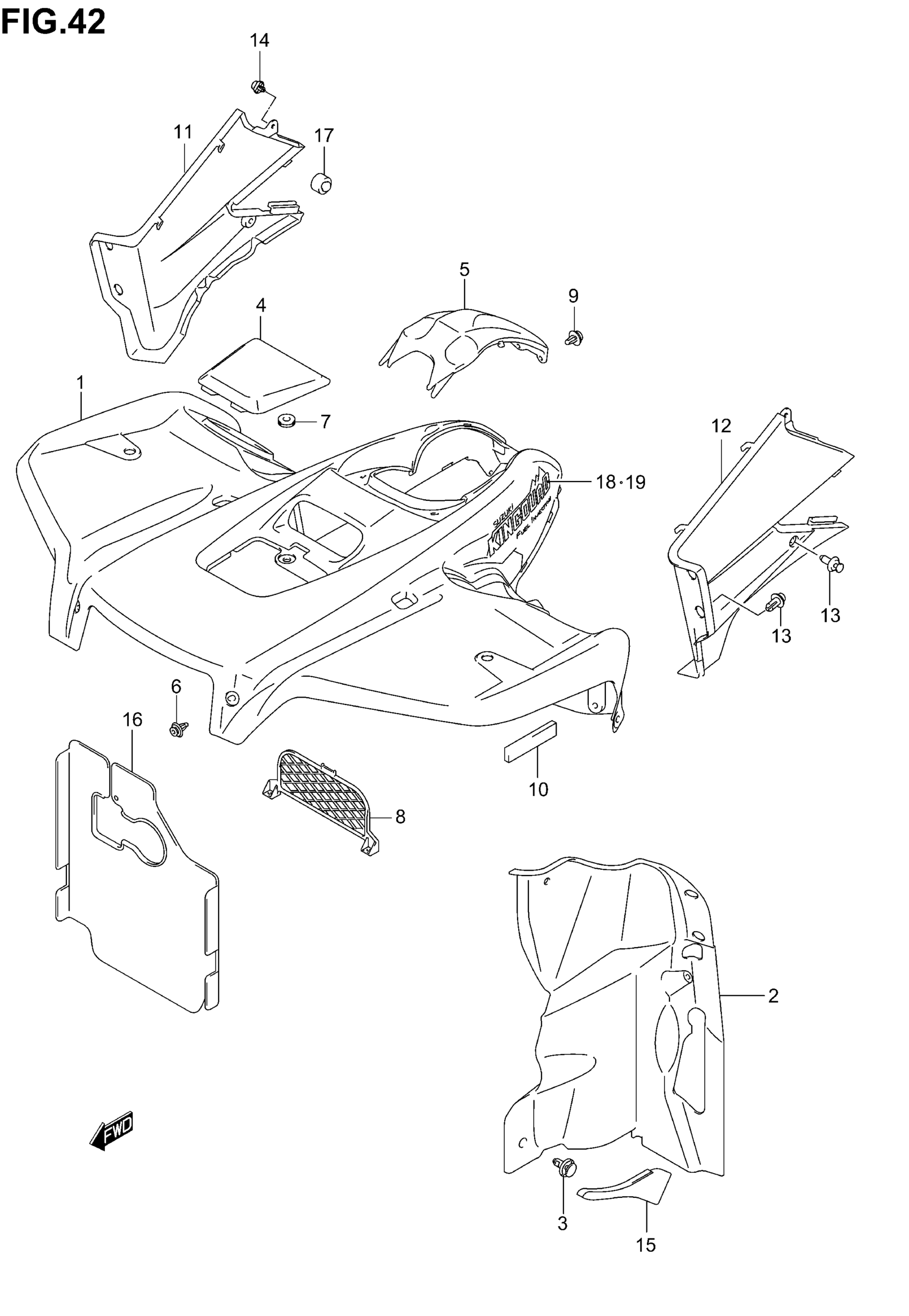

Suzuki LT-A700X (2005) FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT (RED) This part replaces 53111-31G00-YT9.

53111-31G13-YT9

$402.18

1

FENDER, FRONT (YELLOW) This part replaces 53111-31G00-YU1.

53111-31G03-YU1

$168.83

1

FENDER, FRONT (GREEN)

53111-31G00-YT8

$551.38

2

MUD FLAP,FENDER This part replaces 53421-31G00.

53421-31G03

$23.35

3

CLIP

09409-07333

$2.31

4

LID,FRONT FENDE This part replaces 53341-31G00-YU1.

53341-31G04-YU1

$30.33

4

LID,FRONT FENDE This part replaces 53341-31G00-YT8.

53341-31G04-YT8

$30.15

4

LID, FENDER FRONT (RED) This part replaces 53341-31G00-YT9.

53341-31G06-YT9

$10.61

5

FENDER,CENTER This part replaces 53119-31G00-YU1.

53119-31G03-YU1

$26.62

5

FENDER,CENTER This part replaces 53119-31G00-YT8.

53119-31G04-YT8

$67.27

5

FENDER,CENTER This part replaces 53119-31G00-YT9.

53119-31G05-YT9

$22.24

6

CLIP

09409-07333

$2.31

7

CUSHION

09320-08018

$3.04

8

COVER,INNER This part replaces 53212-31G00.

53212-31G03

$15.23

9

CLIP

09409-07333

$2.31

10

CUSHION, FENDER SIDE

53145-07G01

$8.13

11

COVER,SIDE,R This part replaces 53110-31G10-291.

53112-31G04

$42.81

12

COVER,SIDE,L This part replaces 53110-31G20-291.

53122-31G04

$95.93

13

CLIP

09409-07333

$2.31

14

CLIP, REAR RH

09409-08335

$2.47

15

MUDGUARD, SIDE RH This part replaces 53116-31G00.

53116-31G01

$15.47

16

COVER, CENTER This part replaces 53117-31G00.

53117-31G01

$30.10

17

CUSHION

09321-10019

$4.90

18

EMBLEM, RH

68151-31G00-BLF

Unavailable

19

EMBLEM, LH

68152-31G00-BLF

Unavailable
