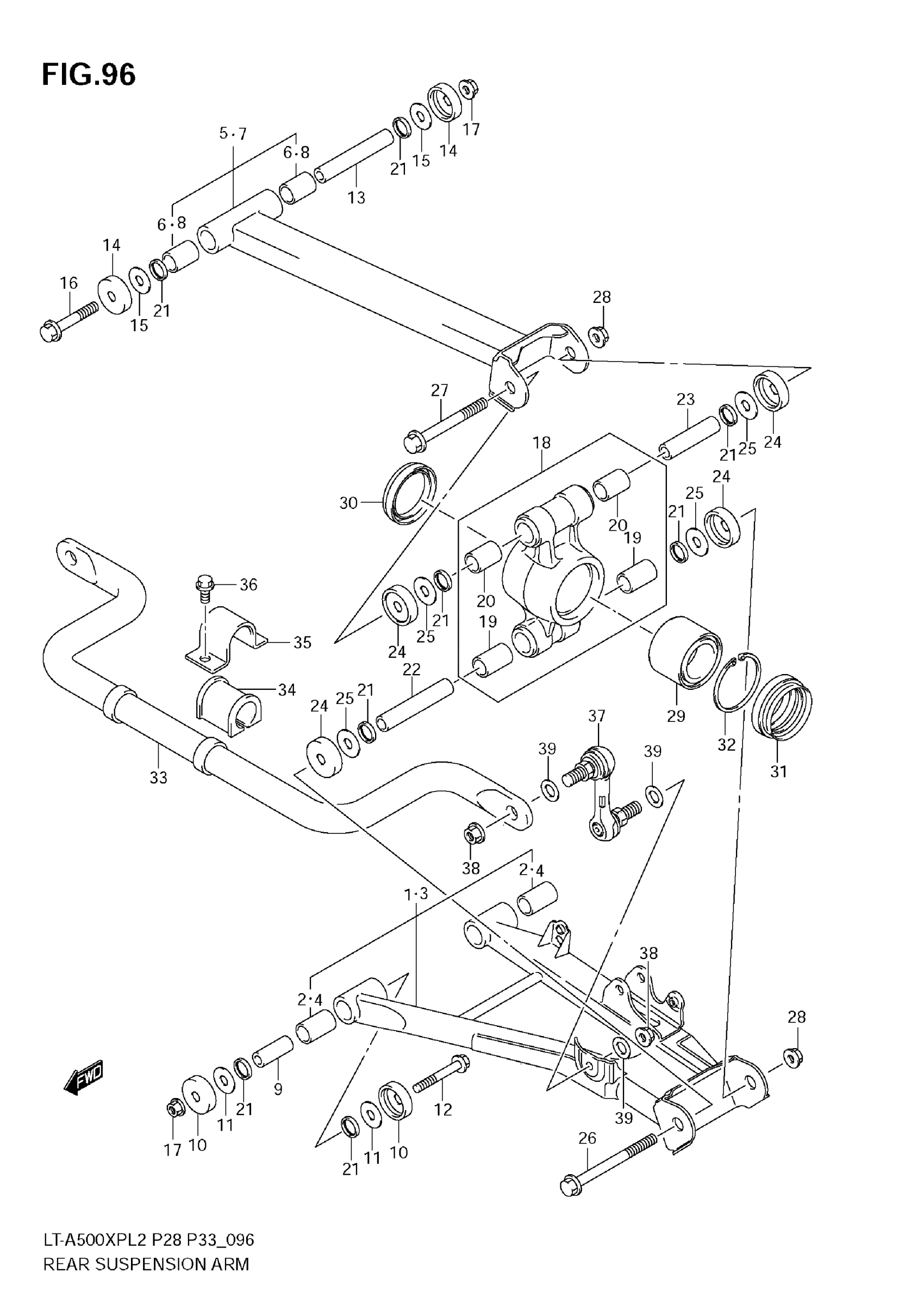

Suzuki LT-A500XPZL2 (2012) REAR SUSPENSION ARM Diagram

#

Description
Price

1

ARM SET, RR SUSPENSION LOWER, RH

61510-31830

$320.15

2

BUSH, RR SPNSN ARM LOWER

51236-31G00

$16.84

3

ARM SET, RR SUSPENSION LOWER, LH

61520-31830

$308.38

4

BUSH, RR SPNSN ARM LOWER

51236-31G00

$16.84

5

ARM SET, RR SUSPENSION UPPER, RH

61530-31830

$223.92

6

BUSH, RR SPNSN ARM UPPER

51236-31G00

$16.84

7

ARM SET, RR SUSPENSION UPPER, LH

61540-31830

$219.68

8

BUSH, RR SPNSN ARM UPPER

51236-31G00

$16.84

9

SPACER, RR SPNSN ARM LOWER

61552-31G10

$15.68

10

SEAL, RR SPNSN ARM LOWER

51255-31G10

$16.82

11

WASHER | LOWER

08211-10281

$2.03

12

BOLT (10X70) | LOWER

09103-10392

$4.90

13

SPACER, RR SPNSN ARM UPPER

61554-31G10

$50.50

14

SEAL, RR SPNSN ARM UPPER

51255-31G00

$16.82

15

WASHER | UPPER

08211-10281

$2.03

16

BOLT (10X120) | UPPER

09103-10388

$5.78

17

NUT

09159-10115

$3.55

18

KNUCKLE SET, RR SUSPENSION

61600-31830

$371.53

19

BUSH, RR KNUCKLE

51236-31G00

$16.84

20

BUSH, RR KNUCKLE UPPER

61551-31G10

$12.63

21

SEAL, RR KNUCKLE INNER

52454-45G00

$7.44

22

SPACER, RR KNUCKLE LOWER

61554-31G10

$50.50

23

SPACER, RR KNUCKLE UPPER

61553-31G20

$36.82

24

SEAL, RR KNUCKLE DUST

51255-18900

$4.48

25

WASHER

08211-10281

$2.03

26

BOLT (10X120) | LOWER

09103-10388

$5.78

27

BOLT (10X96) | UPPER

09103-10387

$7.58

28

NUT

09159-10115

$3.55

29

BEARING, RR HUB This part replaces 43440-58J00.

43440-58J01

$72.80

30

SEAL, REAR HUB INNER DUST

61615-31G00

$20.96

31

SEAL, REAR HUB OUTER DUST

61616-31G00

$18.59

32

CLIP

08331-4162A

$3.89

33

BAR, RR STABILIZER

61651-31G20

Unavailable

34

BUSH, RR STABILIZER This part replaces 61652-31G20.

61652-34K00

$7.22

35

PLATE, RR STABILIZER

61650-31G00

Unavailable

36

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

37

JOINT, RR STABILIZER

61660-31G20

$78.81

38

NUT

09159-10223

$4.37

39

WASHER (10.5X22X2.3)

09160-10039

$2.26
