Description

Price

1

FENDER, REAR (RED) This part replaces 63111-31G02-YT9.

63111-31G03-YT9

$589.18

1

FENDER, REAR (GREEN) This part replaces 63111-31G02-YLG.

63111-31G03-YLG

$574.70

1

FENDER, REAR (BLACK) This part replaces 63111-31G02-YLZ.

63111-31G03-YLZ

$572.98

2

BOLT

01547-0625A

$2.01

3

WASHER (6.5X24X1.6)

09169-06074

$7.49

4

CUSHION (11.5X32X12.2)

09320-11021

$3.77

5

COVER,REAR This part replaces 63251-31G00.

63251-31G01

$20.93

6

CLIP

09409-07333

$2.29

7

SCREW

02142-0520B

$1.77

8

NUT

09159-05019

$6.44

9

SHIELD, REAR FENDER This part replaces 63122-31G10.

63122-31G20

$30.38

10

SHIELD, REAR FENDER This part replaces 63123-31G10.

63123-31G20

$26.50

11

SHIELD, REAR FENDER This part replaces 63124-31G10.

63124-31G20

$19.55

12

SHIELD, REAR FENDER This part replaces 63128-31G10.

63128-31G20

$16.57

13

SHIELD, REAR FENDER This part replaces 63126-31G10.

63126-31G20

$14.65

14

SHIELD, REAR FENDER This part replaces 63127-31G10.

63127-31G20

$14.65

15

PLUG,RR BOX This part replaces 93115-03G00.

93115-03G01

$3.68

16

EMBLEM,RR FENDE This part replaces 68171-31GF0-JLJ.

68171-31GF1-JLJ

$24.28

17

EMBLEM,"SUZUKI" This part replaces 68171-31GA0-1ZZ.

68171-31GA1-1ZZ

$4.16

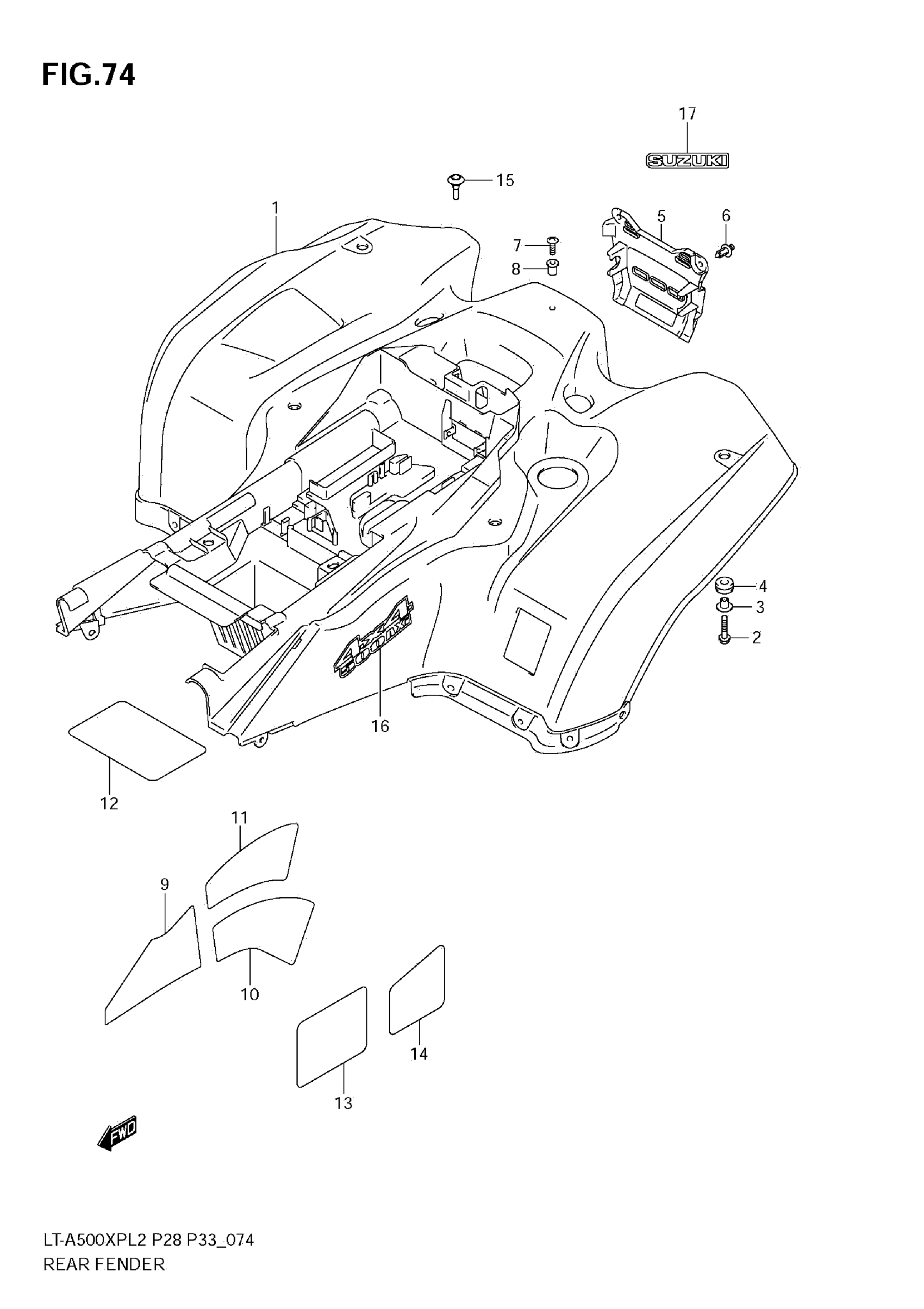

Suzuki LT-A500XPZL2 (2012) REAR FENDER (LT-A500XPL2 E33) Diagram
