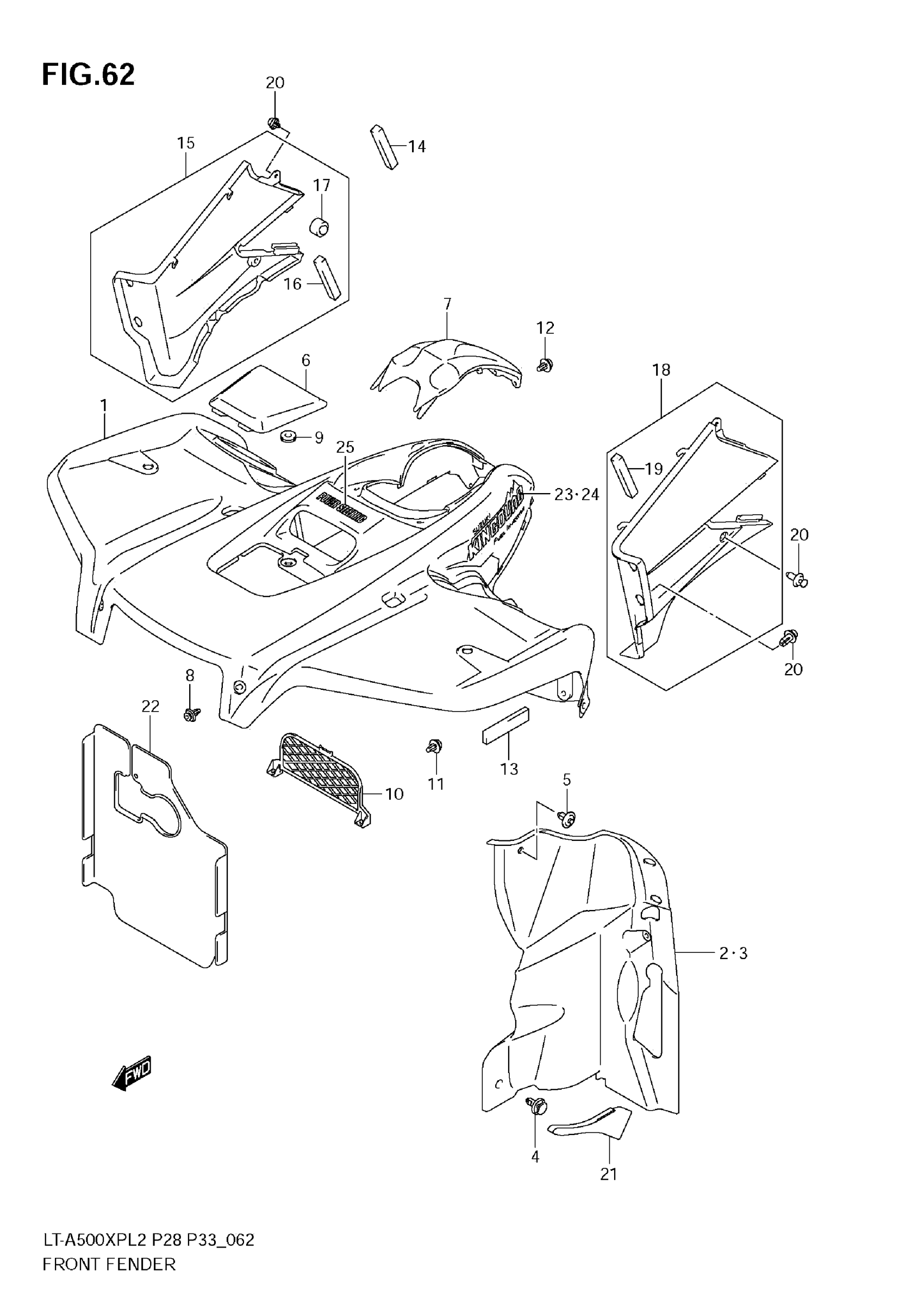

Suzuki LT-A500XPZL2 (2012) FRONT FENDER (LT-A500XPL2 E28) Diagram

#

Description
Price

1

FENDER, FRONT (RED) This part replaces 53111-31G03-YT9.

53111-31G13-YT9

$402.18

1

FENDER, FRONT (GREEN)

53111-31G03-YLG

$310.82

1

FENDER, FRONT (YELLOW)

53111-31G03-YU1

$168.83

2

MUDFLAP, INNER RH

53411-31G02

$31.08

3

MUD FLAP,FENDER This part replaces 53421-31G01.

53421-31G03

$23.35

4

CLIP | LOWER

09409-08335

$2.47

5

CLIP | UPPER

09409-07333

$2.31

6

LID, FENDER FRONT (RED) This part replaces 53341-31G01-YT9.

53341-31G06-YT9

$10.61

6

LID, FENDER FRONT (GREEN) This part replaces 53341-31G01-YLG.

53341-31G06-YLG

$10.28

6

LID,FRONT FENDE This part replaces 53341-31G01-YU1.

53341-31G04-YU1

$30.33

7

FENDER,CENTER This part replaces 53119-31G02-YT9.

53119-31G05-YT9

$22.24

7

FENDER,CENTER This part replaces 53119-31G02-YLG.

53119-31G05-YLG

$25.60

7

FENDER,CENTER This part replaces 53119-31G02-YU1.

53119-31G03-YU1

$26.62

8

CLIP

09409-08335

$2.47

9

CUSHION

09320-08018

$3.04

10

COVER,INNER This part replaces 53212-31G01.

53212-31G03

$15.23

11

CLIP

09409-08335

$2.47

12

CLIP

09409-08335

$2.47

13

CUSHION, FENDER SIDE

53145-07G01

$8.13

14

CUSHION, COVER SIDE

53113-31H00

$13.28

15

COVER,SIDE,R This part replaces 53110-31G10-291.

53112-31G04

$42.81

16

CUSHION, COVER SIDE RH

53146-05G00

$7.27

17

CUSHION | RH

09321-10019

$4.90

18

COVER,SIDE,L This part replaces 53110-31G20-291.

53122-31G04

$95.93

19

CUSHION, COVER SIDE LH

53146-05G00

$7.27

20

CLIP

09409-08335

$2.47

21

MUDGUARD, SIDE RH This part replaces 53116-31G00.

53116-31G01

$15.47

22

COVER, CENTER This part replaces 53117-31G00.

53117-31G01

$30.10

23

EMBLEM,FR FENDE This part replaces 68151-31GC0-EFG.

68151-31GC1-EFG

$47.82

24

EMBLEM,LH This part replaces 68152-31GC0-EFG.

68152-31GC1-EFG

$47.82

25

EMBLEM,"POWER-S This part replaces 68151-31GD0-CT5.

68151-31GD1-CT5

$20.80
