2016 Suzuki LT-A500XPL6 Steering Shaft Diagram

← All diagrams

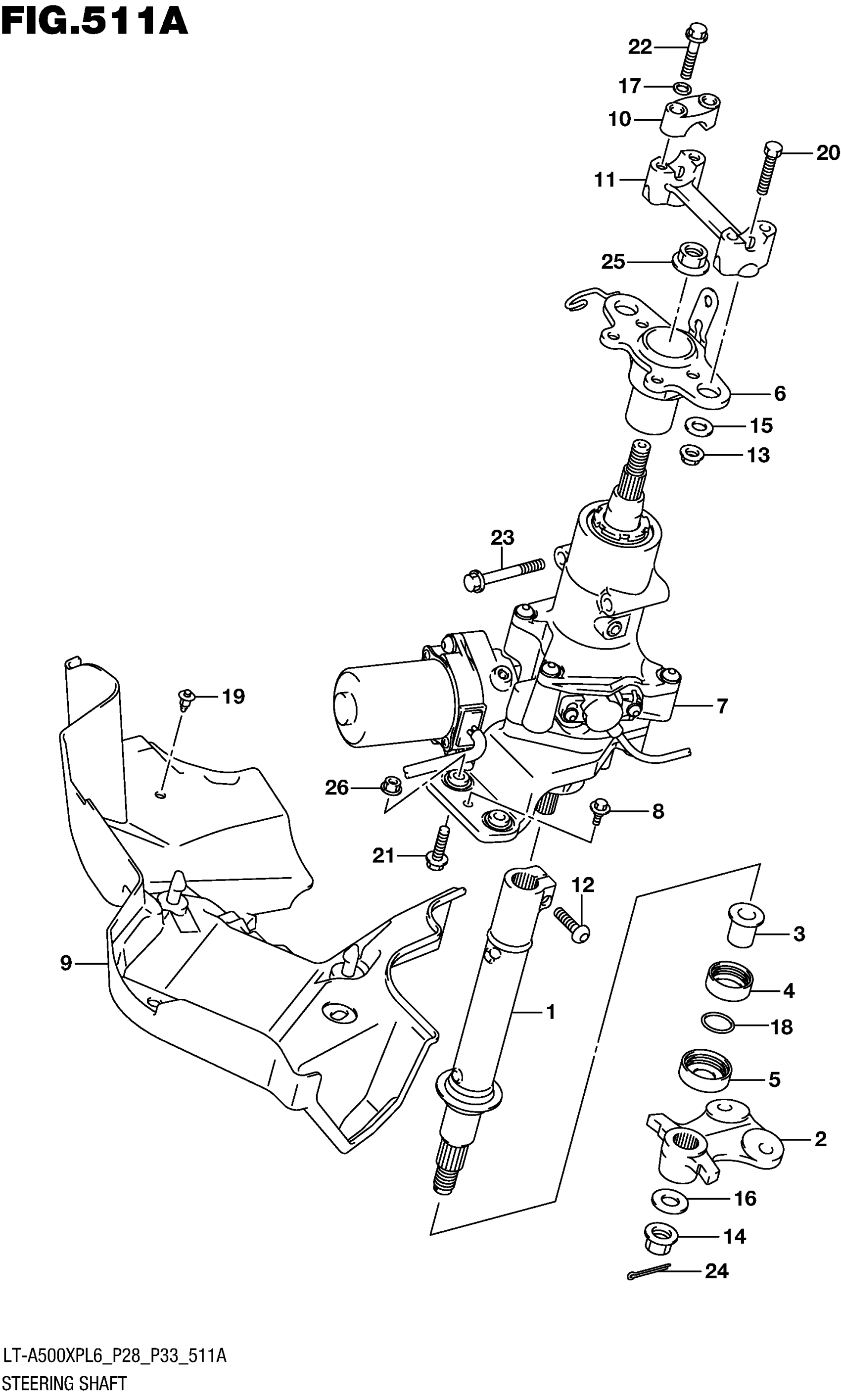

Find the part on the Steering Shaft diagram for your 2016 Suzuki LT-A500XPL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki LT-A500XPL6 Steering Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, STEERING

51650-31G40

1
Out of stock

2

PLATE, STEERING ARM

51653-31G30

1
Out of stock

3

BUSH, STEERING SHAFT LOWER

51661-31G00

1
Out of stock

4

SEAL, DUST This part replaces 51662-31G00.

51662-31G01

1
Out of stock

5

SEAL, DUST This part replaces 51663-31G10.

51663-31G11

1
Out of stock

6

PLATE, STEERING SHAFT

51680-31G00

1
Out of stock

7

BODY ASSY,STEER This part replaces 51700-31G10.

51700-31G13

1
Out of stock

8

BOLT (6X12)

09111-06085

1
Out of stock

9

PLATE, EPS ECU

51771-31G00

1
Out of stock

10

CLAMP, HANDLE HOLDER UP

56211-09F00-291

2
Out of stock

10

(BLACK)

56211-09F00-291

1
Out of stock

11

CLAMP, HANDLE HOLDER

56211-31G10

1
Out of stock

12

BOLT (8X25)

09106-08129

1
Out of stock

13

NUT

09159-10115

2
Out of stock

14

NUT

09159-14027

1
Out of stock

15

WASHER (10.5X22X2.3)

09160-10039

2
Out of stock

16

WASHER (14.5X30X3.2)

09160-14062

1
Out of stock

17

WASHER

09164-08015

4
Out of stock

18

O RING (D:2.4,ID:23.7)

09280-24010

1
Out of stock

19

CLIP

09409-07333

1
Out of stock

20

BOLT

01500-1035A

2
Out of stock

21

BOLT

01550-0830A

2
Out of stock

22

BOLT (8X35)

01550-0835A

4
Out of stock

23

BOLT

01550-0875A

2
Out of stock

24

PIN

04111-2020A

1
Out of stock

25

NUT

08316-1014A

1
Out of stock

26

NUT

08319-3108A

2
Out of stock
