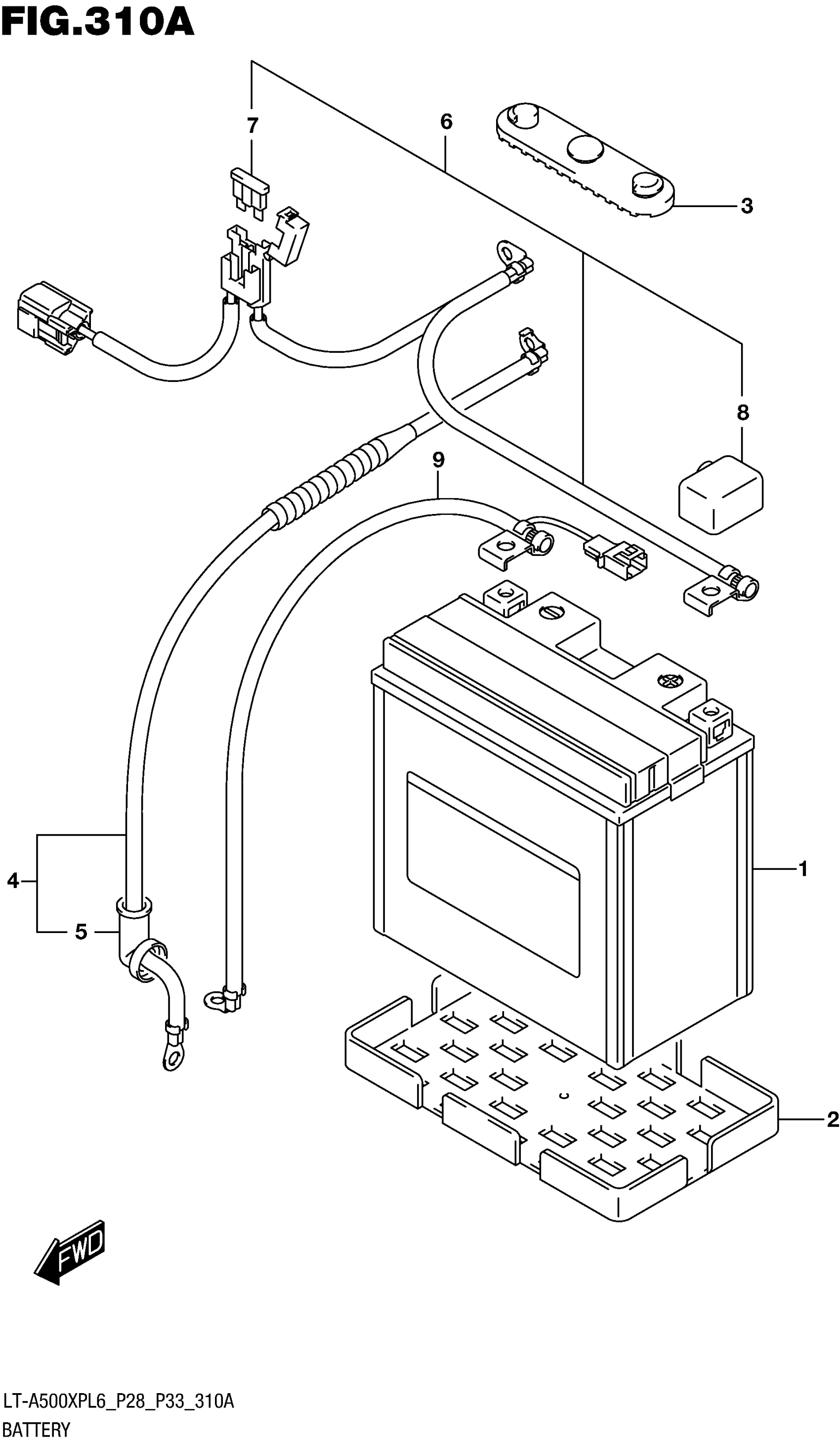

Suzuki LT-A500XPL6 (2016) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY This part replaces 33610-03G11.

33610-03G10

$127.74

1

BATTERY ASSY This part replaces 33610-03G11.

33610-03G10

$127.74

2

PROTECTOR,BATTERY

33652-16G00

$13.50

3

PROTECTOR, BATTERY

33652-07G00

$3.81

4

WIRE, STARTER MOTOR

33810-11H10

$57.73

5

.CAP, STARTER MOTOR LEAD

31861-48B10

$7.40

6

WIRE, BATTERY PLUS

33820-31G10

$82.47

7

.FUSE (40A)

09481-40101

$10.15

8

.CAP, BATTERY PLUS TERM

33624-10D00

$7.12

9

WIRE, BATTERY MINUS

33860-31G10

$32.73
