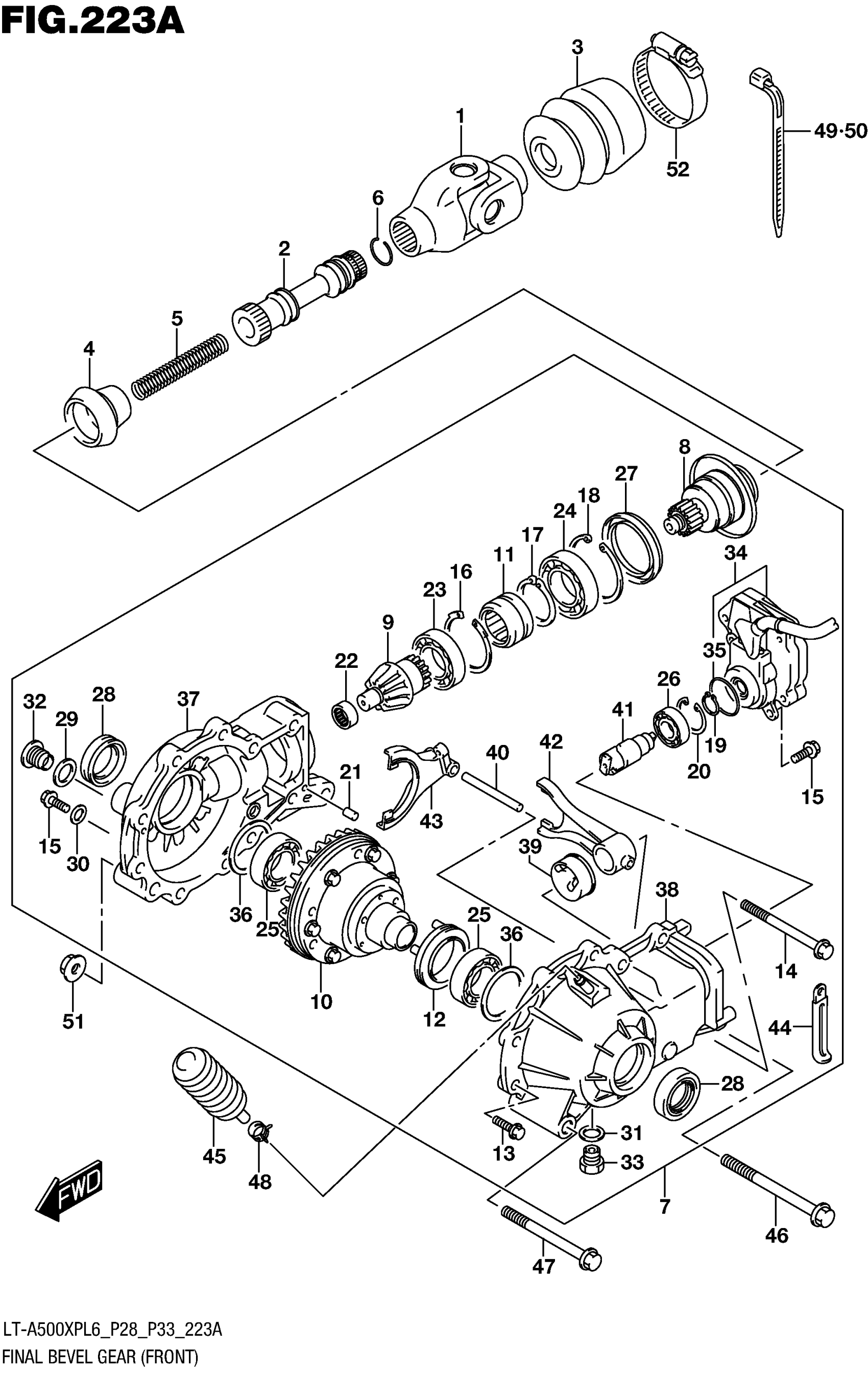

Suzuki LT-A500XPL6 (2016) FINAL BEVEL GEAR (FRONT) Diagram

#

Description
Price

1

YOKE, FR PROPELLER SHAFT

27100-31G00

$223.32

2

SHAFT, PROPELLER

27151-31G30

$78.47

3

BOOT, FRONT PROP SHAFT YOKE This part replaces 27153-31G21.

27153-31G22

$11.43

4

BOOT,FR PROP SHAFT This part replaces 27153-31G30.

27153-31G32

$6.64

5

SPRING, FR PROPELLER

27191-31G00

$5.63

6

SNAP RING

09381-20004

$1.65

7

CASE ASSY, FR DIFFERENTIAL This part replaces 27400-31H01.

27400-31H03

$1,330.20

8

.SHAFT ASSY, INPUT

27130-31HA0

$200.37

9

.PINION, DRIVE

27311-31HA0

$112.35

10

.GEAR RING ASSY

27320-31HA0

$579.47

11

.SLEEVE

27371-31HA0

Unavailable

12

.SLEEVE DIFF LOCK

27381-31HA0

$123.42

13

.FLANGE BOLT, HEX HEAD

27401-31HA0

Unavailable

14

.FLANGE BOLT, HEX HEAD

27401-31HB0

Unavailable

15

.FLANGE BOLT, HEX HEAD

27401-31HC0

$17.15

16

.SNAP RING

27403-31HA0

Unavailable

17

.SNAP RING

27403-31HB0

Unavailable

18

.SNAP RING

27403-31HC0

$20.30

19

.RING SNAP

27403-31HD0

$16.95

20

.RING SNAP

27403-31HE0

Unavailable

21

.PIN

27404-31HA0

Unavailable

22

.BEARING, PINION

27405-31HA0

$49.37

23

.BEARING

27405-31HB0

$51.68

24

.BEARING

27405-31HC0

$64.67

25

.BEARING

27405-31HD0

$50.40

26

.BEARING

27405-31HE0

$38.93

27

.OIL SEAL

27406-31HA0

$38.17

28

.OIL SEAL

27406-31HB0

$29.07

29

.WASHER

27407-31HA0

$19.35

30

.WASHER

27407-31HB0

$9.57

31

.WASHER

27407-31HC0

$16.34

32

.PLUG

27409-31HA0

$20.63

33

.PLUG

27409-31HB0

$36.17

34

.CASE, MOTOR This part replaces 27421-31HA1.

27421-31HA2

$882.28

35

..O RING

27406-31HC0

$18.85

36

.SHIM SET

27445-31HA0

$193.08

37

.CASE, FR DIFFERENTIAL

27451-31HA0

$248.65

38

.COVER, BUSH, FR DIFFERENTIAL

27460-31HA0

$278.93

39

.CAM DIFFLOCK

27911-31HA0

Unavailable

40

.SHAFT, DIFFLOCK FORK

27913-31HA0

Unavailable

41

.SHAFT, SCREW

27921-31HA0

Unavailable

42

.FORK, FRONT DIFFERENTIAL

27940-31HA0

$72.38

43

.FORK, DIFFLOCK

27950-31HA0

$75.27

44

CLAMP (L:65) This part replaces 09404-08418.

09404-08421

$2.07

45

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$18.50

46

BOLT (10X90)

09103-10061

$6.43

47

BOLT (10X110)

09103-10148

$6.94

48

CLIP

09401-08411

$1.78

49

CLAMP (L:125)

09407-14403

$2.26

50

CLAMP (L:125)

09407-14403

$2.26

51

NUT

09159-10115

$3.55

52

CLAMP

09402-80501

$13.53
