Description

Price

1

HANDLEBAR This part replaces 56111-31G20.

56111-31G40

$99.17

2

CABLE ASSY, THROTTLE This part replaces 58300-31G20.

58300-31G21

$33.62

3

GUIDE, THROTTLE CABLE

58626-31G20

$9.82

4

GUIDE, CABLE

58620-31G20

Unavailable

5

CLAMP (L:165)

09407-18402

$2.19

6

CLAMP (L:125)

09407-14403

$2.26

7

CABLE,PARKING B This part replaces 58810-31G30.

58810-31G31

$59.23

8

SPRING

09440-08042

$2.92

9

PIN

09209-13006

$5.24

10

NUT

09150-06015

$3.56

11

GUIDE, PARKING CABLE

58620-31G10

$15.80

12

SCREW

03541-0616B

$2.59

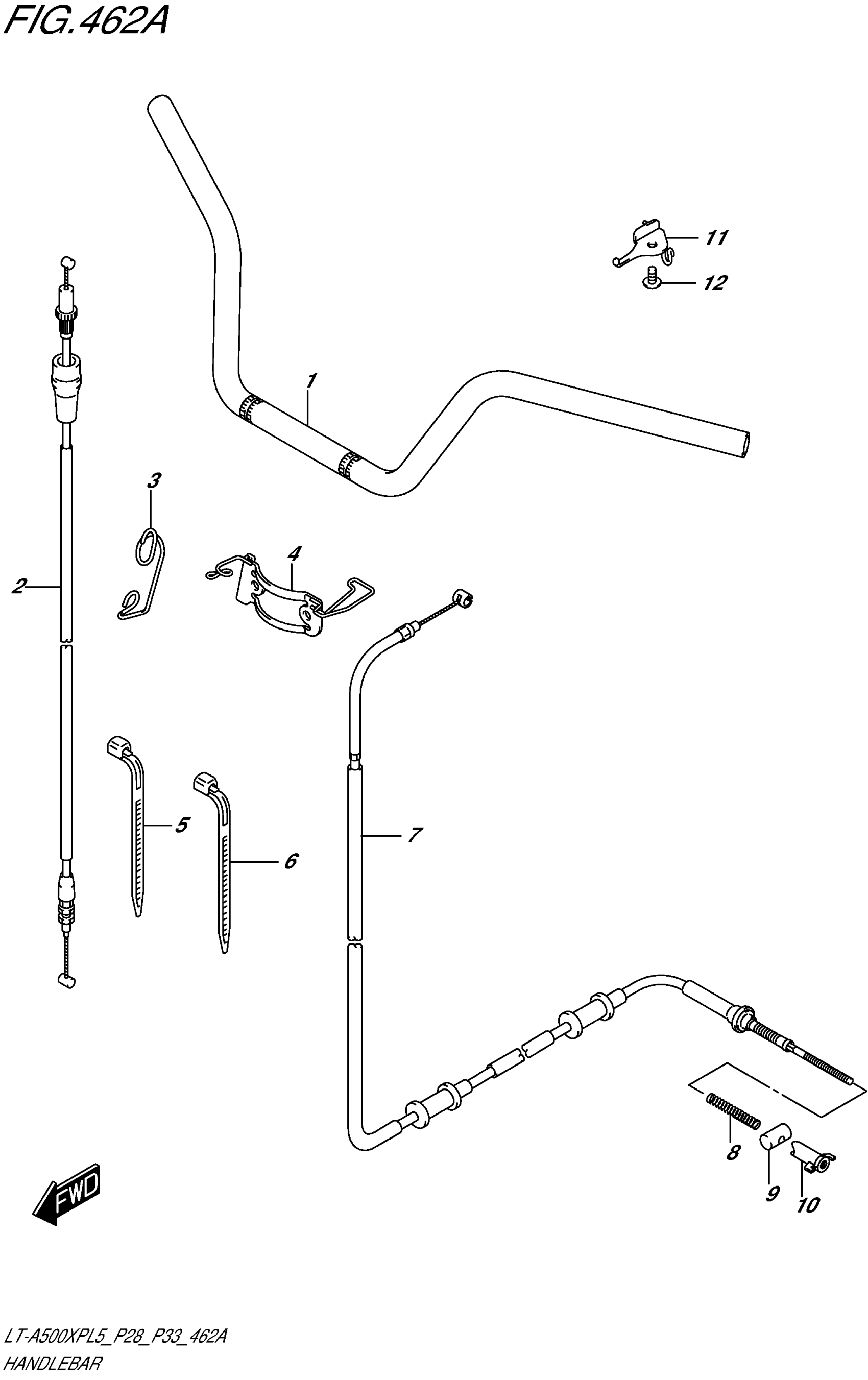

Suzuki LT-A500XPL5 (2015) HANDLEBAR Diagram
