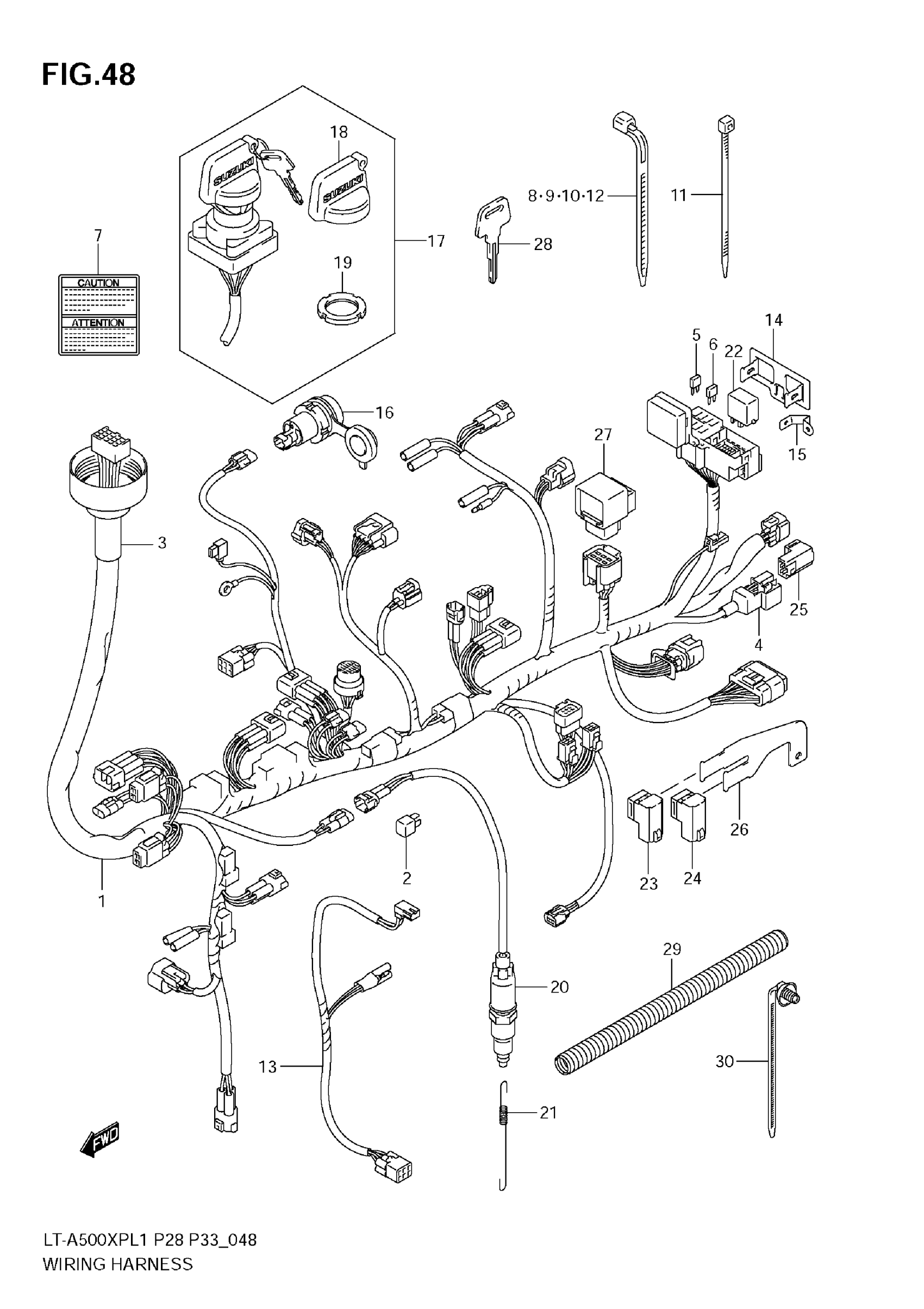

Suzuki LT-A500XPL1 (2011) WIRING HARNESS (LT-A500XPZ L1 E28) Diagram

#

Description
Price

1

HARNESS, WIRING This part replaces 36610-31H31.

36610-31H34

$712.32

2

RECTIFIER

32800-16A00

$22.07

3

COVER, SPE

36618-31G00

Unavailable

4

COVER, CON

36618-31G10

$10.50

5

FUSE (10A)

09481-10501

$2.14

6

FUSE (15A)

09481-15501

$2.14

7

LABEL, POWER SOURCE TERMINAL

38852-03G20

Unavailable

8

CLAMP (L:95)

09407-11401

$2.87

9

CLAMP (L:125)

09407-14403

$2.31

10

CLAMP (L:235)

09407-25401

$4.33

11

CLAMP (L:145)

09407-14407

$2.84

12

CLAMP (L:190)

09407-19401

$3.32

13

WIRE, FRONT BRAKE SW LEAD

36855-38F10

Unavailable

14

BRACKET, FUSE

36744-31G00

Unavailable

15

BRACKET, FUSE

36744-31G10

Unavailable

16

TERMINAL,POWER SOURCE (12V,12 | 12V,12W

38850-03G10

$17.03

17

SWITCH ASSY,IGNITION This part replaces 37110-38F00.

37110-38F01

$78.26

18

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.77

19

.NUT,IGNITION SWITCH

37112-24500

$12.60

20

SWITCH ASSY,STOP LAMP

37740-38F01

$129.47

21

SPRING

09443-06080

$6.00

22

RELAY,NEUTRAL START

38730-09F00

$44.54

23

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$36.47

24

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$36.47

25

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$36.47

26

BRACKET, RELAY

38741-31G20

Unavailable

27

RELAY ASSY, DRIVE

38750-31G00

$116.07

28

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$7.71

28

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$7.71

29

GUIDE, WIRING HARNESS

36619-31G00

$20.42

30

CLAMP (L:154)

09407-17403

$4.79
