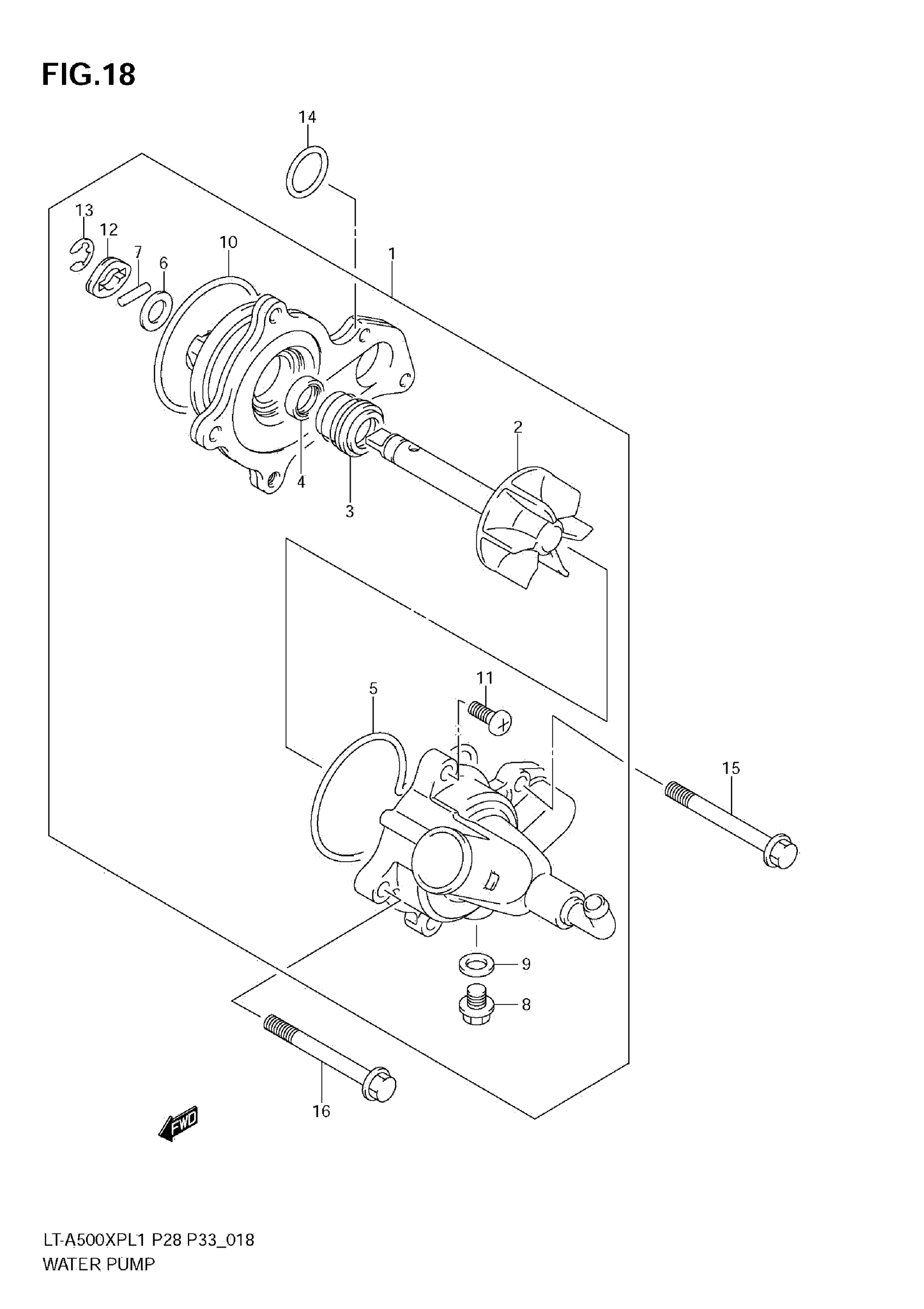

Suzuki LT-A500XPL1 (2011) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY, WATER This part replaces 17400-11H10.

17400-11H21

$170.94

2

IMPELLER

17491-11H00

$56.45

3

SEAL

17470-02F01

$44.50

4

.SEAL,OIL (10X21X5)

17461-48G00

$13.23

5

.O RING This part replaces 17418-11H00.

17418-11H01

$13.07

6

WASHER

17432-07G00

$2.60

7

PIN

17482-03G00

$2.63

8

.BOLT,DRAIN

17415-20920

$7.38

9

GASKET (8.2X14X1)

09168-08016

$1.65

10

.O-RING

17435-33400

$15.29

11

SCREW

02112-0616A

$1.49

12

CAP

17432-11H00

Unavailable

13

.E-RING

08332-1108A

$1.78

14

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65

15

BOLT

01547-0630A

$2.32

16

BOLT

01547-0645A

$2.42
