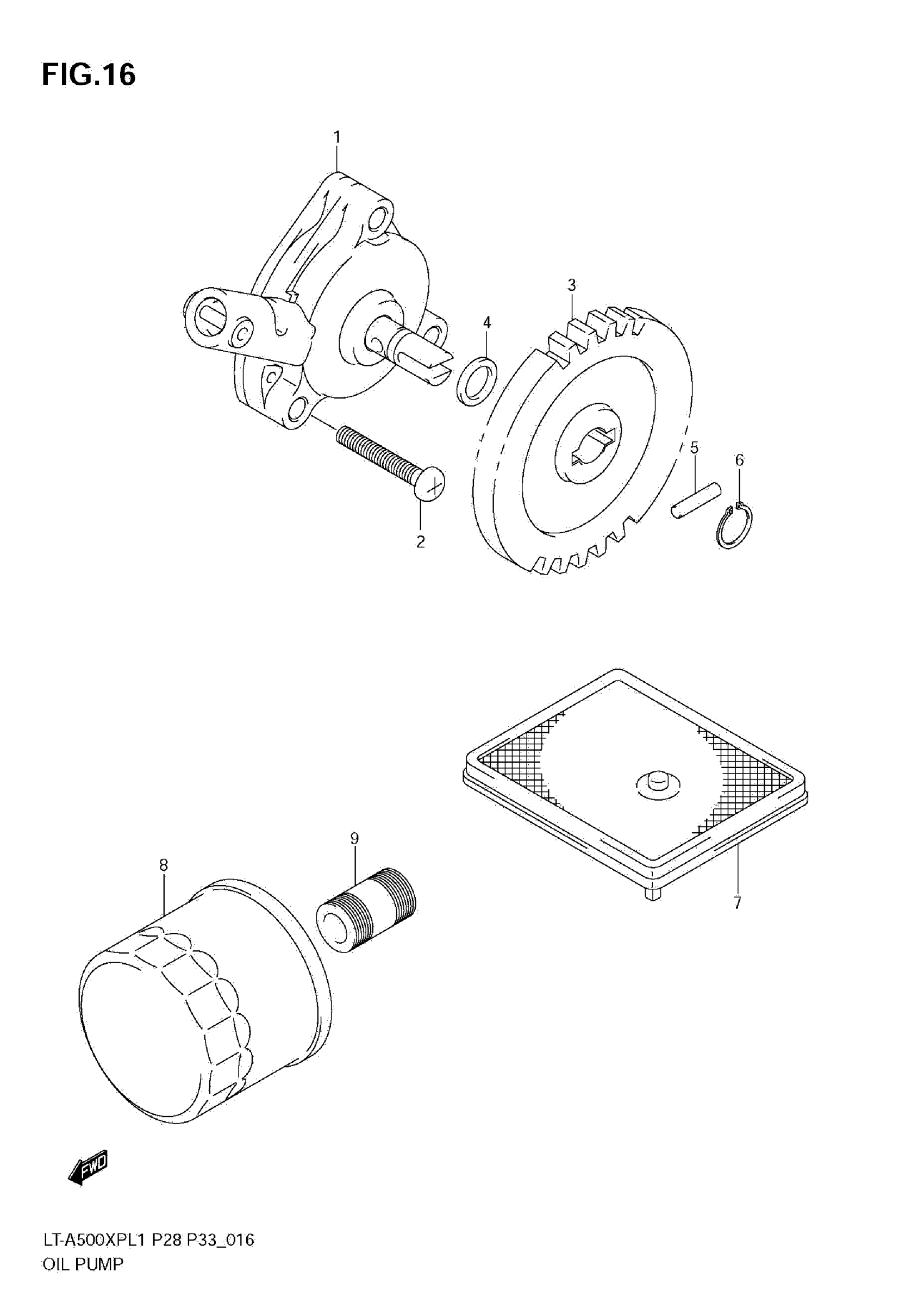

Suzuki LT-A500XPL1 (2011) OIL PUMP Diagram

#

Description

Price

1

PUMP ASSY, ENG OIL

16400-11H00

$182.33

2

SCREW (6X30)

09125-06119

Unavailable

3

GEAR, OIL PUMP DRIVEN

16331-31H00

$48.77

4

SHIM (10X18X0.5)

09181-10158

$1.97

5

PIN

09261-04009

$1.56

6

CIRCLIP This part replaces 08331-3110A.

08331-31109

$1.78

7

STRAINER,ENG OIL This part replaces 16520-32E00.

16520-32E01

$13.10

8

FILTER, ENGINE OIL This part replaces 16510-03G00-X07.

16510-07J00

$13.10

9

UNION,OIL STAND

16591-06B01

$7.05
